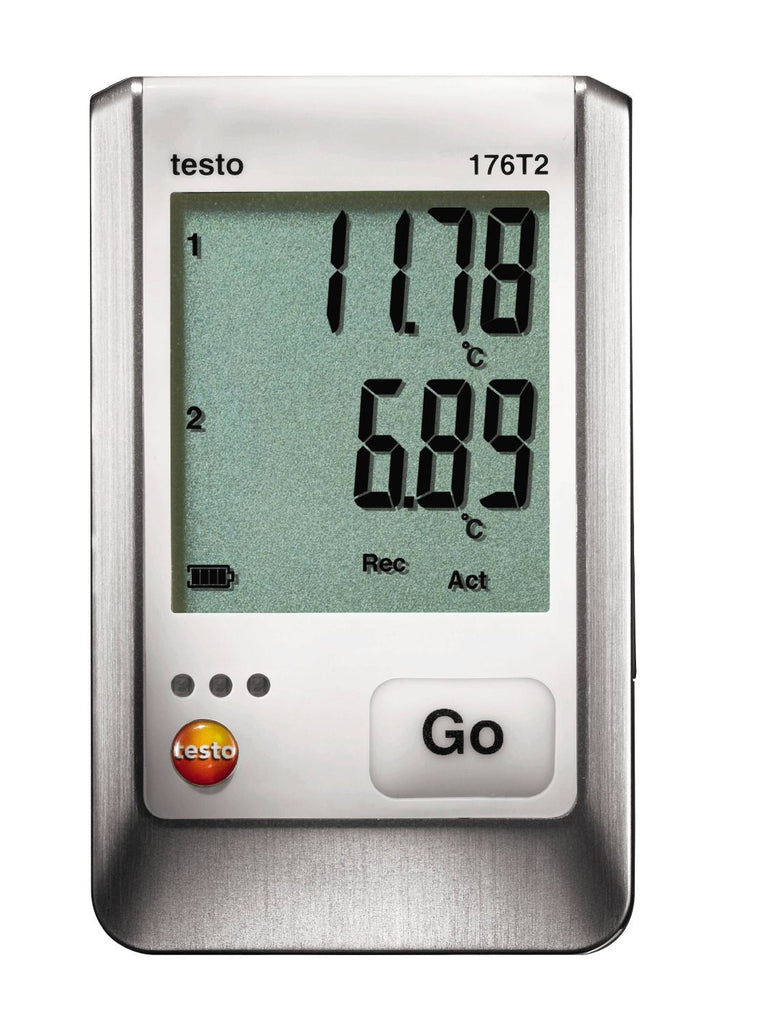

Testo 176 T2 Two Channel Temperature Data Logger with Pt 100 Sensor - 0572 1762

DOWNLOAD BROCHURE

When highly accurate dual temperature measurements under extreme conditions are required, the Testo 176 T2 temperature data logger is the right choice. The data logger can accommodate two Pt100 probes of your choice (a range of probes compatible with the Testo176 T2 can be found in the probes section). It is therefore possible to safely store temperature values from different measuring locations and, if required, compare them on site on the logger display.

The Testo 176 T2 data logger is able to precisely document the temperature over a longer period of time. It can store up to 2 million readings. Its battery life of up to 8 years also makes it practical for long-term temperature monitoring.

The metal housing is resistant to extreme mechanical influences and hard impacts, making the data logger suitable for use in industrial surroundings. The data logger can therefore be used for long-term measurements, even in extreme conditions. The temperature data logger is also completely water and dust-proof in compliance with protection class IP 68. The free ComSoft Basic software allows fast programming of the data logger and easy data analysis.

Like all Testo data loggers for use in the food sector, the Testo 176 T2 is tested by the ATP testing section of the TÜV Süd according to DIN EN 12830.

Please Note: This product does not include a probe. A range of probes can be found below.

Available Probes (purchase separately):

• Penetration probe Pt100 with ribbon cable - 0572 7001
• Efficient, robust air probe, Pt100 - 0609 1773
• Robust, waterproof surface temperature probe (Pt100) - 0609 1973
• Glass-coated laboratory probe (Pt100 temperature sensor) for temperature measurements in corrosive media - 0609 7072

FEATURES AND CAPABILITIES

• 2-channel temperature logger
• Highly accurate measurement
• Large data memory for 2 million readings with high data security
• Large, clear and easy to read display
• Up to 8 years battery life
• Data transfer via USB cable or SD card (optional)
• IP65 protection class

WHAT'S INCLUDED

• Testo 176 T2 Temperature Data Logger
• Batteries
• USB cable
• Wall holder
• Lock
• Instruction manual
• Calibration conformity certificate

SPECIFICATIONS

• Measuring range: -100 to +400 °C (Pt 100)
• Accuracy:
• ±0.2 °C (-100 to +200 °C) ±1 Digit
• ±0.3 °C (+200.1 to +400 °C) ±1 Digit
• Measuring rate: 1 s to 24 h; 2 s to 24 h (online measurement)
• Channels: 2 external
• Connectable probes: 2 x Pt100 temperature probe
• Memory: 2 million measuring values
• Interface: mini USB, SD card slot
• Operating temperature: -35 to +70 °C
• Storage temperature: -40 to +85 °C
• Battery type: 1 x Lithium (TL-5903)
• Battery life: 8 years (15 min. meas. rate, +25 °C)
• Protection class: IP68
