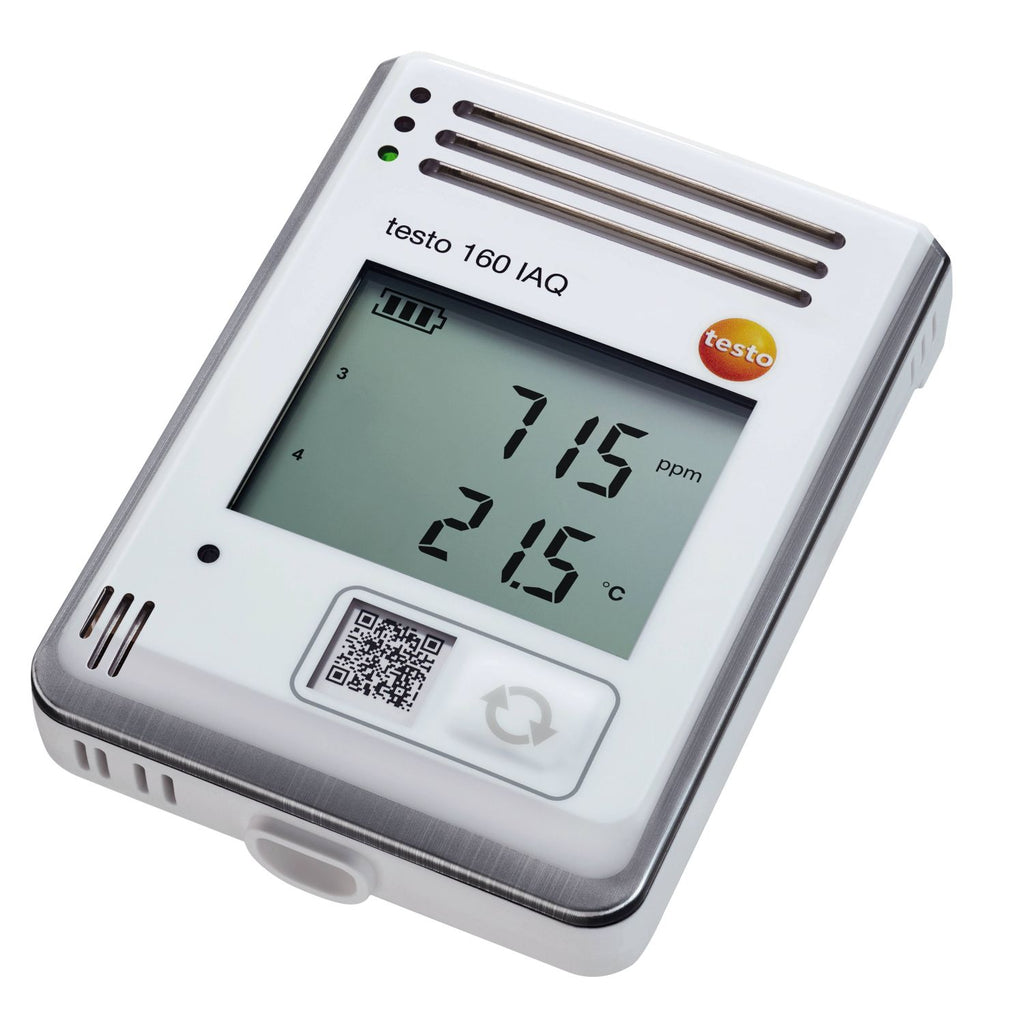

Testo 160 IAQ Wifi IAQ Data Logger - 0572 2014

Testo

0572 2014

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

The monitoring system testo 160 monitors ambient conditions in display cases, exhibition rooms and depots. The loggers transfer measurement values by wireless LAN to the online store (Testo Cloud).

If there are a lot of people in a room, the air quality deteriorates. Reliable monitoring is particularly important because indoor air quality is linked to our well-being. The WiFi data logger testo 160 IAQ is ideal for monitoring indoor air quality in facility management.

Indoor air quality has a huge influence on people's health and well-being. Stale indoor air can lead to tiredness, loss of concentration and discomfort. Reliable monitoring of indoor air quality with the WiFi data logger testo 160 IAQ. The data logger can for example be used in schools, nursery schools, conference rooms, open-plan offices, auditoriums or museums – in short: in rooms where a lot of people gather.

FEATURES AND CAPABILITIES

  • Ideal for monitoring indoor air quality (IAQ)
  • Blends in perfectly with the surroundings thanks to an optional, customizable deco-cover
  • Simple to install, integrate and operate – particularly user-friendly with air quality displayed in the form of a traffic light system
  • Perfectly networked: data storage in the Testo Cloud, real-time alarm via email or SMS (optional in conjunction with an Advanced licence)

Monitoring temperature, humidity, CO2 and atmospheric pressure with the WiFi data logger testo 160 IAQ
The easy-to-use WiFi data logger testo 160 IAQ is ideal for monitoring indoor air quality. Thanks to its sensors for temperature, humidity, CO2 and atmospheric pressure, it accurately determines the ambient conditions in each room.

Particularly user friendly: Coloured LEDs on the data logger indicate the air quality using the traffic light principle. The CO2 limit values can be determined individually. The LEDs are switched off in battery mode in order to ensure longer battery lives.

The following values can be read off the logger display:

  • With mains operation: CO2 concentration and alternately temperature and humidity. The atmospheric pressure values are not shown on the logger display, however, they are available in the Cloud
  • In battery mode: CO2 concentration and temperature. The data for humidity is not displayed – because that ensures longer battery lives


All measurement data are stored by the data logger directly in the Testo Cloud via your WLAN. This means you can also document and analyze your measurement data over a longer period of time.

If limit values are exceeded, you will be notified immediately by e-mail or (optionally) SMS thanks to the alarm function. You can access all measuring values and analysis functions any time and anywhere with your internet-capable smartphone, tablet or PC.


The WiFi data logger testo 160 IAQ – adaptable and inconspicuous
The small dimensions of the data logger testo 160 IAQ (82 x 117 x 32 mm) and its simple design enable it to be easily positioned in any room. Especially for museums and archives, it is particularly important that the focus is always on your exhibits. In conjunction with the optionally available customizable deco-cover (see accessories), the WiFi data logger can be perfectly adapted to blend in with its surroundings and therefore remains particularly inconspicuous.


Perfectly networked: with the WiFi data logger testo 160 IAQ and the Testo Cloud
You must first register at www.saveris.net to have access to the Testo Cloud. Installing the system is simple and can be carried out via a browser.

Depending on the desired range of functions, you have a choice between the free Basic and more extensive Advanced functionality when using the Testo Cloud. You can use the Advanced functionality, for example, to create up to 10 users per account or set an SMS alarm if limit values are exceeded.

WHAT'S INCLUDED?

  • WiFi data logger testo 160 IAQ
  • Including free Cloud access (Basic functionality)
  • USB mains unit
  • USB interface cable
  • Wall bracket, including tool and adhesive strip
  • QR code sticker
  • Calibration protocol
  • Short instructions

SPECIFICATIONS

  WiFi
data logger testo
160 TH
WiFi
data logger testo
160 THE
WiFi
data logger testo
160 THL
WiFi
air quality logger
testo 160 IAQ
WiFi
data logger testo
160 E
Temperature measurement
Measuring range -10 to +50 °C 0 to +50 °C see external
probe
Accuracy ± 0.5 °C
Resolution 0.1 °C
Humidity measurement
Measuring range 0 to 100 %RH (non-condensing) see external
probe
Accuracy ±2 %RH at +25 °C and 20 to 80 %RH
±3 %RH at +25 °C and < 20 %RH and > 80 %RH
±1 %RH hysteresis
±1 %RH / year drift
Resolution 0.1% RH
Lux measurement
Measuring range   see external
probe
0 to 20,000 lux   see external
probe
Accuracy DIN 5032-7
Class C-compliant.
±3 lux or 3 % of m.v.
(refers to reference
DIN 5032-7 Class L)
Resolution 0.1 lux
UV measurement
Measuring range   see external
probe
0 to 10,000 mW/m2   see external
probe
Accuracy ±5 mW/m2 or
±5 % of m.v.
(refers to external
reference)
Resolution 0.1 mW/m2
CO2 measurement
Measuring range       0 to 5,000 ppm
Accuracy ±(50 ppm + 3 %
of m.v.) at +25 °C
Without external
power supply: ±(100
ppm + 3 % of m.v.)
at +25 °C
Resolution 1 ppm
Pressure measurement
Measuring range       600 to 1100 mbar
Accuracy ±3 mbar
at +22 °C
Resolution 1 mbar
WLAN
Standard 802.11 b/g/n
Security WPA2 Enterprise: EAP-TLS, EAP-TTLS-TLS, EAP-TTLS-MSCHAPv2, EAP-TTLS-PSK, EAP-PEAP0-TLS,
EAP-PEAP0-MSCHAPv2, EAP-PEAP0-PSK, EAP-PEAP1-TLS, EAP-PEAP1-MSCHAPv2, EAP-PEAP1-PSK, WPA
Personal, WPA2 (AES), WPA (TKIP), WEP
General
Operating temperature -10 to +50 °C 0 to +50 °C -10 to +50 °C
Storage temperature  -20 to +50 °C 0 to +50 °C -20 to +50 °C
Protection class IP20
Measuring cycle Dependent on Cloud licence / Basic: 15 min to 24 h / Advanced: 1 min to 24 h
testo 160 IAQ – Advanced in battery operation: 5 mins to 24 h
Communication cycle Dependent on Cloud licence / Basic: 15 min to 24 h / Advanced: 1 min to 24 h
Memory 32,000 readings (sum of all channels)
Voltage supply (alternatively
mains unit via USB connection)
4 x AAA alkaline manganese batteries 1.5 V 4 x AA alkaline manganese batteries
1.5 V
4 x AAA alkaline
manganese batteries
1.5 V
Battery life
(depending on the measuring
and communication cycle
vis-a-vis the Cloud)
1.5 years 1 years 1.5 years
Dimensions 76 x 64 x 22 mm 76 x 64 x 22 mm 92 x 64 x 22 mm  117 x 82 x 32 mm 76 x 64 x 22 mm
Weight
(including batteries)
94 g 94 g 113 g 269 g 96 g
