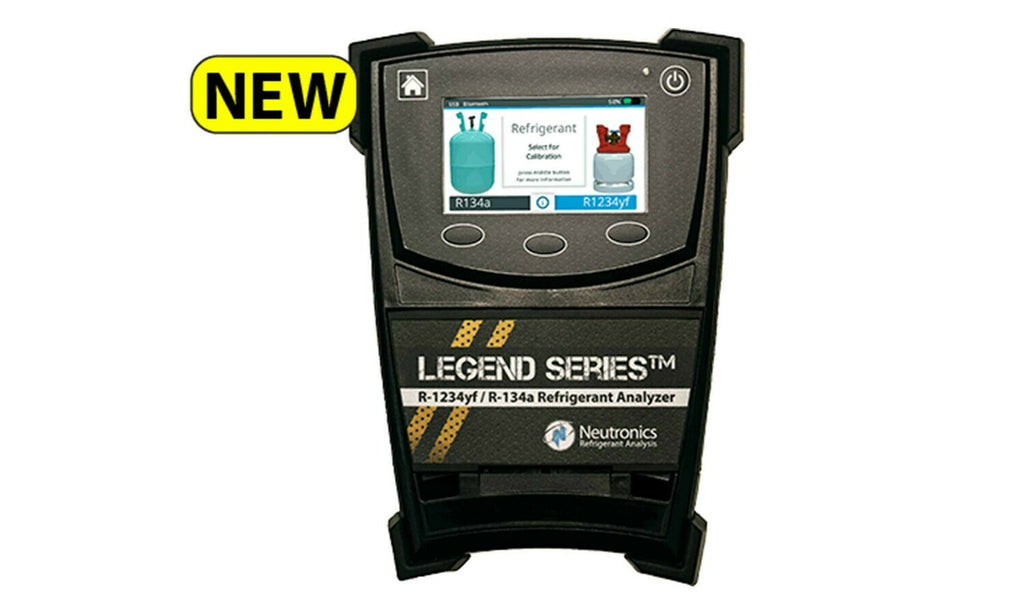

Neutronics Legend Refrigerant Analyzer Base Unit 7-08-1234-33-0

7-08-1234-33-0 Neutronics Refrigerant Analyzer Legend Series - Base Unit (does not include a printer or Bluetooth)

DOWNLOAD BROCHURE

Neutronics Refrigerant Analysis proudly presents a refrigerant identifier for the past, present, and future. Service R-12, R-134a, and R-1234yf vehicles with one tool.

The award-winning Legend Series™ R-1234yf/R-134a Refrigerant Analyzer provides the ability to service R-12, R-134a, and R-1234yf vehicles all with one tool.

The Legend ID™ is a worldwide ready tool to meet the service needs of HFO-1234yf-equipped vehicles. It is certified to the SAE J2912 standard and connects directly to SAE J2843 and J3030 AC Service machines that have an external analyzer USB port.

FEATURES AND BENEFITS

• Quickly and accurately determines refrigerant purity
• Enhanced oil resistance with the user-replaceable oil restrictor
• Displays % air in pure R-1234yf & R-134a
• Displays percentage purity of R-1234yf, R-134a, R-12, R-22 and Hydrocarbons
• Capable of testing R-12 with optional R-12 hose accessory
• Easily prints test results with optional printer
• It uses standard 2.25” (57 mm) thermal paper

SPECIFICATIONS

WHAT'S INCLUDED

• Neutronics Refrigerant Analyzer 7-08-1234-33-0 Base Unit
• Couplers for both R-134a and R-1234yf
• (2) R-1234yf sample hoses
• (2) R-134a sample hoses
• Sample hose extensions
• AC Power Supply
• Tank adapters for both R-134a and R-1234yf
• Internal rechargeable battery
• Rugged, portable, storage case

The Legend Series R-1234yf/R-134a Refrigerant Analyzer has the following options:

• Legend 7-08-1234-33-0 Base Unit - (Does not include Bluetooth & Printer)
• Legend 7-08-1234-30-0 with Built-in Printer
• Legend 7-08-1234-31-0 with Bluetooth
• Legend 7-08-1234-32-0 with Built-in Printer and Bluetooth
