Mastercool Spartan 4-way Smart Manifold Kit 99947-BT-2

SKU: 99947-BT-2

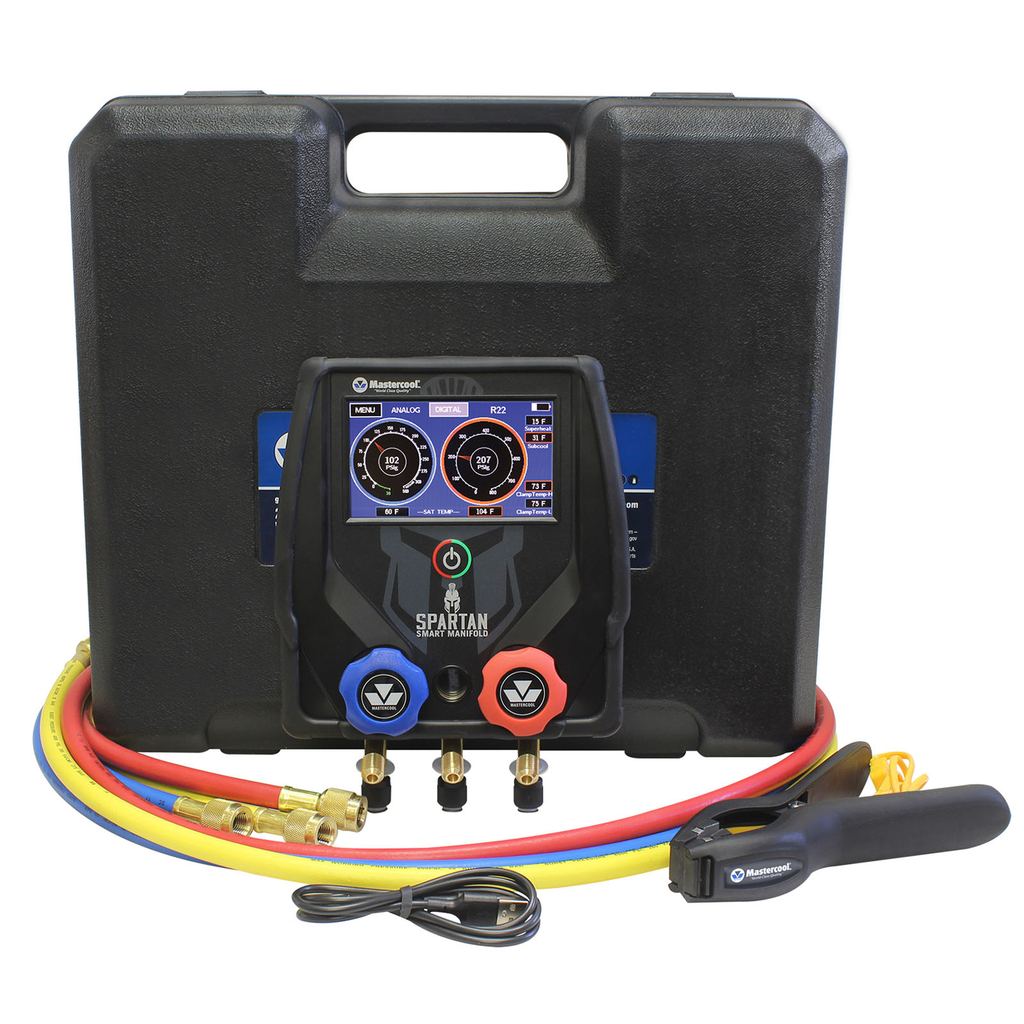

Mastercool Spartan 4-way Smart Manifold Kit 99947-BT-2

$1,188.80

GST included.

Shipping Ask about this product

ADD TO WISHLIST

DESCRIPTION

99947-BT-2 Mastercool Spartan 4-way Smart Manifold Kit

DOWNLOAD INSTRUCTION

DOWNLOAD BROCHURE

Introducing Mastercool's latest SPARTAN series smart manifold with Bluetooth® wireless technology. This advanced manifold features a 4.3” color touchscreen LCD, allowing for easy navigation through various screens and options with a simple slide of the finger. With a high-quality built-in vacuum sensor and precise 1 micron accuracy, no extra equipment is necessary to effectively diagnose and service your A/C system.

High-accuracy Class 1.0 gauge delivers precise pressure readings.
4.3” color touchscreen makes navigation fast and easy with just a swipe.
Built-in premium vacuum sensor measures with 1-micron resolution - no extra tools needed.
Real-time display of pressure, vacuum, and temperature, plus automatic superheat and subcool calculations.
Preloaded with over 60 refrigerants for quick and convenient setup
Bluetooth enabled - connect to the Mastercool Connect app for mobile viewing and control
Low battery alert appears on-screen when charging is needed.
Data logging capability stores up to 36 hours of readings directly on the device.
Optional premium clamp supports K-type temperature sensors for added flexibility.
Auto shut-off after 30 minutes of inactivity to save battery
Leak test mode tracks pressure changes to detect system leaks
Switchable display lets you choose between digital and analog views
Easy calibration ensures accurate readings every time

WHAT'S INCLUDED

Mastercool Spartan 4-way Smart Manifold Kit 99947-BT-2
72” high-pressure hoses with standard fittings
black vacuum hose
(2) clamps packaged in a plastic case

SPECIFICATIONS

Gauge	Class 1.0
Pressure Display	psi, bar, MPa, kg/cm2, kPa
Temperature Display	˚F or ˚C
Deep Vacuum Display	micron, mBar, kPa, Pa, Torr, mTorr, mmHg
Sensing Resolution:	1 psi (.07 bar, .007 MPa, .07 kg/cm2)
Sensing Accuracy	±1 psi or 1% of reading (whichever is greater)
Working Pressure	0 to 725 psi (50 bar, 5 MPa, 52 kg/cm2)
Proof Pressure	1000 psi (70 bar, 7 MPa, 70 kg/cm2) (Tolerable pressure without internal damage)
Refrigerant Temperature Range	-40 to 200˚F (-40 to 93˚C)
Operating Temperature	32 to 122˚F (0 to 45˚C)
Storage Temperature	10 to 120˚F (-12 to 49˚C)
Vacuum Sensor	Range 20,000 to 1 micron
Battery Life	30-36 hours normal use (25-30 hours with Bluetooth enabled)
Auto-Off	After 30 minutes, sleep mode 4 minutes
Data Logging	Up to 36 hours
Connections	1/4” m-flare and 3/8” m-fl (vacuum hose connection (4 way only)
Power	Li-Ion rechargeable battery (charge through supplied USB Type-C connector)
