Product Description

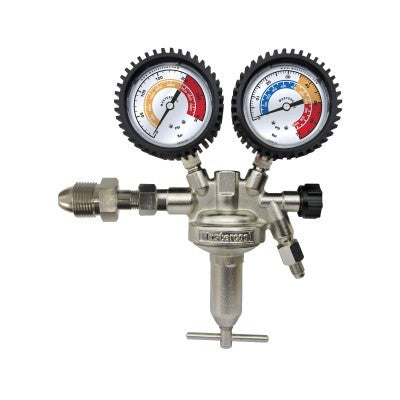

Mastercool’s new nitrogen regulator gauge is specifically designed to meet the specifications of HVAC/R and automotive A/C systems. This single stage nitrogen regulator is used to test systems for leaks when they do not contain refrigerant.

• 1/4” SAE flare outlet port, with control valve, to keep pressure on the regulator at all times
• T-Handle for ease of pressure adjustment
• 63 mm (2 1/2”) gauges with guards
• High pressure gauge 4400 psig (300 bar)
• Low pressure gauge 1000 psig (70 bar)

53004: AS2473.2 (Australia)
Outlet Connection: 1⁄4 FL-M outlet connection
