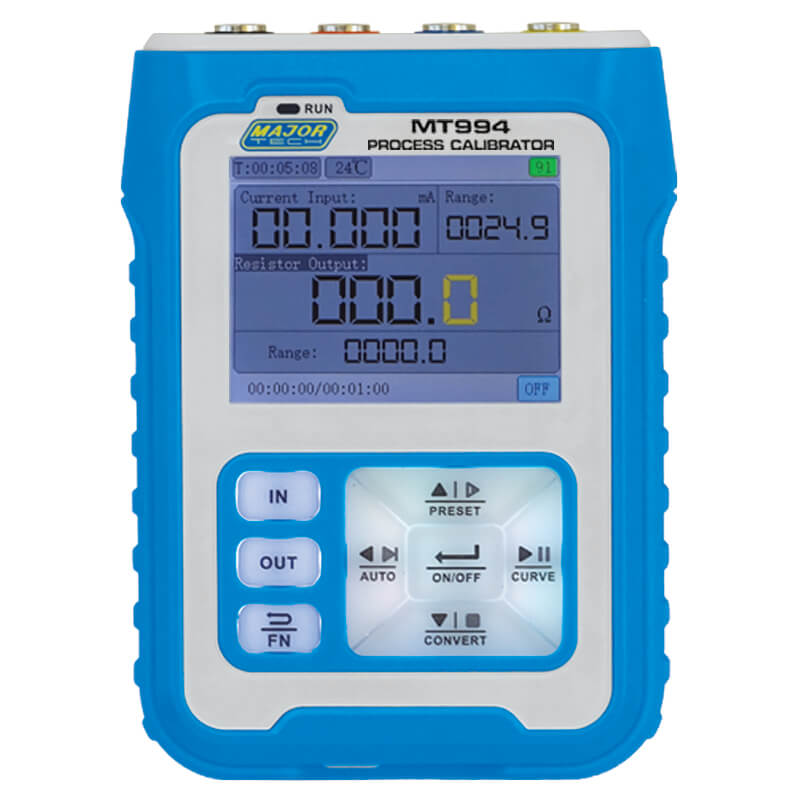

MT994 Major Tech Multifunction Process Calibrator

DOWNLOAD DATASHEET

The Major Tech MT994 is a versatile Process calibrator and signal generator designed for seamless sourcing and measurement of various process parameters, catering to the testing needs of diverse process devices. With two independent channels, it enables simultaneous measurement, sourcing, and viewing of volts, mV, mA, RTDs, thermocouples, frequency, and resistance for comprehensive testing of sensors and transmitters. The device is tailored for debugging industrial PLCs, process instrumentation, and electric or pneumatic valves. Its user-friendly interface ensures ease of use, featuring extended standby time and high precision.

Experience enhanced functionality with customizable output, allowing users to set upper and lower limits. The PWM output permits independent adjustment of frequency and duty cycle, with a real-time curve for monitoring voltage and current changes. The adjustable button backlight and high-definition TFT colour LCD screen enhance user convenience day or night. Designed for portability, the MT994 is miniature, fitting easily into a bag or car for on-the-go usage. Elevate your testing capabilities with this compact and powerful Process calibrator and signal generator.

Real-time Curve: The changing trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set
Built-in lithium rechargeable 3000mAh battery power supply with a standby time of around 26 hours; the using time varies, based on the usage (It can be 8-10 hours with 20mA continuous output)
The high-definition 240*320 TFT colour LCD screen ensures readings are easily viewed
It can also automatically adjust the display curve within the range of maximum and minimum values in a certain period
In addition, there is XMT Passive Current Signal, plus RTD simulation with Pt100, cu50 thermal resistance and 10 kinds of thermocouple
Active current output: range: 0-24mA
Maximum load: 750Ω
Passive current output: range: 0-24 mA
Voltage output: range: 0-24 V
External power supply up to 30V
Current input measurement: range: 0-24 mA Input impedance:100Ω
Voltage input measurement: range: 0-30 V Input impedance: 2MΩ
PWM output (frequency): Range: 0-9999Hz
Maximum current 30mA
Drive current: 24mA
24V voltage output

WHAT'S INCLUDED

Major Tech Multifunction Process Calibrator MT994
Alligator Test Clips
Charger and Charging Cable
Instruction Manual

SPECIFICATIONS

Function	Range	Accuracy
Current	0 - 24mA	± (0.02% + 0.003)
Voltage	0 - 24V	± (0.02% + 0.003)
Passive	0 - 24mA	± (0.02% + 0.003)
24V Loop	0 - 24mA	± (0.1% + 0.005)
Milli-voltage	-10 to 100mV	± (0.03% + 0.03)
Frequency Output	0 - 9999Hz	± (2%)
Thermocouple (TC-S)	0 - 1760°C	± (0.2% + 1)
Thermocouple (TC-B)	0 - 1810°C	± (0.5% + 1)
Thermocouple (TC-E)	0 - 990°C	± (0.2% + 1)
Thermocouple (TC-K)	0 - 1320°C	± (0.2% + 1)
Thermocouple (TC-R)	0 - 1760°C	± (0.3% + 1)
Thermocouple (TC-J)	0 - 1190°C	± (0.3% + 1)
Thermocouple (TC-T)	0 - 390°C	± (0.2% + 1)
Thermocouple (TC-N)	0 - 1290°C	± (0.2% + 1)
Thermocouple (WRe3/25)	0 - 2320°C	± (0.2% + 1)
Thermocouple (WRe5/26)	0 - 2320°C	± (0.2% + 1)
PT100	-200 - 650°C	± (0.5% + 1)
CU50	-20 - 150°C	± (0.5% + 1)
Resistance	0 - 390Ω	± (0.2% + 1)
