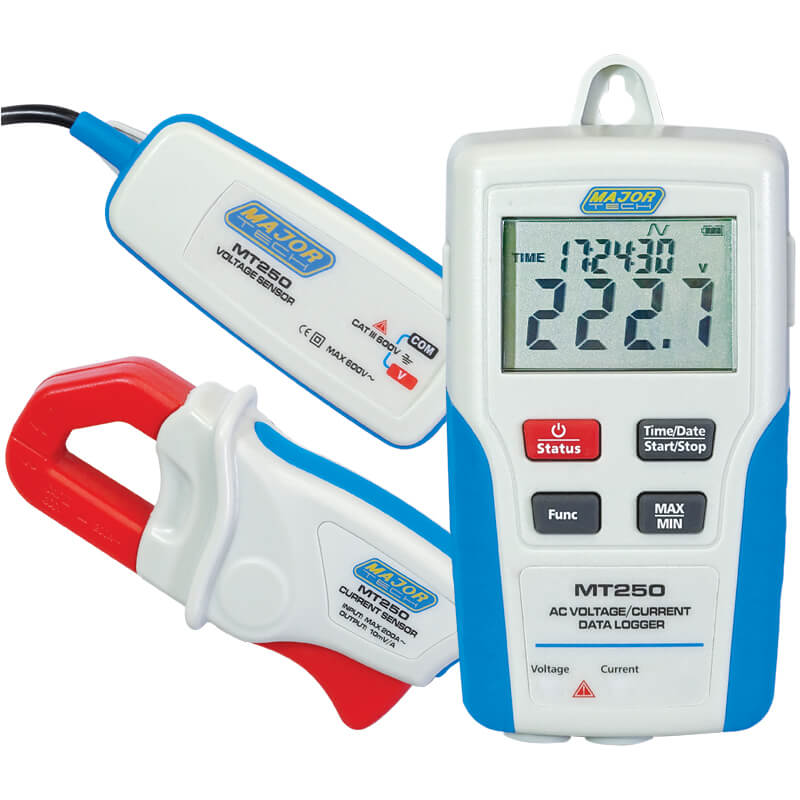

The Major Tech MT250 AC Voltage and Current Data Logger is user-friendly with USB programming, LCD display, and 1-second sampling. It offers precision with single-point calibration, factory-calibrated current and voltage, and storage for 50,022 data points per channel.
The magnetic backplate ensures the meter can easily be attached to metal surfaces. Enjoy date and time stamps, graphical and printed text information, and choose between battery or AC power supply. Perfect for electronics, energy management, or industrial maintenance, where precision meets simplicity.
| Function | Range | Accuracy |
| Voltage (RMS) | 6 - 6000.0V | ±(2% ±1V) |
| Current (RMS) | 1A - 200A | - 100mA ±(2.0% ± 0.9%) f.s. +accuracy of sensor - Trigger 100mA ±(3.5% ± 2.2%) f.s. + accuracy of sensor - Capture PQA 100mA ±(3.0% ± 1.7%) f.s. + accuracy of the sensor |
| Crest Factor | 2.5 or less: RMS (sine) +2% +1%f.s. 95% or less of each range | |
| Allowable Input | 50/60Hz, 10% or more of the range Ch1 | |
| Display Range | 0-105% of each range | |
| Frequency Range | 40 - 1KHz | |
| Wiring Connections | 2 Channel | |
| Measurement & Parameters | Voltage, Current | |
| Sampling Speed | 1 second to 24Hour | |
| Internal Memory | 100,044 points current or voltage, 50,022 points channel current and voltage | |
| PC Communication | USB | |
| Display Update Period | Real time | |
| Power Source AC | External DC9V (special AC Adapter) | |
| Power Source DC | 4 x R6P | |
| Safety Specs | IEC 61010-1 Cat III 300V | |
| Weight | 248g | |
| Dimensions | 114 x 63 x 34mm |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.
