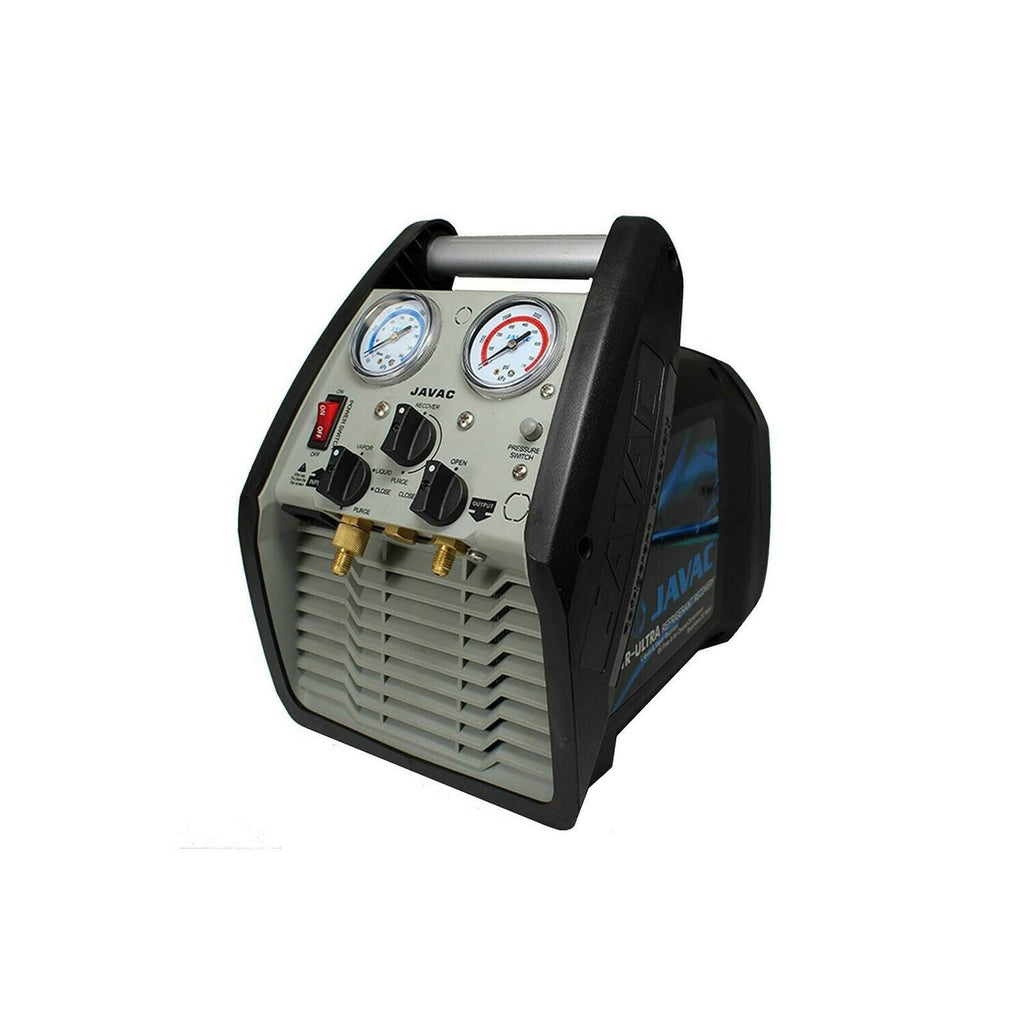

The NEW JAVAC XTR ULTRA is the latest addition to the successful XTR range of Refrigerant Recovery Solutions. With a weight of only 8.5 kgs, the ULTRA is a perfect mid-range Reclaim Solution.
The original XTR was one of the first high-performance recovery units that combined fast recovery with a fan-powered condenser.
The NEW lightweight XTR Ultra has increased the affordability of the XTR range while living up to its reputation as a heavy-duty work horse for the recovery of a wide range of refrigerants available today.
The XTR ULTRA is specifically designed for HVAC-R professionals who require a lightweight recovery option for standard refrigerants including R410A, R22, R404A plus all other non-flammable CFC, HFC and HFO refrigerants.
| Refrigerants | EPA Certified to ARI 740-98 for refrigerants, HFC, HCFC and CFC |
| Safety | Designed to meet UL 1963, AS standards & EU equivalents |
| Power | 220/240V AC/50Hz, 110-115V AC/50Hz |
| Compressor | 3/4 HP oil less, Brushless DC motor |
| Protection | High pressure switch cutoff at 3850 Kpa Compressor protected by Brushless DC drive circuit |
| Pressure | Max low side design pressure 2600 Kpa Max high side design pressure 3800 Kpa |
| Temperature | Operating range 10'C to 40'C |
| Cooling | Fan Direct |
| Connections | 1/4 SAE |
| Case | Injection moulded glass reinforced high impact |
| Size | 320 x 220 x 260 mm (LxWxH) |
| Weight | 8.5 Kg |
| Refrigerant |
Liquid Rate (Kg/Min) (Kg/Hr) |
Vapour Rate (Kg/Min) (Kg/Hr) |
Push/Pull Rate (Kg/Min) (Kg/Hr) |
Residual Trapped Refrigerant (Kg) |
| R22 | 2.30 / 138 | 0.31 / 18.6 | 7.10 / 426 | <0.1 |
| R134-a | 2.00 / 120 | 0.25 / 15 | 5.80 / 348 | <0.1 |
| R410-a | 1.65 / 99 | 0.30 / 18 | 7.00 / 420 | <0.1 |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
