Javac Tek-Mate Refrigerant Leak Detector 705-202-G6
Sold Out
  • SKU: 705-202-G6

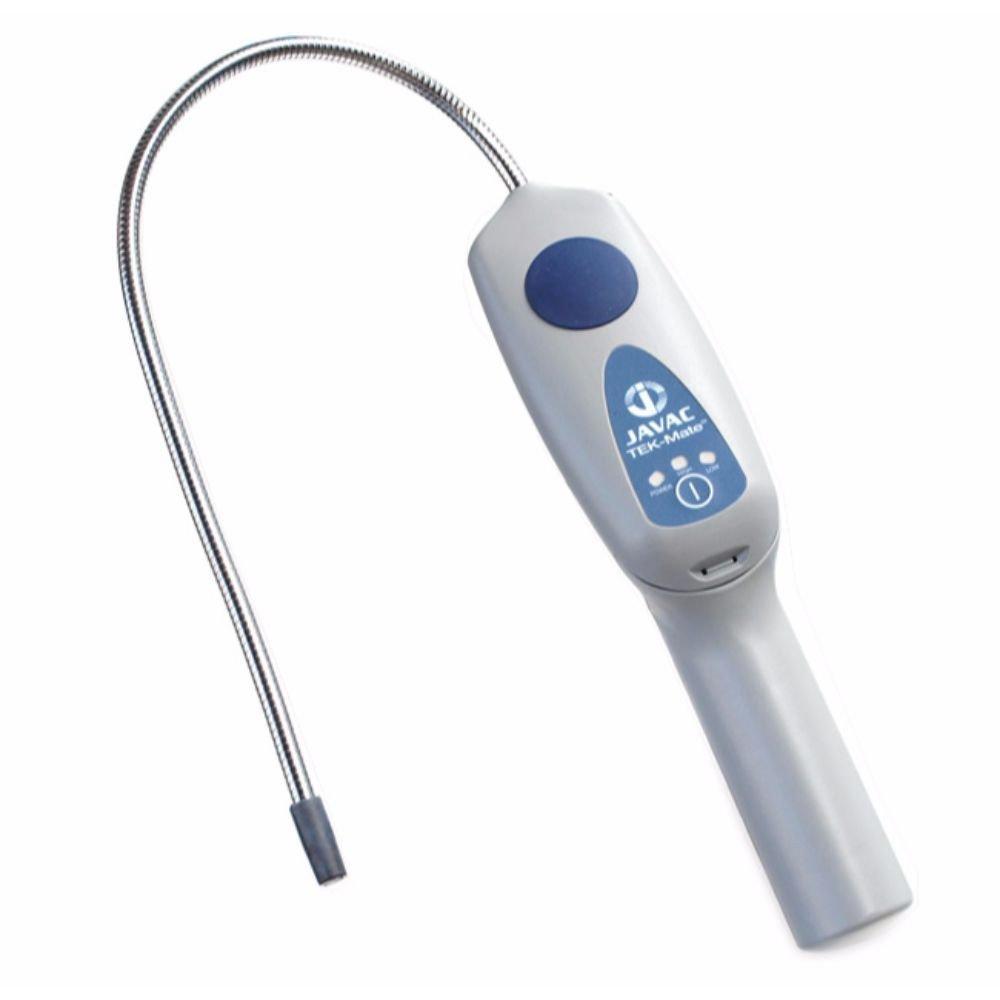

Javac Tek-Mate Refrigerant Leak Detector - 705-202-G6

GST included.

    The Tek-Mate is known in the refrigeration and automotive industry as an extremely reliable and affordable portable leak detector. This unit features a soft-touch operational pad that allows the user to easily control the unit from one central point, including turning the unit on and off; and selecting the High/Low detection level.

    Offering hand-held convenience, the Tek-Mate leak detector boasts proven heated diode sensor technology. The Tek-Mate incorporates an electrochemical sensor consisting of a ceramic substrate, doped with a reactive element, and maintained at high temperature by a built-in heating element.

    When halogen-bearing gas contacts with the hot surface, the chlorine, fluorine or bromine atoms are separated from the molecule and ionized. This causes an electrical current to flow within the ceramic to a collection electrode at the center. Careful selection and application of the ceramic permits the Tek-Mate sensor to provide similar responses to CFCs (such as R11 and R12), HCFCs (such as R22 and R123), HFCs (such as R134a) as well as replacement blends (such as R404a and R410a) so that the operator does not need to determine the refrigerant in use, or remember to set a selector switch.

    Tek-Mate is sensitive to R22 at 2 grams/year and R410A at 5 grams/yr, making it easy to detect a leak of any size.

    The latest version of the Tek-Mate features a soft-touch operational pad, allowing the user to control the unit with only one hand. Switching the unit on or off and selecting detection levels (high/low) is done with a quick press of a button.

    Suggested Applications:

    • Light to medium duty
    • Automotive and refrigeration applications


    • Detects R22, R134a, R404a, R410a, R448a, R507 (AZ-50), R32, HFO1234yf, and all other CFCs, HCFCs, HFCs, and HFOs
    • Heated diode sensor
    • Runs on 2 "D" cell batteries
    • No need for adjustments since the automatic background compensation feature continuously monitors and compensates for changing background "noise."


    • Sensor Technology: Heated diode
    • Sensor Life: 100 hours
    • Sensitivity according to EN14624 (R134a): 2 g/a
    • Minimum Sensitivity: 0.25 oz./year (7 g/a)
    • Leak Indicators: 1 LED; variable intensity audible alarm
    • Power Source: 2 x ‘D’ alkaline batteries
    • Battery Life: 16 hours (approximately)
    • Probe Length: 15 in. (38 cm)
    • Control Panel:
        • Soft Touch: On/Off, Low/High sensitivity
    • Contamination Adjustment: Automatic
    • Operating Temperature: -20 to 50 °C (-4 to 122 °F)
    • Sampling System: Positive displacement pump
    • Certification: EN 14624:2012, CE marking per Safety and EMC


    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
