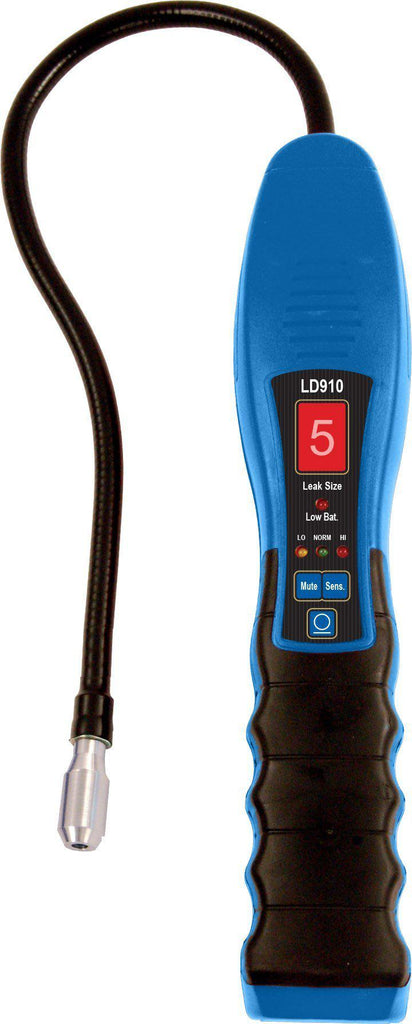

Imperial Combustible Gas Leak Detector - LD-910

Imperial

LD-910

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

Imperial Leak Detectors feature long-life heated sensor technology, designed for high sensitivity. The digital leak size indicator takes the guesswork out of whether or not to repair a small leak. The digital display is independent of the audio alarm and sensitivity level, allowing the precise pinpointing of the leak source.

All models use standard alkaline batteries – rechargeable batteries not required.

The Imperial Combustible Gas Leak Detector LD-910 is highly sensitive to all combustible gases including Methane (natural gas), Propane, Butane, Ethane, Acetylene, Methanol, Acetone and petroleum.

MSHA certified as Intrinsically Safe and suitable for all Hydrocarbon Refrigerants.

Inspect furnaces, gas appliances and gas lines fast and safely. Also use to find leaks in fuel and exhaust systems, verify the integrity of fuel storage containers.

Our unique digital display for leak size takes the guesswork out of whether to repair a small leak now or if it is extremely urgent. The Digital Display is independent of the audio alarm and sensitivity level which allows precise pinpointing of the leak source.

FEATURES AND CAPABILITIES

  • Heated Sensor Technology - Long Life
  • <5ppm Sensitive to Methane
  • Digital Display for leak size
  • Automatic Calibration and resets to ambient
  • Visual LED leak alarm near sensor
  • Audio Mute Mode
  • 3 Sensitivity Selectable Levels
  • Response - Instantaneous
  • Intrinsically Safe Certified
  • 20 hours continuous on battery life

WHAT'S INCLUDED?

  • Refrigerant Leak Detector - LD-910
  • Leak Test Vial - S77702
  • Combustible Sensor - S77700
  • Wand Sensor Cover - S77701
  • Blow Molded Hard Case - S77703
  • 4 x AA 1.5vdc Alkaline Batteries

SPECIFICATIONS

Imperial Leak Detectors
  LD-900 REFRIGERANT GAS LD-910 COMBUSTIBLE GAS LD-920 N2/H2 TRACER GAS
SENSITIVITY 0.05 oz / yr R-134a
0.015 oz / yr R-1234YF
5 ppm Methane  < 5 ppm
SENSOR LIFE > 10 years > 10 years > 10 years
RESPONSE TIME Instantaneous Instantaneous Instantaneous
POWER SUPPLY 4 AA alkaline batteries 4 AA alkaline batteries 4 AA alkaline batteries
BATTERY LIFE 4-6 hours continuous 20 hours continuous 8 hours continuous
WARM UP TIME < 20 seconds < 10 seconds < 20 seconds
PROBE LENGTH 17" (43.8 cm) 17" (43.8 cm) 17" (43.8 cm)
NUMERICAL DISPLAY 7 segment digital display (1 to 9) 7 segment digital display (1 to 9) 7 segment digital display (1 to 9)
WEIGHT 1.5 lbs. (0.68 kg) 1.25 lbs. (0.57 kg) 1.25 lbs. (0.57 kg)
CERTIFICATIONS CE
SAE J2791 (R-134a)
SAE J2913 (R-1234YF)
ASHRAE 173 2012
EN 14624-2012
CE
MSHA Intrinsic Safety
CE
EMC Directive 2014/30/EU
2006.40/EU Article 6, Paragraph 3
WARRANTY 2 years including sensor 2 years including sensor 2 years including sensor


WARRANTY

  • 2 Years from Date of Purchase
  • ​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
