Imperial 600 4-Valve R22 R134A R404A HVAC-R Manifold - 680-CKPSC

600 Series 4-Valve Blue Anodised HVAC-R Manifolds

This Imperial 4-valve model offers complete connection for your repairs & diagnostics. Use for all Refrigeration & Air Conditioning Service.

• 4-Valve Efficiency - Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.

• 4 Times Faster Evacuation - 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. 3/8” port has greater area than combined inlets of high and low side lines.

• Deep Vacuum Valve Design - Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to full open/close. Superior for deep vacuum service.

• Precision Gauges & Protective Boots - Unique design with easy to read colour-coded scales provides superior resistance to shock, vibration and pulsation for superior performance and extended gauge life.

• PolarShield® Hi-Performance Hoses - 800 PSI working pressure, 4,000 PSI burst pressure (not all models include hose).

• Ergonomic Handles - Durable, soft-touch non-slip surface, even with oily fingers.

• Swivel Hanger

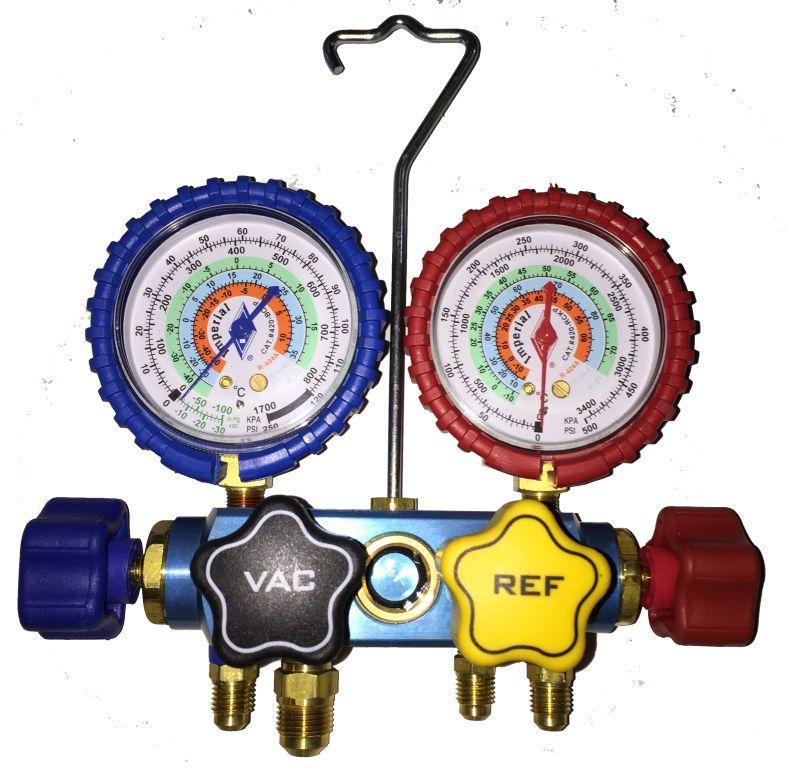

680-CKPSC Manifold

• 4 valve premium manifold with sightglass, 1/4" SAE fittings, 68mm gauges R22 R134A R404A, KPa psi Celcius.

 NOTE: No hoses supplied with this manifold. Click here for hoses.
