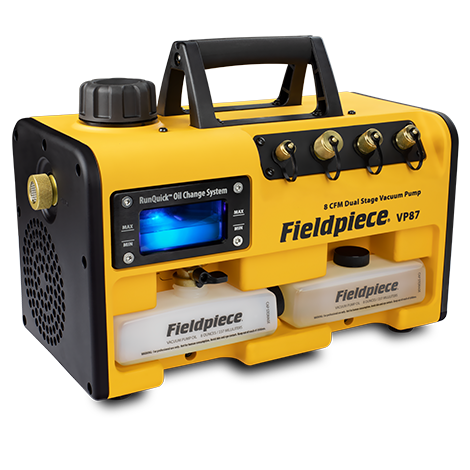

VP87INT Fieldpiece 8 CFM Two Stage R32 Vacuum Pump
  • SKU: VP87INT

Fieldpiece 8 CFM Two Stage R32 Vacuum Pump VP87INT

$1,367.28
GST included.
    DESCRIPTION

    VP87 227 Litre/Min Vacuum Pump for Air Conditioning & Refrigeration

    DOWNLOAD BROCHURE

    Fieldpiece is leading the charge in properly performing system evacuation with its new vacuum pumps with RunQuick™ Oil Change System. Available in 6, 8 and 10 CFM - These revolutionary pumps make Evacuation easier and faster.


    • Best in class flow rates VPX7 10CFM, VP87 8 CFM, and VP67 6CFM that get the job done fast. All three pumps are lightweight and portable.
    • Durable, sturdy pumps with a strong base and a small footprint that eliminate spills. Easy to use hose valve ports that keep hoses in line and easy to work around.
    • RunQuick™ Oil Change System allows oil changes on the fly – no need to turn off the pump and you won’t lose vacuum.
    • Massive back-lit oil reservoir lets you clearly see the condition of the oil and the operation of the system and new removable window for cleaning.

    Good oil is a key ingredient of every evacuation. The new pumps optimize the revolutionary RunQuick™ Oil Management System with an extra bottle and a massive backlit, removable window.

    Clearly view the pump oil to see the condition of the oil and the system. Use only 8 ounces and replace the oil in under 20 seconds, even while the pump is running, without losing vacuum. When it’s time to change the oil, it’s quick, clean and easy.

    Four in-line ports give you tidy hose routing for three different size hoses: (1) 1/4”, (2) 3/8”, (1) 1/2”

    Place the power cord on the handle for tangle-free storage and easy lifting.



    FEATURES AND CAPABILITIES

    The NEW Fieldpiece VP87INT High-Efficiency Vacuum Pump

    • 8 CFM (227 l/m) flow rate with 15 microns ultimate vacuum
    • 3/4 HP DC motor for power-to-weight and low voltage operation
    • RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
    • Extra oil bottle storage
    • Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
    • Backlit oil reservoir to view condition of oil and system
    • Water-resistant to withstand direct rain
    • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
    • Sturdy base stays upright
    • Small footprint – 1,346 cubic inches
    • Quarter-turn gas ballast with LED indicator
    • Convenient, removable cord storage
    • Error messages: Indicate wrong power source or other errors
    • Suitable for A2L class refrigerants
        • R32, R1234YF, R1234ZE, R512A, 419B, 439A and other



    WHAT'S INCLUDED

    • VP87INT Vacuum Pump
    • 2 x 8oz RunQuick Oil Containers (Filled)
    • Operator’s Manual



    SPECIFICATIONS

    Flow Rate 8 CFM (227 l/m)
    Oil Capacity 8oz (237mL)
    Oil Compatibility Fieldpiece Vacuum Pump Oil (Highly refined and optimized for proper sealing and lubrication)
    Fieldpiece part numbers OIL8X3, OIL32, OIL128
    Oil Backlight Blue LED
    Oil Drain Ball valve
    Port Sizes (1) 1/4”, (2) 3/8”, (1) 1/2”
    Compressor Rotary vane, two stage
    Motor  3/4 HP Brushless DC
    RPM 2500
    Power Source 240 VAC @ 50 Hz 1 phase
    Nominal Current Draw 6.0 AAC
    Ultimate Vacuum at Input Ports 15 microns
    Operating Environment -1.1°C to 50°C
    Dimensions 201 mm x 296 mm x 406 mm
    Weight 12.3 kg



    WARRANTY

    1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
