FREE SHIPPING: Fieldpiece R32 Compliant Kit - Includes A2L Vacuum Pump, Digital Manifold and Leak Detector
FREE SHIPPING: Fieldpiece R32 Compliant Kit - Includes A2L Vacuum Pump, Digital Manifold and Leak Detector
FREE SHIPPING: Fieldpiece R32 Compliant Kit - Includes A2L Vacuum Pump, Digital Manifold and Leak Detector
FREE SHIPPING: Fieldpiece R32 Compliant Kit - Includes A2L Vacuum Pump, Digital Manifold and Leak Detector
  • SKU: FKIT07
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

FREE SHIPPING: Fieldpiece R32 Compliant Kit - Includes A2L Vacuum Pump, Digital Manifold and Leak Detector

$2,411.90 $2,486.50
GST included.
DESCRIPTION

Fieldpiece R32 Compliant Kit by Cooltools HVAC-R

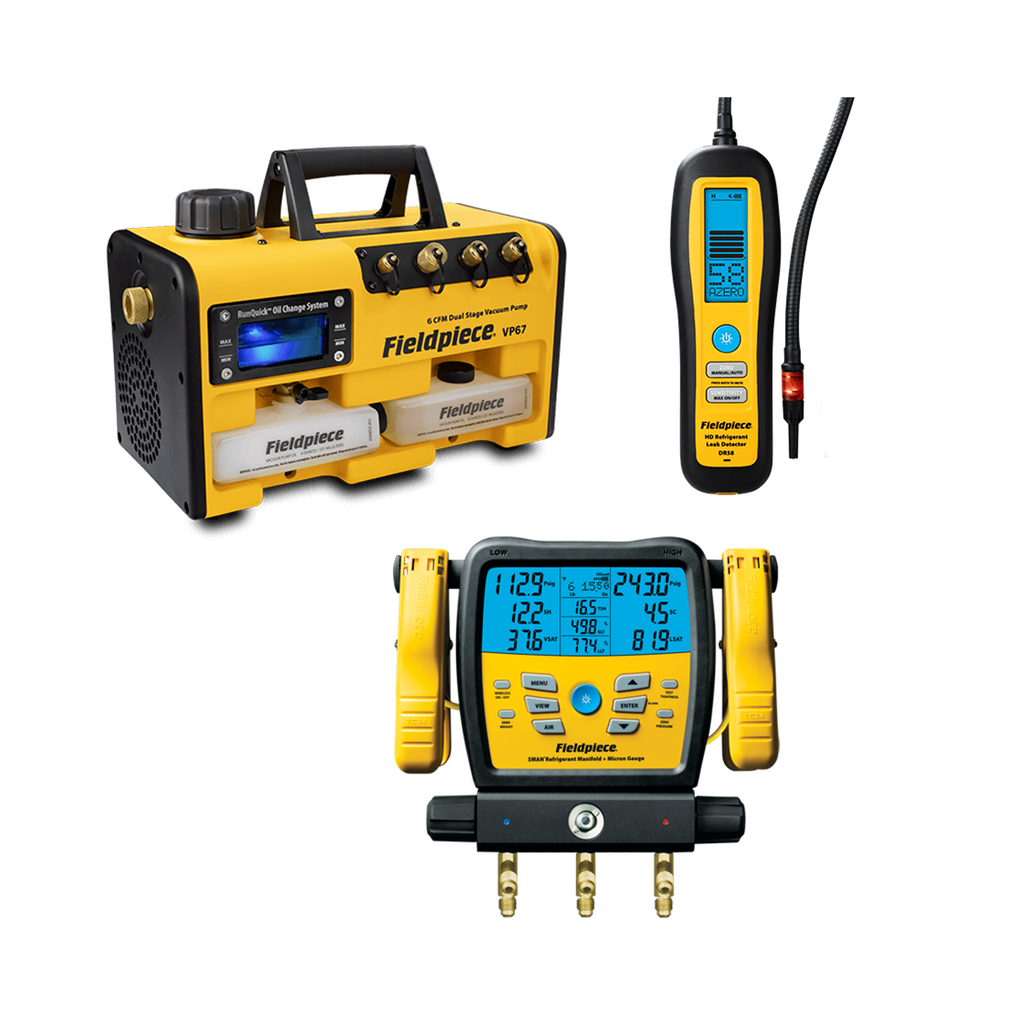

WHAT'S INCLUDED?

1 x Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2 Stage Vacuum Pump - VP67INT

  • VP67INT Vacuum Pump
  • 2 x 8oz RunQuick Oil Containers (Filled)
  • Operator’s Manual

    1 x Fieldpiece 2-Valve Digital Manifold with Data Logging and Micron Gauge - SM380vINT

    • SM380vINT
    • 2 x TC24 Wired Type-K Pipe Clamp thermocouple
    • 1 x ATA1 Type-K Bead Thermocouple with clip
    • 1 x ANC11 Padded Drawstring Case

    1 x Fieldpiece Heated Diode Refrigerant Leak Detector - DR58

    • Heat Diode Refrigerant Leak Detector (DR58)
    • 1 x Heat Diode Sensor (RHD1)
    • 5 x Replacement Filtered Tips (RFT6)
    • Wall Charger with USB-C Cable (RCA3)
    • Blow-Molded Case (ABM2)
    • Operator’s Manual



      FEATURES AND CAPABILITIES

      Fieldpiece VP67 170 L/M 6 CFM A2L Certified 2 Stage Vacuum Pump - VP67INT

      The NEW Fieldpiece VP67INT High-Efficiency Vacuum Pump

      • 6 CFM (170 l/m) with Variable Speed DC motor
      • 15 Micron ultimate Vacuum
      • 1/2 HP AC motor
      • Backlit oil reservoir to view the condition of oil and system
      • RunQuick™ Oil Change System offers on-the-fly oil change in seconds
      • Extra oil bottle storage
      • Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
      • Water-resistant to withstand direct rain
      • Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
      • Sturdy base stays upright
      • Small footprint – 1,346 cubic inches
      • Quarter-turn gas ballast with LED indicator
      • Convenient, removable cord storage
      • Suitable for A2L class refrigerants
        • R32, R1234YF, R1234ZE, R512A, 419B, 439A and other



        Fieldpiece 2-Valve Digital Manifold with Data Logging and Micron Gauge - SM380vINT

        The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

        Data Logging

        • Stores up to 9 jobs internally
        • Easy download via USB port
        • Displays % free storage space before logging begins
        • Logs up to 7 days (168 continuous hours)

        Tightness Test built-in feature

        • Check for leaks after repairs or installations
        • View pressure differential over time
        • Timer tracks the duration of the test
        • Temperature compensated with SL temp to avoid false positives

        Customisable Menu

        • Adjust auto power off duration
        • Adjust backlight duration
        • Set high and low vacuum alarms
        • Select each unit of measurement individually

        Receives Wireless Measurements

        Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.

        Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

        Increase Professionalism with Job Link® System App

        Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
        • View measurements on SMAN and/or in Job Link App
        • Monitor and record refrigerant weight
        • Direct 100 metre wireless range (no transmitter needed)



          Fieldpiece Heated Diode Refrigerant Leak Detector - DR58

          Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVAC-R

          • 10-year sensor life
          • Doesn’t trigger on soap bubbles and oil
          • Compact – designed to fit in your hand
          • Multiple alarms
          • LED lighted tip and loud beep help find leaks in noisy and dark environments
          • Sensitivity better than 0.03 oz/yr (1g/yr)
          • Ruggedized and IP54-certified
          • 10-hour battery charge
          • Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
          • Non-conductive, sturdy probe that stays where you want it.
          • Weighs less than a pound
          • Works on A2L Refrigerants



            WARRANTY

            1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

            AUTHORISED RETAILER

            Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

            SCROLL UP AND "ADD TO CART" TODAY.
