Fieldpiece Job Link JL3 Complete Probe Kit - Includes JL3KH6 and JL3KM2
Fieldpiece Job Link JL3 Complete Probe Kit - Includes JL3KH6 and JL3KM2
Fieldpiece Job Link JL3 Complete Probe Kit - Includes JL3KH6 and JL3KM2
  • SKU: JL3ProbeKit

Fieldpiece Job Link JL3 Complete Probe Kit - Includes JL3KH6 and JL3KM2

$1,498.01 $1,544.35
GST included.
DESCRIPTION

FREE SHIPPING: Fieldpiece Job Link JL3 Complete Probe Kit by Cooltools HVAC-R

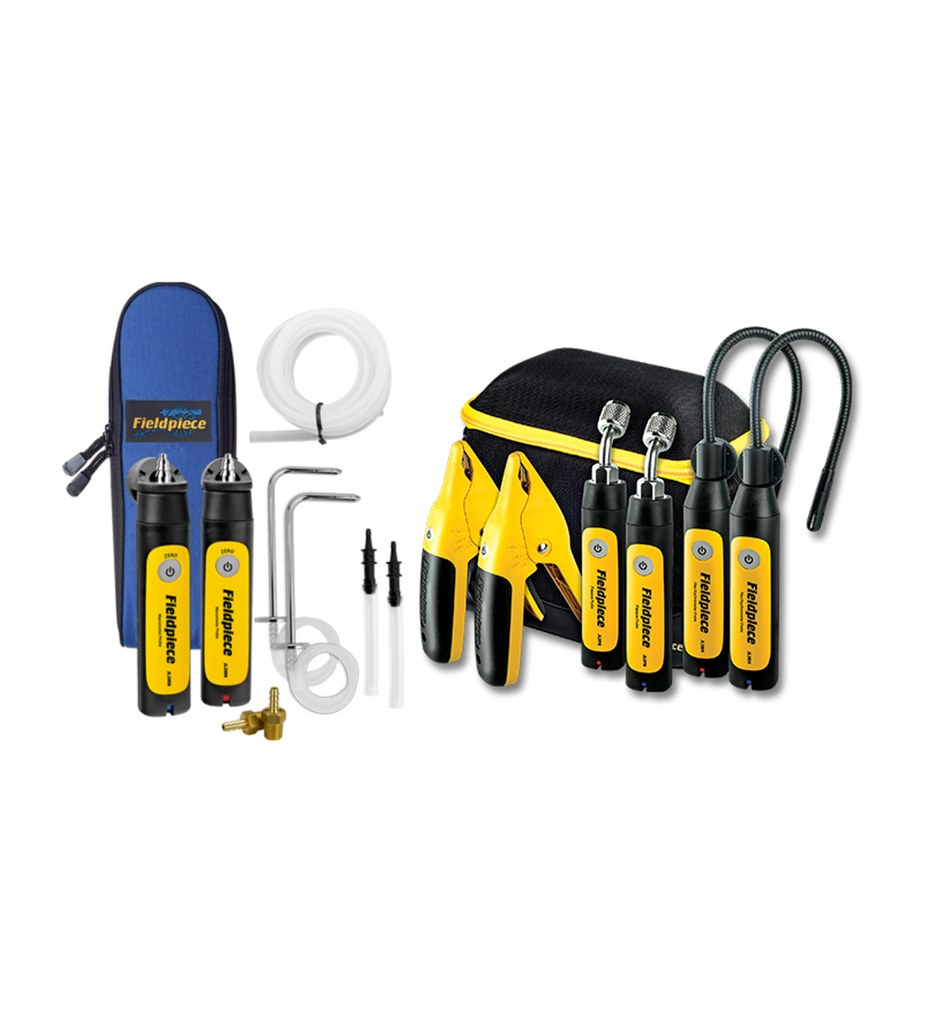

This kit includes:

            The Job Link System JL3 Probes use a more advanced Bluetooth technology and communicate directly to the Job Link System app, without the need for the JL2 transmitter. This Beacon Bluetooth Technology gives +300 metre range! Just what you need to get inside or outside measurements with your gear.

            While some tools need the transmitter and others do not, all Job Link System tools can be used at the same time with all readings seamlessly displayed in the app. When using Job Link you can receive multiple measurements from multiple locations in real-time, assisting in reducing call backs by getting everything just right & system tuned.



            FEATURES AND CAPABILITIES

            Job Link Charge & Air Test Bluetooth Probe Kit JL3KH6

            Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit.

            What's Included:

            • 2 x Pressure Probes for Discharge & Suction Pressure
            • 2 x Pipe clamps for liquid line subcooling & suction line Superheat
            • 2 x Psychrometers for obtaing Dry Bulb, Wet Bulb , Dew Point Temperatures & Relative Humidity [ RH%]
            • Contained in a quick access padded case.

            All measurements can be sent up to 1000’ away directly to your mobile device with the Job Link® System mobile app.

            Each tool is designed for agility and speed.

            The pressure probes fit into tight spaces.

            The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations.

            The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers. Do more with Job Link probes!

            Specifications:

            Wireless Range: +300 metres
            Wireless Frequency: 2.4 GHz
            Battery: 2 x AAA (included)
            Battery Life: 150 hrs typical alkaline
            Auto Power Off (APO): 2 hrs (can be disabled)
            Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

            Job Link™ Pressure Probe - JL3PR
            Connector Type: 45° Standard 1/4” NPT female flare
            Best Accuracy: ±1 psig (±7 kPa)
            Measurement Range: 0 to 580 psig (0 to 4000 kPa)
            Maximum Overload: 800 psig (5500 kPa)
            Water Resistant: Designed to IP55

            Job Link™ Premium Pipe Clamp Probe - JL3PC
            Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
            Accuracy: ±1°F (±0.6°C)
            Measurement Range: -50°F to 257°F (-46°C to 125°C)
            Stabilization Time: 3 seconds typical
            Measurement Feedback: Beeper and LED
            Water Resistant: Designed to IP55
            Patent: Pending

            Job Link™ Flex Psychrometer Probe - JL3RH
            Flexible Probe: 0.36” (9mm) diameter, 9.25” (235mm) length
            Best Accuracy: ±1°F (±0.6°C) ±2.5 %RH
            Measurement Range: -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH



            Job Link Wireless Manometer Kit JL3KM2

            The revolutionary new JL3KM2 Job Link® System Manometer probes give HVAC-R pros the freedom to work the way they want to — unrestricted by hoses, so technicians get readings from optimal locations on every system, every time.

            • All-in-one static, gas and draft pressure
            • Record up to 8 readings at once* in Job Link App
            • Accurate and stable measurements
            • Reliable pressure regardless of location
            • Individual pressure readouts
            • Switchable P1 – P2 indicator
            • Easy zero to atmosphere
            • Long-range wireless
            • Job Link® System app compatible

             What's Included:

            • 2x JL3MN Manometer Probe
            • 2x ASP2 Static Pressure Probe and Hose
            • 2x Brass Screw Fitting with Extra Hose
            • 2x Slide Gas Adapter
            • 4x AAA Batteries
            • 1x Padded Case

            Specifications:

            Minimum Device Requirement BLE 4.0 devices running iOS® 7.0 or Android™ 5.0 (Latest compatibility at www.fieldpiece.com)
            Compatible Media Dry, non-corrosive gas
            Pressure Port Tube connector for flexible tubing (4.5 to 8mm ID)
            Units of Measure inWC, mmWC, mbar, psi, Pa
            Accuracy and Ranges: inWC: ±0.02 on 0.00 to ±2.00 (±1.5% FS on 2.00 to ±60.00);
            mmWC: ±0.5 on 0.0 to ±51.0 (±1.5% FS on 51.0 to ±1500.0);
            mbar: ±0.05 on 0.00 to ±5.00 (±1.5% FS on 5.00 to ±150.00);
            psi: ±0.001 on 0.000 to ±0.072 (±1.5% FS on 0.072 to ±2.165);
            Pa: ±5 on 0 to 498 (±1.5% FS on 498 to ±14930)
            Maximum Overload Pressure 321.08 inWC (11.6 psi; 80.0 kPa)
            Battery Type 2 x AAA, NEDA 24A, IEC LR03
            Battery Life 150 hours typical alkaline. LED slow-blinks red when battery replacement is needed.
            Auto Power Off: 2 hours (APO can be disabled)
            Wireless Range 1000 feet (305 meters) line of sight. Obstructions affect distance.
            Radio Frequency 2.4 GHz
            Operating Environment -10°F to 122°F (-23°C to 50°C) at <75% RH
            Storage Temperature -10°F to 140°F (-23°C to 60°C) at <80% RH (with batteries removed)
            Temperature Coefficient 0.1 x (specified accuracy) per 1.8°F (-10°F to 64°F, 82°F to 122°F), per 1°C (-23°C to 18°C, 28°C to 50°C)
            Weight 0.30 lbs (137 g)



            WARRANTY

            1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

            AUTHORISED RETAILER

            Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
