Fieldpiece Job Link Charge & Air Test Wireless Probe Kit JL3KH6
  • SKU: JL3KH6

Fieldpiece Job Link Charge & Air Test Wireless Probe Kit JL3KH6

GST included.

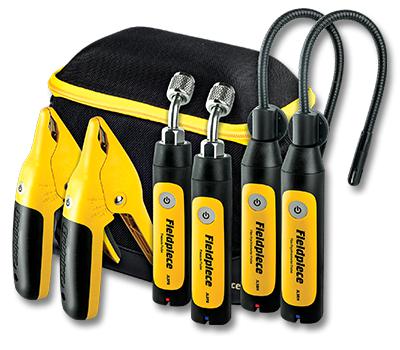

    JL3KH6 Job Link™ Charge and Air Kit

    Take a full system snapshot quickly and easily with the JL3KH6 Charge and Air Test Kit. Superior distance with +100 metre connectivity!

    That means you can see what your Air Handler or Evaporator is doing while you're at the condensing unit.

    Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations. The psychrometers’ flexible narrow probes and configurable magnet make it easy to measure supply plenums, ducts, and elevated registers.



    Logging is now activated

    Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe..... the Saturation Temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.

    Use the JL3PC to test your delta T. across the filter drier... Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.



    • 2 x Pressure Probes for Discharge & Suction Pressure
    • 2 x Pipe clamps for liquid line subcooling & suction line Superheat
    • 2 x Psychrometers for obtaing Dry Bulb, Wet Bulb , Dew Point Temperatures & Relative Humidity [ RH%]
    • Contained in a quick access padded case.
    • All measurements can be sent up to 100 metres away directly to your mobile device with the Job Link™ app.



    Wireless Range +300 metres
    Wireless Frequency 2.4 GHz
    Battery AAA (included)
    Battery Life 150 hrs typical alkaline
    Auto Power Off (APO) 2 hrs (can be disabled)
    Minimum Device Requirement BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0

    Job Link™ Pressure Probe - JL3PR
    Connector Type 45° Standard 1/4” NPT female flare
    Best Accuracy ±1 psig (±7 kPa)
    Measurement Range 0 to 580 psig (0 to 4000 kPa)
    Maximum Overload 800 psig (5500 kPa)
    Water Resistant Designed to IP55

    Job Link™ Premium Pipe Clamp Probe - JL3PC
    Pipe Compatibility Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
    Accuracy ±1°F (±0.6°C)
    Measurement Range -50°F to 257°F (-46°C to 125°C)
    Stabilization Time 3 seconds typical
    Measurement Feedback Beeper and LED
    Water Resistant Designed to IP55

    Job Link™ Flex Psychrometer Probe - JL3RH
    Flexible Probe 0.36” (9mm) diameter, 9.25” (235mm) length
    Best Accuracy ±1°F (±0.6°C) ±2.5 %RH
    Measurement Range -4°F to 140°F (-20°C to 60°C) 0 %RH to 100 %RH
