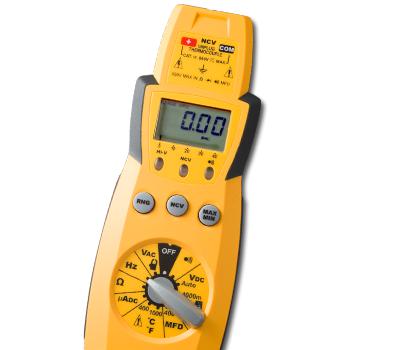

Fieldpiece Auto and Manual Ranging Stick MultiMeter - HS35

• Works with any accessory head
• Non-contact voltage - Built-In Volt Stick
• Microamps DC for flame diodes
• 400 AAC with included Clamp Accessory
• Temperature up to 535 degrees C
• Convenient lead storage
• Safe one-handed testing
• High Voltage and Continuity Indicators
• Microamps
• Capacitance
• MIN/MAX
• Temperature
• Rugged ABS case with rubberized bumpers
• Built-in magnetic hanger allows you to test with one hand or no-hands
• Built-in lead storage
• Ergonomic shape fits naturally in your hand
• Auto power-off (APO) to conserve battery life

SPECIFICATIONS

• Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999

• Analog bar graph: 41 segments with measurements 20 times per second

• Range (RNG): Manual ranging mode (HS35) Overrange: "OL" mark indication

• Auto power off: 30 minutes

• ​​Operating environment: 32°F to 122°F at <70% R.H

• Storage temperature: -4°F to 140°F, 0 to 80% R.H. with battery removed

Accuracy:

• Specifications good in ambient conditions of 73°F ±9°F, <75% relative humidity.
• Temperature coefficient: 0.1×(specified accuracy) per °F. (32°F to 64°F, 82°F to 122°F).
• Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.
• Battery life: 300 hours typical with alkaline.
• Accessories: One pair test leads, one pair alligator clips, k-type thermocouple, 9V battery (installed), and operating instructions.
• Safety: UL, CE, Cat III 600V, UL3111, IEC1010-1.
• Temperature Range: -30°F ~ 1000°F Resolution: 0.1°F Accuracy: ±(1°F) 32°F ~ 120°F, ±(1% + 1.5°F) -4°F ~750°F, ±(2% + 4°F) -30°F ~ -4°F, ±(2% + 4°F) 750°F ~ 1000°F
• Sensor type: K-type thermocouple
• Overload protection: 60 VDC or 30 VAC rms
• Continuity Audible indication: Less than 40Ω Response time: 500ms Green LED will be on continuously.
• Overload protection: 500VDC or AC rms

​DC volts Ranges: 400mV, 4000mV, 40V, 400V, 600V

• Resolution: 0.1mV Accuracy: ±(0.5% rdg + 2 dgt)
• Input impedance: 560kΩ on V inputs, 10MΩ on mV input
• Overload protection: 600VDC or AC rms
• Transient protection: 6kV for 10µ sec

AC volts (50Hz - 500Hz) Ranges: 400mV, 4V, 40V, 400V, 600V

• Conversion: True RMS (HS36), average (HS35)
• Crest factor: Less than or equal to 3 (HS36)
• Resolution: 0.1mV Accuracy: ±(1.2% rdg + 5 dgts) 50Hz ~ 60Hz on 400mV range ±(1.5% rdg + 5 dgts) ±(2% rdg + 5 dgts) on 600V range
• Input impedance: 560kΩ
• Overload protection: 600V DC or AC rms
• Transient protection: 6kV for 10µ sec

​DC current Ranges: 400µA, 4000µA Resolution: 0.1µA

• Accuracy: ±(1.0% rdg + 2 dgt) Voltage burden: 200mV, (2V on 4000µA range)
• Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

Resistance Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ

• Resolution: 0.1Ω Accuracy: ±(1.0% rdg + 4 dgts) on 400Ω to 400kΩ ranges ±(1.5% rdg + 4 dgts) on 4MΩ range ±(3.0% rdg + 5 dgts) on 40MΩ range
• Open circuit volts: -0.45VDC typical, (-1.2VDC on 400Ω range)
• Overload protection: 500VDC or AC rms

Capacitance Range: 400µF Resolution: 0.1µF

• Accuracy: ±(3% rdg + 5 dgts)
• Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

Frequency Ranges: 4k, 40k, 400k, 4M, 40MHz

• Resolution: 1Hz Accuracy: ±(0.1% rdg + 3 dgts)
• Sensitivity: 10Hz ~ 4MHz: > 1Vrms, 4MHz ~ 40MHz: > 2Vrms, <5Vrms
• Minimum pulse width: > 25ns Duty cycle limits: > 30% and < 70%
• Overload protection: 500VDC or AC rms

WHAT'S INCLUDED?

• Expandable Auto Ranging Stick Multimeter - HS35
• 400A Amp Clamp Accessory - ACH4
• Deluxe Silicone Test Leads - ADLS2
• Short Alligator Lead Extensions - ASA2
• Deluxe Meter Case - ANC1
• 9-Volt Battery (installed)
• Operator’s Manual

WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
