SKU: SVW
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

CPS Wireless Solenoid Valve SVW

$401.30

Tax included. Shipping calculated at checkout.

Same-day shipping on all orders by 12 PM Ask about this product

ADD TO WISHLIST

Vendor: CPS
Product Type: Solenoid Valve
Barcode:

DESCRIPTION

SVW CPS Wireless Solenoid Valve

DOWNLOAD MANUAL

DOWNLOAD PRODUCT SHEET

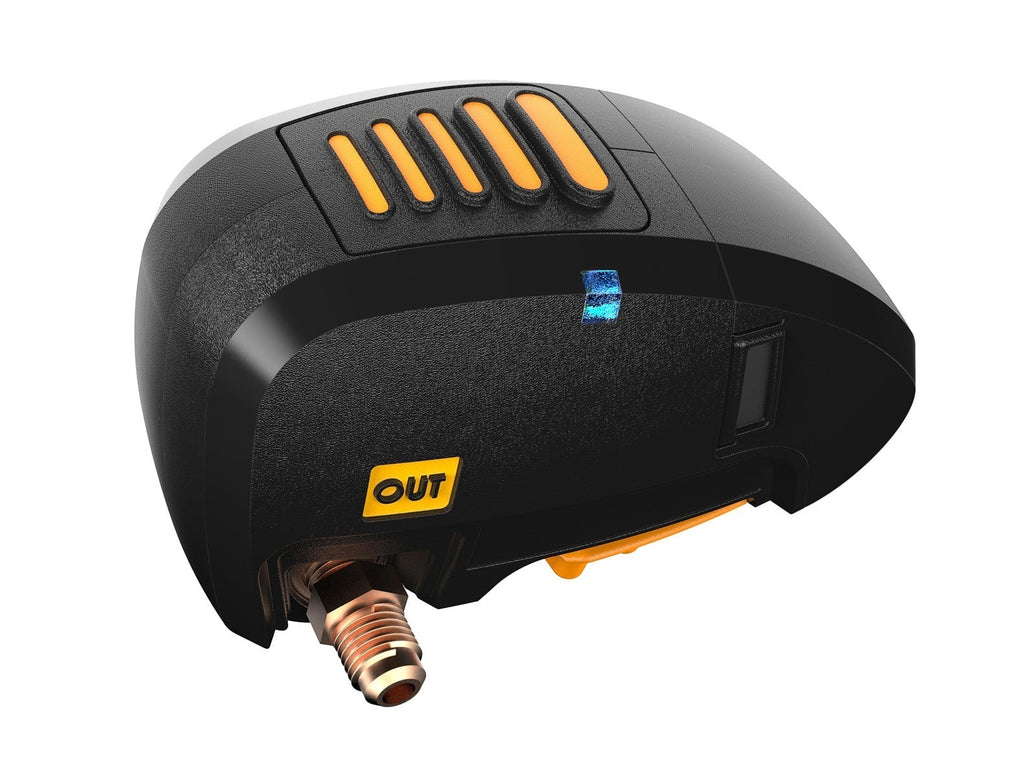

The SVW is a compact, battery-operated Wireless Solenoid Valve with “IN” and “OUT” 1/4˝ SAE male ports designed to quickly open or close, thereby precisely metering a gas or liquid flowing through connected hoses. The SVW can be used for MANUAL Charging, Recovery or Evacuation procedures. It may also be used for AUTOMATIC Charging and Recovery when Bluetooth paired with a mobile device running the CPS Link app.

FEATURES

Ensures fast, precise control of refrigerant during service routines
Saves time, reduces cost and extends service equipment life
Compatible with all common CFC, HFC, HCFC refrigerants and blends
Operates with CPS Link™ app

Additional Features when Paired to a Mobile Device (Running CPS Link™ App):

Pair with other wireless devices – To automate Charging, Recovery & Evacuation
Key controlling functions and readouts – Conveniently located on your mobile device
Store Job Data – Work order, invoice number, customer, log of refrigerant use.
Creates and stores customer Data – Name, address, e-mail, phone, notes.
Test Logs – Measurements, results of tests associated with services performed.
Export – e-mail specific files to customer or home office.
Tank Tracker™ – Convenient refrigerant tank management system for tracking refrigerant used on job sites (for Supply & Recovery tanks and refrigerant type in each tank), plus time, date and geotag location where used.
Operates in ISM band – For international use.

SPECIFICATIONS:

Control By Corded Scale:	Use with CC220EW (With LCD display)
Or control By Mobile Device & CPS Link App:	Use with CC220EW, or CC220W, or CC240W
Turn ON:	Press ON/OFF button (2 secs) until LED turns green. Release button to operate.
Turn OFF:	Press and hold ON/OFF button (5 secs) until LED turns OFF. Release button.
Cycle Solenoid ON/OFF (While SVW ON):	Press and release (pulse) the button.
Auto Power Off (ENABLED):	SVW turns OFF after set period of inactivity (default: 10 mins)
Auto Power Off (DISABLED):	Disable via APP
Charge/Recover Alarms:	In CC220EW control and mobile device
Transmission Range (Line Of Sight):	Up to 150 feet
Frequency Range:	2400 to 2480 MHz
Power Source:	9V Alkaline (Included)
Continuous Battery Life:	Up to 500 hours
Battery Status Indicator:	On handheld corded display, or mobile device
Width x Length x Height, Weight (+ Soft Case, Battery):	2.7” x 4.5˝ x 3˝ (70 x 83 x 76 mm), 11.5 Oz (0.32 kg)
Maximum Working Pressure:	500 Psig (34.5 Bar)
Maximum Operating Differential:	485 Psig (33.5 Bar)
Operating Temperature:	14F to 122F (-10C to 50C)
Operating Humidity:	0% to 95% (Non-condensing)
IN/OUT:	Fittings Brass, 1/4˝ SAE male
Refrigerant Compatibility:	All common CFC, HFC, HCFC refrigerants and blends*
Approvals:	FCC, CE, IC, ICES-003
Warranty:	1 Year
