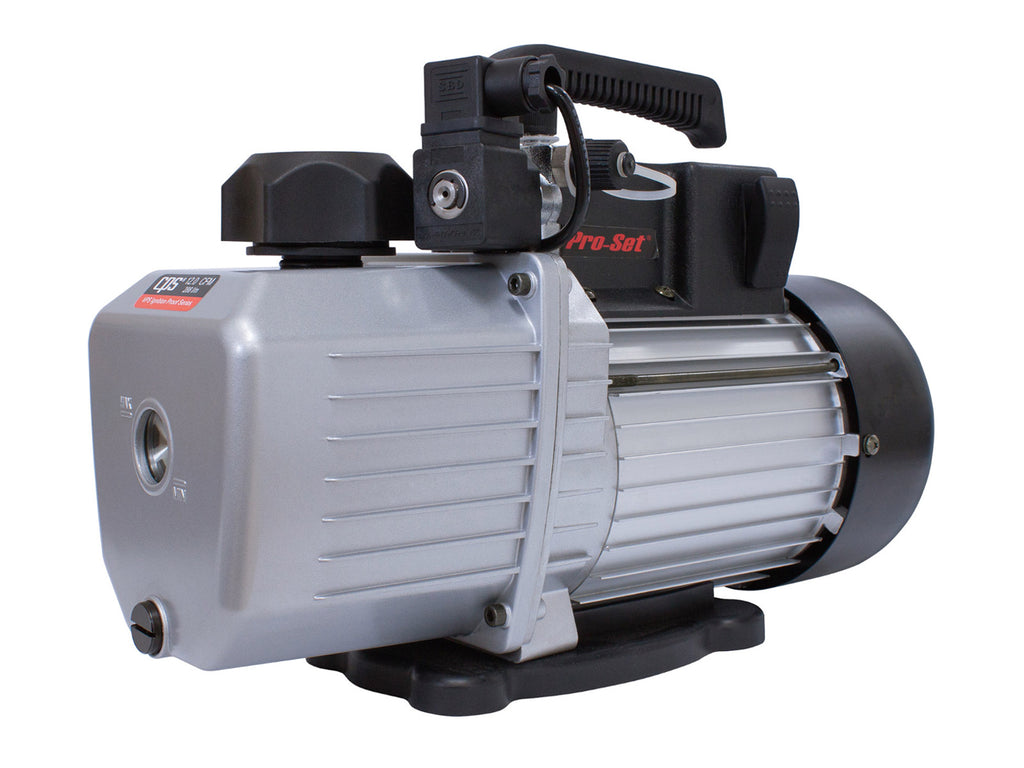

CPS 2-Stage Spark Proof Vacuum Pump 288 L/M 12CFM VPS12DAV
Sold Out
  • SKU: VPS12DAV

CPS 2-Stage Spark Proof Vacuum Pump 288 L/M 12CFM VPS12DAV

$1,471.20
GST included.
    DESCRIPTION

    VPS12DAV CPS 2-Stage Spark Proof Vacuum Pump 288 L/M 12CFM

    The VPS12DAV Pro-Set® vacuum pump is a 288l/m, 2-stage unit that comes complete with a normally closed solenoid valve designed to close if you have a power loss, it also comes with a versatile 220-240V @ 50 Hz 1HP motor.

    The unit boasts the same high-quality, high-value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

    FEATURES

    • Suits common refrigerants, HFO, R32/R1234 series, and ammonia vapors
    • Non-sparking brushless motor with sealed start components and ignition-proof ON/OFF switch
    • Advanced air-cooled motor design for operation in high ambient temperatures
    • Exceptional ultimate vacuum rating as low as 10 microns
    • Normally closed solenoid for vacuum protection
    • Proprietary oil mist-free exhaust port cap for a clean, safe job environment
    • Gas ballast valve speeds achievement of deep vacuum
    • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
    • Multiple port connections for ¼”, 3/8” and ½” ACME
    • Sure-grip handle ergonomically designed for superior comfort and portability
    • The solid rubber base provides extreme shock resistance

    SPECIFICATIONS

    Ultimate Vacuum 25 Microns
    Stage 2
    Refrigerant Class A1, A2, A2L
    Free Air Displacement 288 l/m @ 50 Hz
    Motor Size (HP)RPM @ 50 / 60 Hz 1 HP
    Voltage 220-240V (50Hz)
    Power Connection to Pump 10’ Hard wired

        AUTHORISED RETAILER

        Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.

        SCROLL UP AND "ADD TO CART" TODAY.

        SHIPPING

        Australia-wide Flat Rate shipping of $15.00 per order.
        This includes multiple products up to 5kg only.

        Additional cost applies for orders over 5kg. Contact us for quotation.
