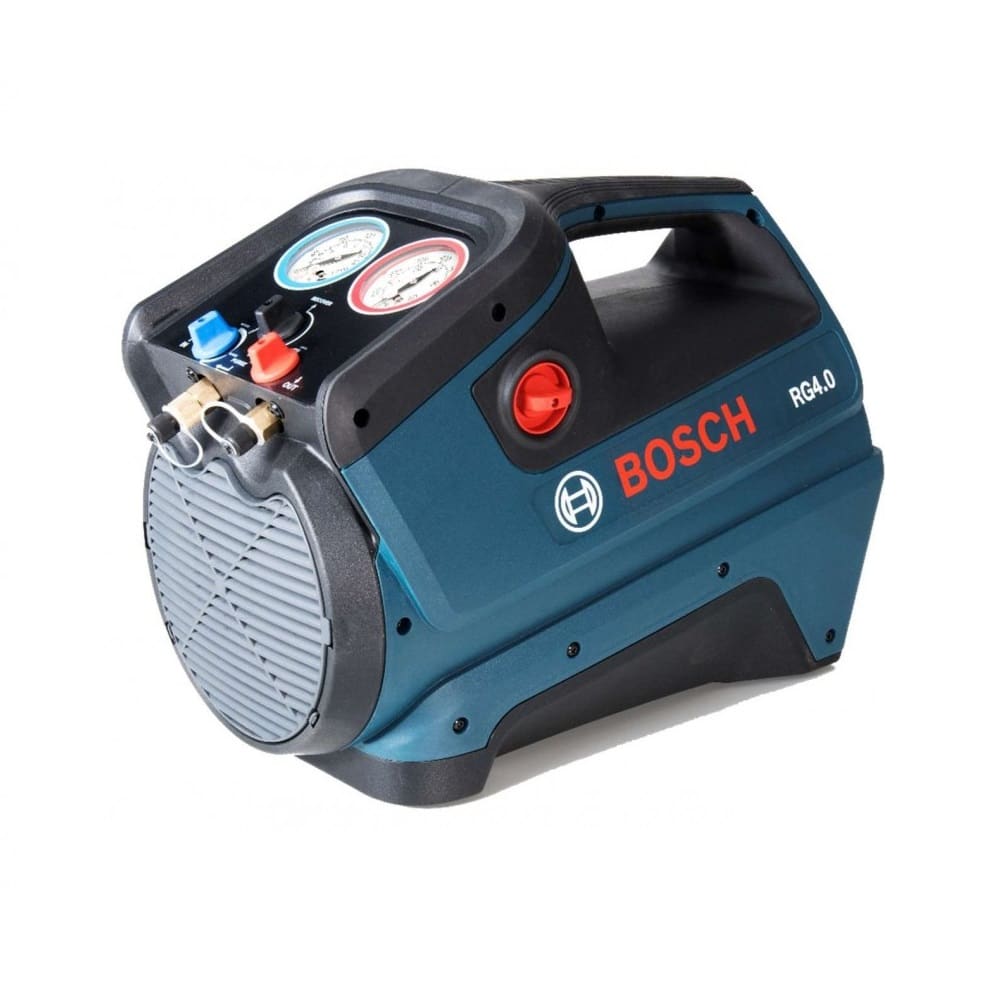

Bosch High Pressure Recovery Unit RG4.0
Bosch High Pressure Recovery Unit RG4.0
Bosch High Pressure Recovery Unit RG4.0
  • SKU: RG4.0

Bosch High Pressure Recovery Unit RG4.0

$2,910.59
GST included.
    DESCRIPTION

    RG4.0 Bosch High-Pressure Recovery Unit

    DOWNLOAD DATASHEET
    DOWNLOAD MANUAL


    The Bosch High-Pressure Recovery Unit is suitable for nearly all commonly used refrigerants including A2L + A3. It is a tool specifically designed for professional applications.

    FEATURES

    • Robust and impact resistant
    • Stable and reliable operation
    • Handle over-moulded with rubber (TPE) for a reliable grip
    • Single cylinder compressor stable, reliable and oilless
    • Protective cover keeps dirt away from gauges and controls
    • Bottom mount assembly and layout for enhanced serviceability
    • Electrical and refrigerant line connections on opposite ends
    • Specially designed mounts and feet to provide stability, noise and vibration isolation
    • High displacement electrical fan draws fresh air first through the condenser for improved recovery rates in extreme conditions
    • Low-pressure switch for smooth operation
    • Cuts off when ideal vacuum level is reached thereby preventing excessive operation and reducing wear
    • Automatic reset HP cut-out protects the equipment and operator

    WHAT'S INCLUDED

    • Bosch Recovery Unit
    • 12-month warranty

    SPECIFICATIONS

    Suitable Refrigerants AHRI cat. / Kat. / cat. III, IV, V + A2L, A3
    Rated Voltage
    RG 4.0A 230 VAC +/- 10 %
    Rated Frequency
    50/60 Hz
    Power 360 watt / 1/2HP
    Rated Current RG 4.0A 5 A
    Gas Capacity Max.
    10.7kg/hr
    Liquid Capacity Max. by push-pull
    410.5kg/hr
    Liquid Capacity Max Capacity Rates 122.1kg/hr
    Compressor
    Oil-less, Single cylinder
    Circuit Breaker
    RG 4.0A 8 A
    Max. working pressure 38.5 bar
    Dimensions 450mm x 250mm x 350mm
    Weight 14.6kg
    Operating Temperature 0 – 50 °C
    Safety Device Safety pressure switch with automatic reset 550 PSI (38.5 bar)


    AUTHORISED RETAILER

    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

    SCROLL UP AND "ADD TO CART" TODAY.

    SHIPPING

    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
