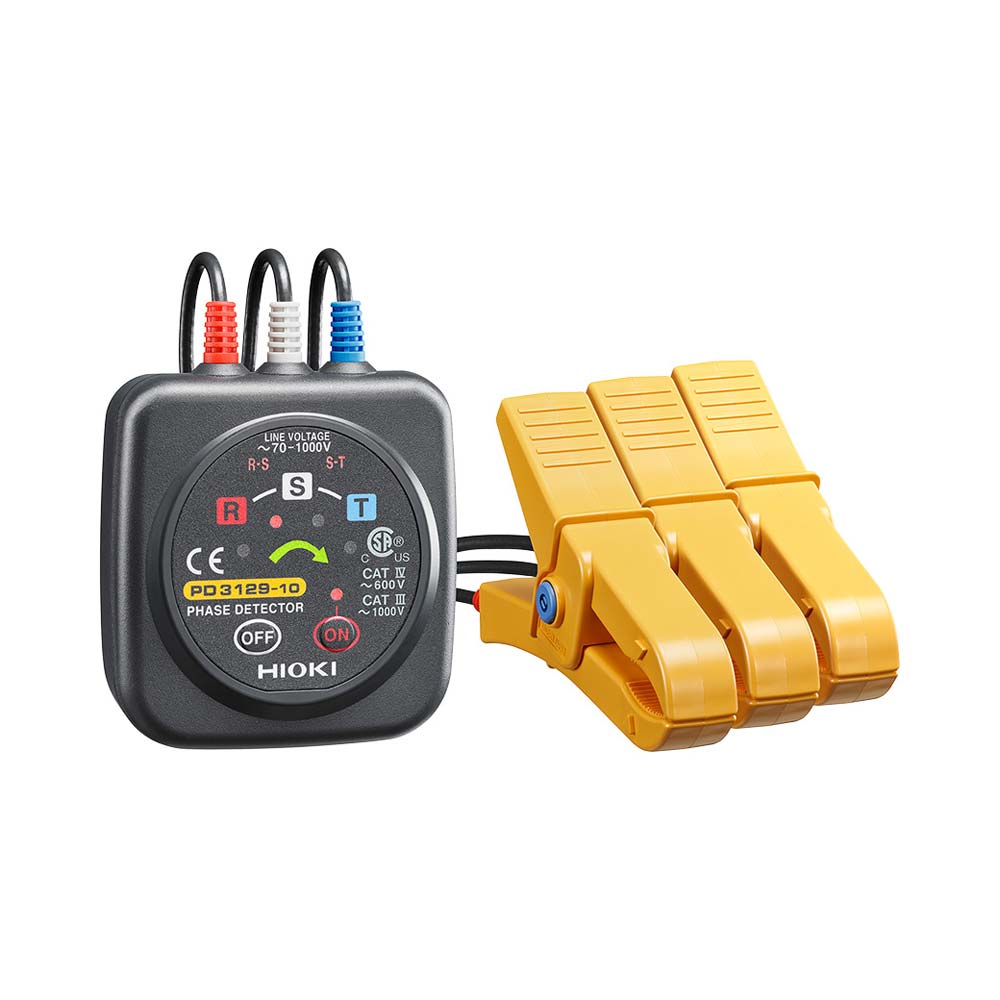

Hioki Phase Detector PD3129-10 - MET-H-PD3129-10

Hioki MET-H-PD3129-10 Phase Detector PD3129-10

When working on complex renovations or industrial facility expansions, electrical safety is paramount. The Hioki MET-H-PD3129-10 Phase Detector is the industry-standard solution for technicians who demand high-level protection. By utilizing advanced static induction technology, this detector identifies phase sequence on insulated wires without the need for traditional metallic clips, effectively eliminating the risk of accidental short circuits or electric shock during testing.

PRODUCT DATASHEET

KEY FEATURES

• Dimensions: 70mm x 75mm x 30mm
• Weight: 240g
• Cord Length: 0.7m
• Voltage Range: 70 to 1000V AC
• Includes:
  • R6P (AA) manganese battery ×2
  • Carrying Case
  • Strap
  • Spiral tube
  • Instruction Manual
• Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
• Intermittent beeps signal positive phase; continuous tone signals reverse phase
• Magnetic base allows the instrument to be secured on a distribution panel
• Green LED arrow clearly shows phase direction, perfect for visual reports
• Auto shut off if no activity is detected after power is turned ON for 15 minutes
• R6P (AA) manganese battery ×2 continuous use up to 70 hours
• CAT IV 600 V, CAT III 1000 V



STANDARDS

• CAT IV 600 V
• CAT III 1000 V
