Yellow Jacket 7CFM Bullet X Vacuum Pump 93620
  • SKU: 93620

Yellow Jacket 7CFM Bullet X Vacuum Pump 93620

$742.50 $859.00
GST included.
    DESCRIPTION

    93620 Yellow Jacket 7CFM Bullet X Vac Pump (165L/M)

    DOWNLOAD DATASHEET

    DOWNLOAD MANUAL

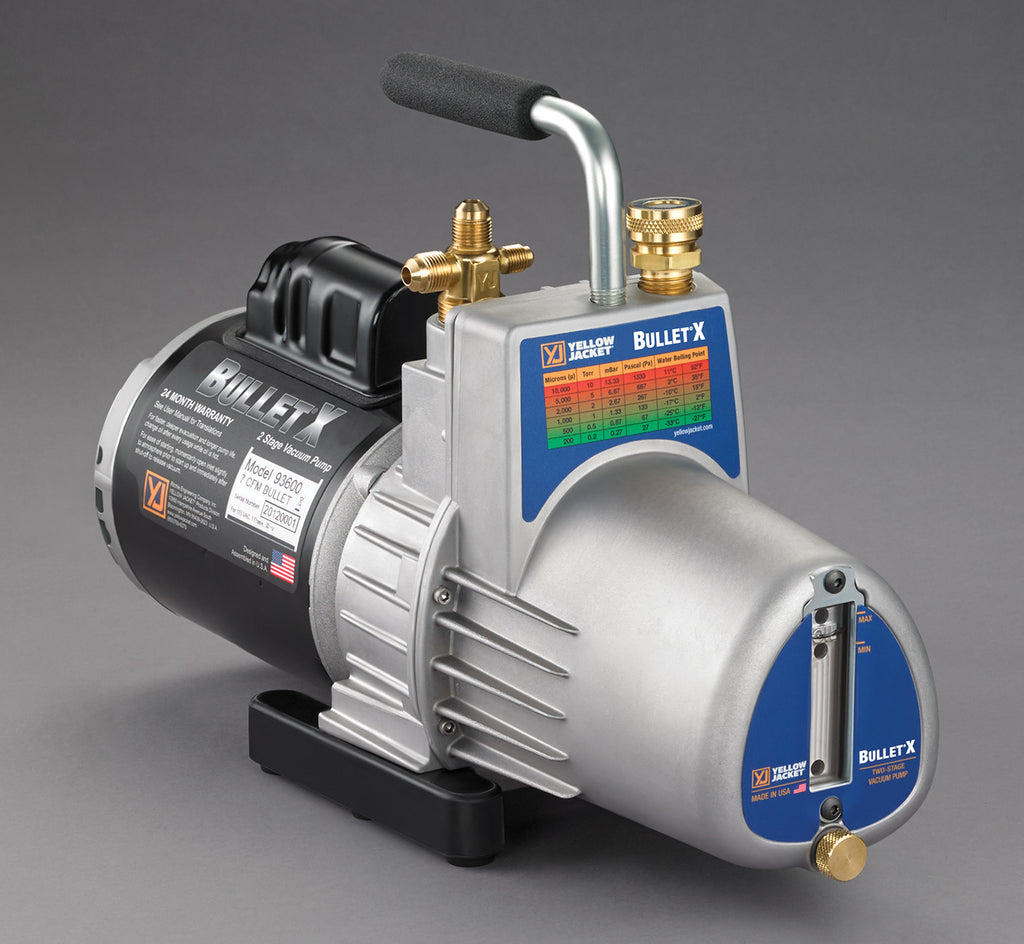

    Wide mouth oil reservoir port for easier, cleaner filling. The YELLOW JACKET® BULLET™ vacuum pump is a two-stage rotary vane oil-sealed 7 CFM pump that pulls down to 25 microns or better.



    FEATURES

    • Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
    • Large oil sight glass for easy monitoring of oil level
    • Large brass oil drain for easy access to fast oil changes
    • Internal intake check valve prevents oil backup into the system during a power failure
    • Intake filter screen keeps damaging particles from entering the pump
    • Heavy-duty rotors and bearings
    • Heavy-duty steel handle for well-balanced carrying
    • Tethered port caps stay with the pump
    • Stable base; wide-stance metal with rubber overlay
    • 24-month limited over-the-counter warranty
    • Made in the USA



    SPECIFICATIONS



    Free Air Displacement 7CFM (165 L/M)
    Number of Stages Two-stage rotary vane
    Field Blankoff 25 microns
    Intake 1/4" x 3/8" x 3/8"
    Motor 1/2” hp – 1725 rpm
    Thermal Overload Protection Yes
    Voltage (single phase) 115V/60 Hz
    Power Cord 6' - motor mounted switch
    Oil Capacity 7 CFM (28oz./0.828L)
    Dimensions  17.5" L x 6" W x 12" H (44.5 cm x 15.2 cm x 30.5 cm)
    Weight 31.7 lbs. (14.4 kg)


    Additional specifications for EU/UK 93610; AU/NZ 93620

    Detachable ICE cord type EU/UK; AU/NZ
    Free air displacement 200/165 L/M
    Motor 1/2 hp - 1725/1425 rpm
    Dual voltage (single phase) 115/230V/50-60 Hz
    Dimensions 18" L x 6" W x 12" H (45.7 cm x 15.2 cm x 30.5 cm)
    Weight 34.5 lbs. (15.7 kg)



    WHAT'S INCLUDED

    • 1 x Yellow Jacket Bullet X Vac Pump 7CFM 93620
