Yellow Jacket 5CFM BULLET VAC PUMP (120L) 93625-Vacuum Pumps-Yellow Jacket-Cool Tools HVAC-R
Sold Out
  • SKU: 93625

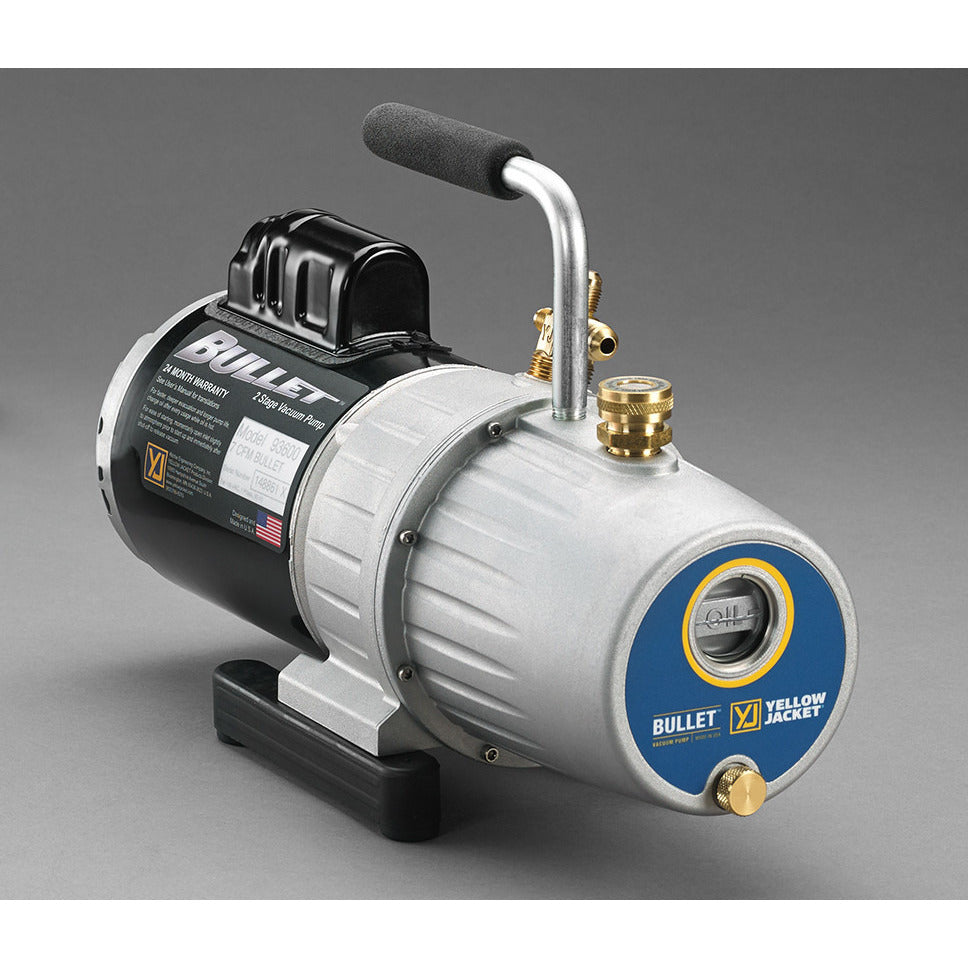

Yellow Jacket 5CFM BULLET VAC PUMP (120L) 93625

GST included.

    Yellow Jacket 5CFM BULLET VAC PUMP (120L) 93625


    Wide mouth oil reservoir port for easier, cleaner filling. The YELLOW JACKET® BULLET™ vacuum pump is a two-stage rotary vane oil-sealed 3, 5 & 7 CFM pump that pulls down to 25 microns or better.



    • Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
    • Large oil sight glass for easy monitoring of oil level
    • Large brass oil drain for easy access to fast oil changes
    • Internal intake check valve prevents oil backup into the system during a power failure
    • Intake filter screen keeps damaging particles from entering the pump
    • Heavy-duty rotors and bearings
    • Heavy-duty steel handle for well-balanced carrying
    • Tethered port caps stay with the pump
    • Stable base; wide-stance metal with rubber overlay
    • 24-month (over-the-counter with pre-approval) warranty
    • Made in USA



    • Free air displacement: 3, 5 and 7 CFM
    • Number of stages: Two-stage rotary vane
    • Field blankoff: 25 microns
    • Intake: 1/4” x 3/8” x 3/8”
    • Motor: 1/2” hp – 1725 rpm
    • Thermal overload protection
    • Voltage (single phase): 115V/60 Hz
    • Power cord: 6’ – motor mounted switch
    • Oil capacity: 3 CFM (33.5 oz./0.991 L); 5 CFM (30 oz./0.9 L); 7 CFM (28 oz./0.828 L)
    • Dimensions: 16.25” L x 6” W x 11.5” H
    • Net weight: 3 CFM (29.1 lbs./13.2 kg); 5 CFM (30.0 lbs./13.6 kg); 7 CFM (31.6 lbs./14.3 kg)
