DESCRIPTION

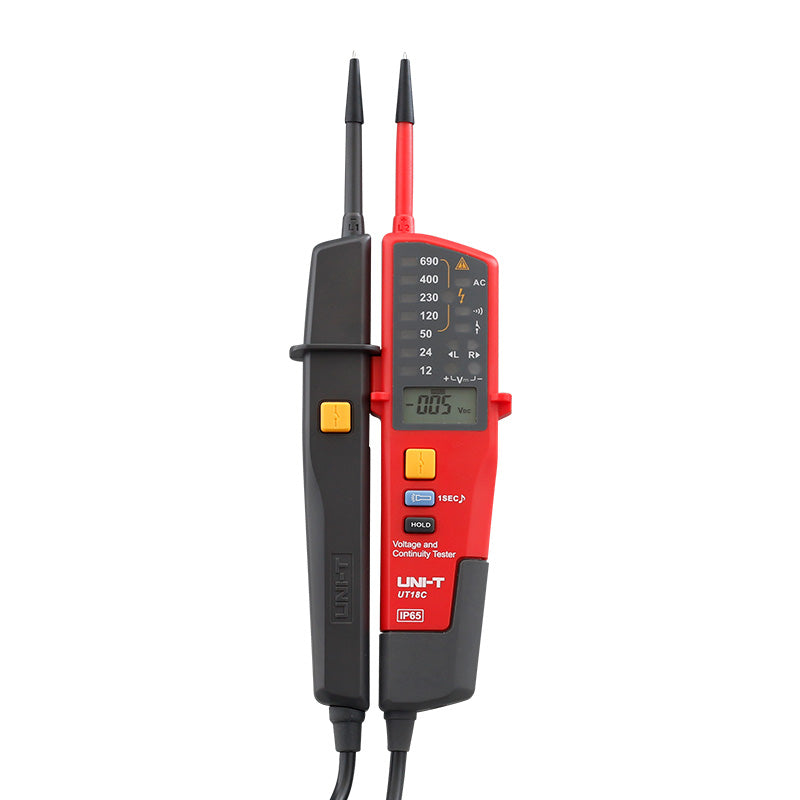

Uni-T Voltage and Continuity Tester

The UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets the IP65 standards.

These voltage testers are perfect tools for electricians to measure voltage levels in all environments quickly. This series should NOT be used with 110V electrical systems.


FEATURES

  • RCD test (Operating voltage: 230V/50Hz~400Hz)
  • Polarity detection: Positive & Negative
  • Self-inspection: All LED or LCD
  • Voltage indication
  • Exceed voltage (voltage range: 713V~788V)
  • Auto standby (standby current < 10μA)
  • Silent mode: All range
  • Low battery indication: around 2.5V
  • Phase rotation test
  • Single lead (L2) voltage detection
  • Continuity test
  • No power test
  • Work light
  • CAT IV 600V
  • IP65


WHAT'S INCLUDED?

  • UT18C Voltage and Continuity Tester
  • Batteries
  • Operating Manual



SPECIFICATIONS

UT18C Range Accuracy
Voltage (V) 12V
24V
50V
120V
230V
400V
690V
8V±1V
18V±2V
38V±4V
94V±8V
180V±14V
325V±15V
562V±24V
LCD display (voltage) 6V~690V ±(1.5%+5)
LCD display (Frequency) 40Hz~400Hz ±(3%+5)


General Technical Data
Phase rotation test 57Vac~400Vac (3 phase)
Frequency: 50Hz~400Hz
Single lead (L2)
voltage detection
Operating voltage: 100V~690V
Frequency: 50Hz~400Hz
Continuity test Resistance: 0Ω~100kΩ (+50% accuracy)
Beeper and LED light indication
RCD test Operating voltage: 230V (50Hz~400Hz)
Polarity detection Positive & Negative
Self-inspection All LED or LCD
No power test Operating voltage: 100~690V
Voltage indication LED
Exceed voltage Voltage range: 713V~788V
Auto standby Standby current<10μA
Silent mode All range
Low battery indication Around 2.5V
IP Rating IP65
Category Ratings CAT IV 600V
Certifications CE, UKCA, cETLus
Power 1.5V battery (R03)×2
Display 31mm x 20mm
Dimensions 272mm x 85mm x 31mm
Weight 280g
