Uni-T Heavy Duty Professional Thermal Imager - UTi260B
Uni-T Heavy Duty Professional Thermal Imager - UTi260B
Uni-T Heavy Duty Professional Thermal Imager - UTi260B
  • SKU: UTI260B

Uni-T Heavy Duty Professional Thermal Imager - UTi260B

$977.89
GST included.
DESCRIPTION

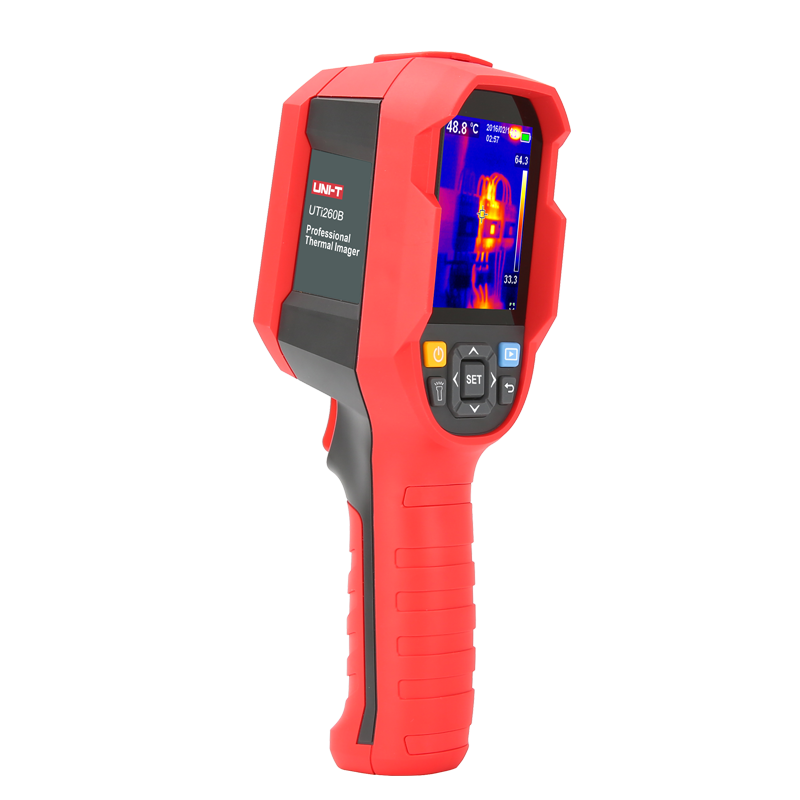

Uni-T Heavy Duty Professional Thermal Imager

The UTi260B is a featured product of UNI-T heavy-duty series thermal cameras. It is cost-effective and with a wide temperature range: -20°C~550°C. It has a higher IR resolution of 256×192 pixels than other models and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture.

It is also user-friendly and rugged enough to pass IP65 and 2m drop test.



FEATURES

  • Durable and user-friendly
  • 8” TFT display screen (320×240 Pixels)
  • IR resolution: 256×192
  • Temperature measurement range: -20°C to 550°C / -4°F to 1022°F
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: Point 3
  • Image capture
  • Image modess: Thermal, Visual image, Fusion, PIP
  • Digital camera resolution: 640×480
  • Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow
  • HC)
  • LED flashlight
  • PC software analysis and real-time image projection)
  • Rechargeable Li-ion battery
  • 1/4” Tripod Mounting Hole
  • IP65
  • 2m drop proof


APPLICATION

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building & HVAC inspection etc.



WHAT'S INCLUDED?

  • UTi260B Heavy Duty Thermal Imager
  • Micro SD card
  • Type-C USB cable
  • Adapter
  • Operating Manual



SPECIFICATIONS

IR resolution (Pixels) 256×192
Display 2.8” TFT LCD (320×240)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤50mK
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Focus Focus Free
Temperature measurement range -20°C~550°C
Accuracy ±2°C or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)


General Technical Data
Certificates CE,RoHS
Color palettes 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes Thermal, Visual image, Fusion, PIP
On screen analyzer Point 3
Digital camera resolution 640×480
Hi/Lo temperature alarm Icon, LED flashlight
Battery
Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time ≥ 6 hours
USB Type-C
IP rating IP65
Drop-proof 2m
Storage Up to 32GB Micro SD card
Image/Video storage format BMP
Dimensions 236mm×75.5mm×86mm
Weight 910g


AUTHORISED RETAILER

Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



SCROLL UP AND "ADD TO CART" TODAY.

SHIPPING

Australia-wide Flat Rate shipping of $15.00 per order.
This includes multiple products up to 5kg only.

Additional cost applies for orders over 5kg. Contact us for quotation.
