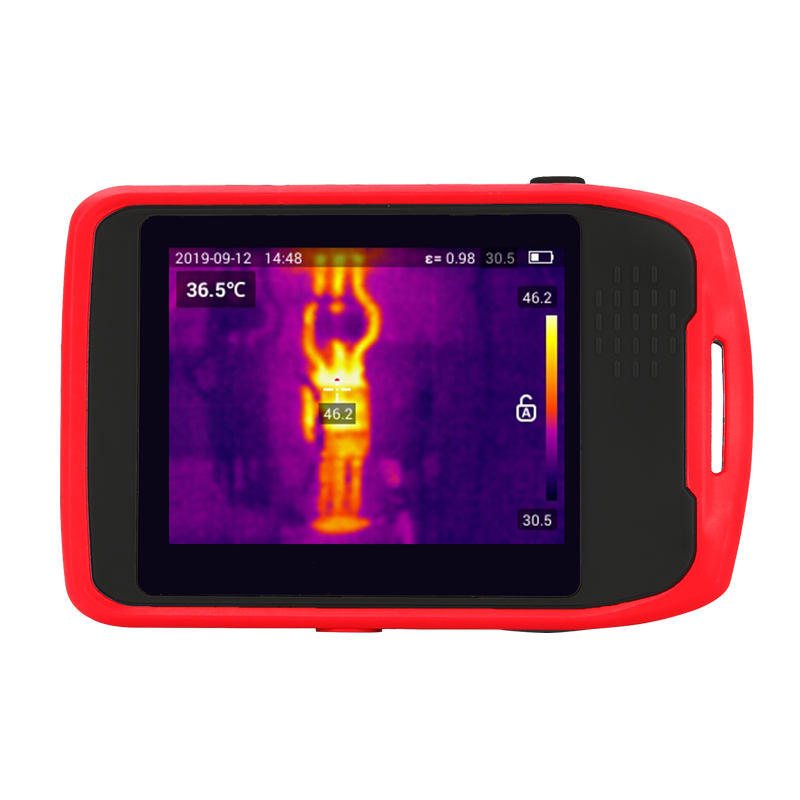

Uni-T Pocket Sized Thermal Imager - UTi120T
Uni-T Pocket Sized Thermal Imager - UTi120T
Uni-T Pocket Sized Thermal Imager - UTi120T
Uni-T Pocket Sized Thermal Imager - UTi120T
  • SKU: UTI120T

Uni-T Pocket Sized Thermal Imager - UTi120T

GST included.

    Uni-T Thermal Imager

    The UTi120T is a pocket-sized and compact thermal camera, it can be easily put into pocket, which is very portable for users. Its 3.5’’ large LCD touchable display screen is convenient for users to operate easily. It can automatically track the objective’s temperature from -20°C~400°C.

    It also supports Wi-Fi connection through UNI-T Mobile App. With UTi120T thermal camera in pocket, users will be ready anytime to diagnose electrical, mechanical, building problems and other potential issues.



    • Compact and portable
    • 5” TFT touch screen (320×240 Pixels)
    • IR resolution: 120×90
    • Temperature measurement range: -20°C to 400°C / -4°F to 752°F
    • On screen analyzer: Point 1/Rectangle 1
    • Auto alarm for high/low temperature
    • Auto tracking for hot spot/cold spot
    • Image capture
    • Image modes: Thermal, Fusion, Visual Image
    • Digital camera resolution: 640×480
    • Digital zoom: 1.0~8x (Continuous Zoom)
    • Color palettes: 6(White hot, Black hot, Ironbow, Hot iron, Arctic, Medical)
    • LED flashlight
    • PC Software analysis)
    • Wi-Fi connection through Mobile APP
    • USB rechargeable Li-ion battery
    • 1/4” tripod mounting hole
    • IP54
    • 1m drop proof



    Pipeline Inspection: Aging, corrosion, blockage, leakage, and other faults can appear during pipeline inspection. With the help of thermal camera UTi120T, faults can be quickly located.

    Motor Inspection: Faults such as wiring error, overload, unbalanced-load, component failure of motor equipment in production can be detected by thermal imager. Detecting faults in timely fashion helps to ensure safety of productions.

    Power Distribution Cabinet Inspection: Measuring distribution cabinet in advance to determine possible fault locations and to reduce maintenance costs. Abnormal thermal phenomenon caused by oxidation, corrosion and loosening of switches, contacts, transformers, and other parts can quickly be found using this UTi120T thermal camera.



    • UTi120T Pocket Sized Thermal Imager
    • Micro SD card
    • Type-C USB cable
    • Carrying bag
    • Operating Manual


    IR resolution (Pixels) 120×90
    Display 3.5” TFT Touch (320×240)
    Field of view(FOV) 50°×38°
    Thermal sensitivity(NETD) ≤60mK
    Spatial resolution(IFOV) 7.6mrad
    Frame rate ≤25Hz
    Focus Focus Free
    Temperature measurement range -20°C~400°C
    Accuracy ±2°C or ±2% whichever is greater
    Emissivity 0.01~1.00 adjustable (0.95 default)

    General Technical Data
    Certificates CE,FCC,RoHS
    Color palettes 6 (White hot, Black hot, Ironbow, Hot iron, Arctic, Medical)
    Image modes Thermal, Visual image, Fusion, PIP
    On screen analyzer Point 1/Rectangle 1
    Digital camera resolution 640×480
    Digital zoom 1.0~8× continuous
    Hi/Lo temperature alarm Icon, LED flashlight
    Fixed Li-ion battery (3.7V 5000mAh)
    Battery operation time ≥2 hours (without Wi-Fi)
    USB Type-C
    IP rating IP54
    Drop proof 1m
    Storage 4GB Internal
    Image/Video storage format JPEG
    Dimensions 205mm×124mm×65mm
    Weight 212g
