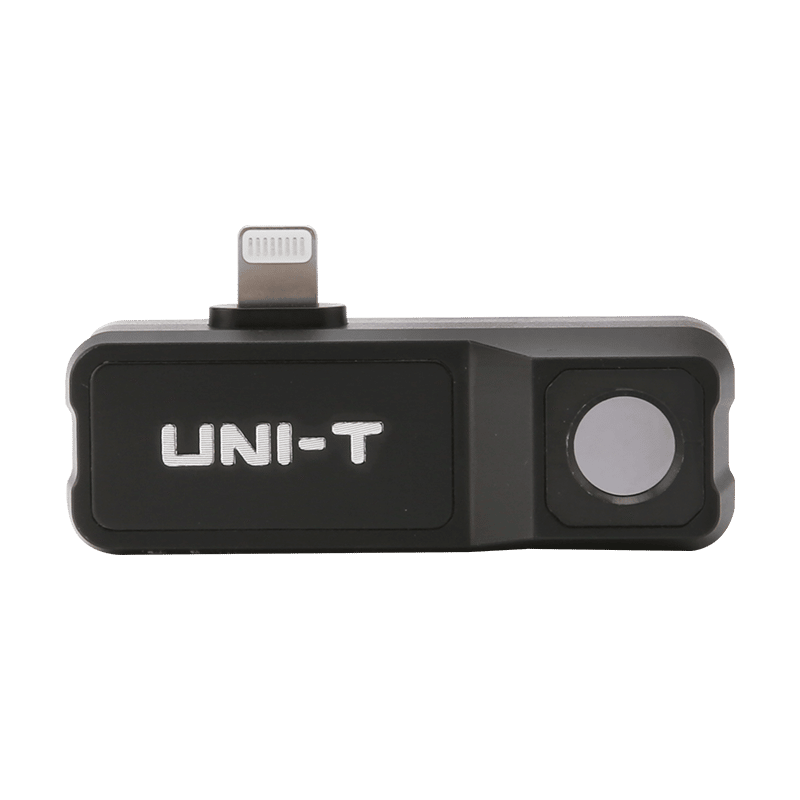

Uni-T Smartphone Thermal Camera Module for iPhone UTI120MS
Uni-T Smartphone Thermal Camera Module for iPhone UTI120MS
Uni-T Smartphone Thermal Camera Module for iPhone UTI120MS
Uni-T Smartphone Thermal Camera Module for iPhone UTI120MS
  • SKU: UTI120MS

Uni-T Smartphone Thermal Camera Module for iPhone UTI120MS

$545.59
GST included.
    DESCRIPTION

    UTI120MS Uni-T Professional Thermal Camera Module for iPhone iOS

    DOWNLOAD MANUAL

    UTi120MS is a proficient smartphone thermal camera module for iPhone, which is compact, portable, and easy to operate via connecting with mobile phones.

    UTi120MS provides clear images with a fast response and can detect temperatures up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners, outdoor lovers, engineers, contractors, builders, etc.

    FEATURES

    • Temperature measurement range: -20℃to 400℃  / -4℉ to 752 ℉
    • IR resolution: 120×90
    • On-screen analyzer: Point 6/ Line 6/Rectangle 6/Circle 6
    • Auto tracking for hot spot/cold spot
    • Auto alarm for high/low temperature
    • Video recording and Image Capture
    • Image modes: Thermal, Fusion, PIP
    • Phone: iPhone (USB LightningType-C interface)
    • 1m extension cable
    • 2m drop proof
    • Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)



    APPLICATION

    • Electricity Inspection
    • Pipeline Inspection
    • Motor Inspection
    • Manufacturing Machine Inspection
    • PCBA Inspection
    • Freezer Inspection



    WHAT'S INCLUDED

    • UTi120MS Smartphone Thermal Camera Module for iPhone iOS
    • Documents download operation guide card
    • Operating Manual
    • 12-month warranty



    SPECIFICATIONS

    Technical Data
    IR resolution (Pixels) 120×90
    Field of view(FOV) 50°×38°
    Thermal sensitivity(NETD) ≤60mK  @25℃
    Spatial resolution(IFOV) 7.3mrad
    Frame rate ≤25Hz
    Spectral range 8~14µm
    Focus Focus free
    Lens focal length 2.28mm
    Temperature measurement range  -20℃ ~ 400℃
    Accuracy ±2℃ or ±2% whichever is greater
    Emissivity 0.01~1.00 adjustable (0.95 default)
    Functions
    Colour palettes 7
    (White hot, Lava, Ironbow, Black hot, Red hot, Rainbow, Rainbow HC)
    Image modes Thermal, Fusion, PIP
    On-screen analyzer 6 Points/6 Lines/6 Rectangles/6 Circles
    Hi/Lo temperature alarm
    Video recording



    General Characteristics
    USB Lightning
    Drop-proof 1m
    Image/Video storage format JPEG, MP4
    Certificates CE,UKCA, FCC,RoHS, MFi
    Product net weight 25g
    Product size 53mm×18.2mm×18.5mm

    AUTHORISED RETAILER

    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



    SCROLL UP AND "ADD TO CART" TODAY.

    SHIPPING

    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
