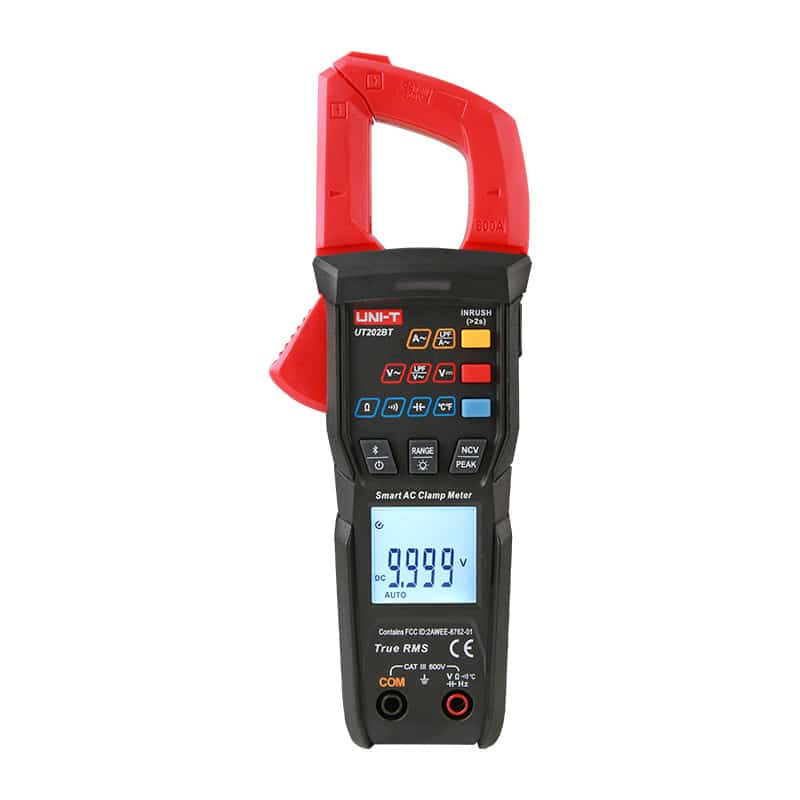

Uni-T Smart AC Clamp Meter - UT202BT
Uni-T Smart AC Clamp Meter - UT202BT
Uni-T Smart AC Clamp Meter - UT202BT
  • SKU: UT202BT

Uni-T Smart AC Clamp Meter - UT202BT

$115.49
GST included.
DESCRIPTION

Uni-T Smart AC Clamp Meter

The UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple-to-use smart clamp meter that can automatically detect most common parameters.


FEATURES

  • Button-design clamp meter
  • One-hand operation and easy to use
  • True RMS / 9999 counts
  • 28mm jaw opening
  • 600V AC/DC voltage measurement
  • 600A AC current measurement
  • Dual display (V+HZ and A+HZ)
  • Bright backlight / Flashlight
  • Non-contact voltage (NCV)
  • Auto range
  • Continuity
  • PEAK hold
  • Low pass filter
  • Inrush current
  • Data hold
  • Audible visual indication
  • Low battery indication
  • Auto power off
  • Bluetooth
  • CAT III 600V


WHAT'S INCLUDED?

  • UT202BT Smart AC Clamp Meter
  • Test Leads
  • Batteries
  • Temperature Probe
  • Operating Manual
  • Box


SPECIFICATIONS

UT202BT Range Accuracy
DC voltage (V) 600V ±(0.5%+3)
AC voltage (V) 600V ±(0.8%+3)
AC current (A) 600A ±(2.5%+5)
Resistance (Ω) 100MΩ ±(0.8%+3)
Frequency (Hz) 40Hz~1000Hz ±(1.0%+5)
Capacitance (F) 100mF ±(4%+5)
Temperature (°C/°F) -40°C~1000°C/-40°F~1832°F ±5/±9


General Technical Data
Display count 9999
Jaw opening 28mm
Certificates CE, UKCA, cETLus
Category Ratings CAT III 600V
Power AAA 1.5V x 2
Low battery indication  <2.4V approximately
Auto power off Approximately 15 minutes
Dimensions 201.5 x 47 x 28mm
Weight 251g (Including batteries)
