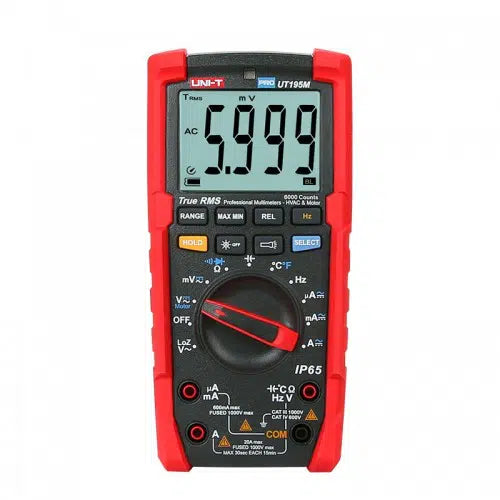

Uni-T Industrial True RMS Digital Multimeter with Temperature Probe - UT195M
Uni-T Industrial True RMS Digital Multimeter with Temperature Probe - UT195M
Uni-T Industrial True RMS Digital Multimeter with Temperature Probe - UT195M
  • SKU: UT195M

Uni-T Industrial True RMS Digital Multimeter with Temperature Probe - UT195M

$248.59
GST included.
    DESCRIPTION

    Uni-T Professional Industrial True RMS Digital Multimeter

    The UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.



    FEATURES

    • Large 6000-count LCD screen
    • True RMS
    • ACV 750V 5kHz bandwidth
    • Flashlight
    • Auto LCD backlight controlled by light sensor (can be turned off)
    • LoZ voltage test, for ghost voltage measurement
    • 20A current measurement (max 30 seconds)
    • 31 analog bar
    • IP65 rating
    • 2m drop proof
    • CAT III 1000V, CAT IV 600V



    WHAT'S INCLUDED

    • UT195M Industrial Digital Multimeter
    • Test Probes
    • Battery
    • Point Contact Temperature Probe
    • Operating Manual
    • Carrying Case



    SPECIFICATIONS

    UT195M Range Accuracy
    DC voltage (V) 1000V ±(0.5%+3)
    AC+DC 750V ±(0.7%+3)
    LoZ ACV 600V ±(2%+3)
    DC current (A) 20A ±(0.8%+3)
    AC current (A) 20A ±(1%+3)
    Resistance (Ω) 60MΩ ±(0.8%+2)
    Capacitance 60mF ±(3%+5)
    Frequency 60Hz~40MHz ±(0.1%+4)
    Temperature (°C) -40°C~1000°C ±(1.5%+4)
    Temperature (°F) -40°F~1832°F ±(2%+5)



    General Technical Data
    Display count 6000
    Display interface (LCD) Single
    Measurement sampling rate 3/s
    AC voltage frequency response 45~1kHz
    AC current frequency response 45~1kHz
    3-phase motor sequence test 600V
    Diode/Continuity test 3V
    Category Ratings CAT III 1000V, CAT IV 600V, IP65
    Certificates CE, UKCA, GS, cTUVus
    Power 9V battery
    Display 66mm x 51mm
    Dimensions 195mm x 95 mm x 58mm
    Weight 437g
