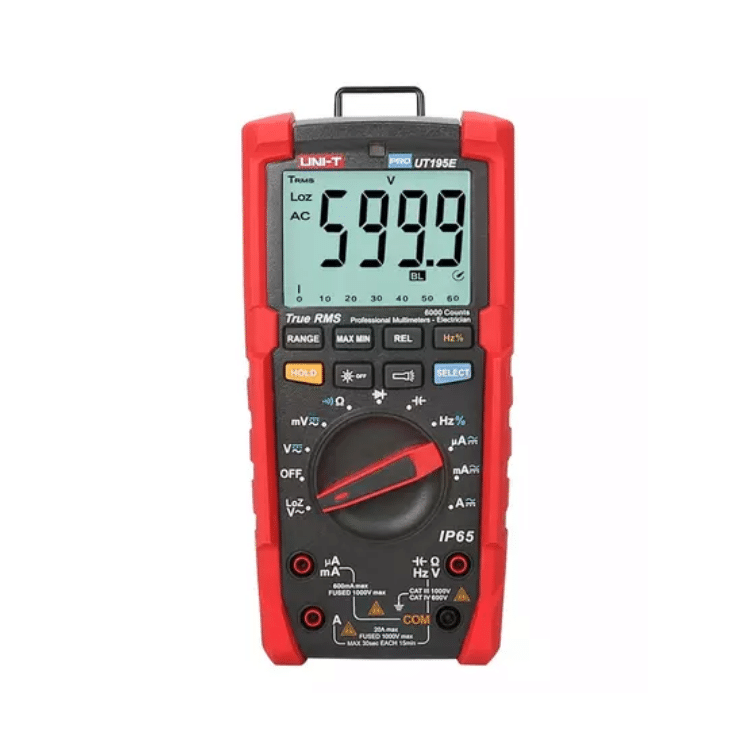

Uni-T Professional Digital Multimeter
The UT195 series are handheld industrial digital multimeters with IP65 and 2m drop proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
UT195E | Range | Accuracy |
DC voltage (V) | 1000V | ±(0.5%+3) |
AC+DC | 750V | ±(0.7%+3) |
LoZ ACV | 600V | ±(2%+3) |
DC current (A) | 20A | ±(0.8%+3) |
AC current (A) | 20A | ±(1%+3) |
Resistance (Ω) | 60MΩ | ±(0.8%+2) |
Capacitance | 60mF | ±(3%+5) |
Frequency | 60Hz~10MHz | ±(0.1%+4) |
Duty cycle | 0.1%~99.9% | ±(2%+5) |
General Technical Data | |
Display count | 6000 |
Display interface (LCD) | Single |
Measurement sampling rate | 3/s |
Analog bar sampling rate | 10/s |
Analog bar | 31 |
AC voltage frequency response | 45~400Hz |
AC current frequency response | 45~400Hz |
Diode/Continuity test | 3.5V |
Category Ratings | CAT III 1000V, CAT IV 600V, IP65 |
Certificates | CE, UKCA, GS, cTUVus |
Power | 9V battery |
Display | 66mm x 51mm |
Dimensions | 195mm x 95 mm x 58mm |
Weight | 437g |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
