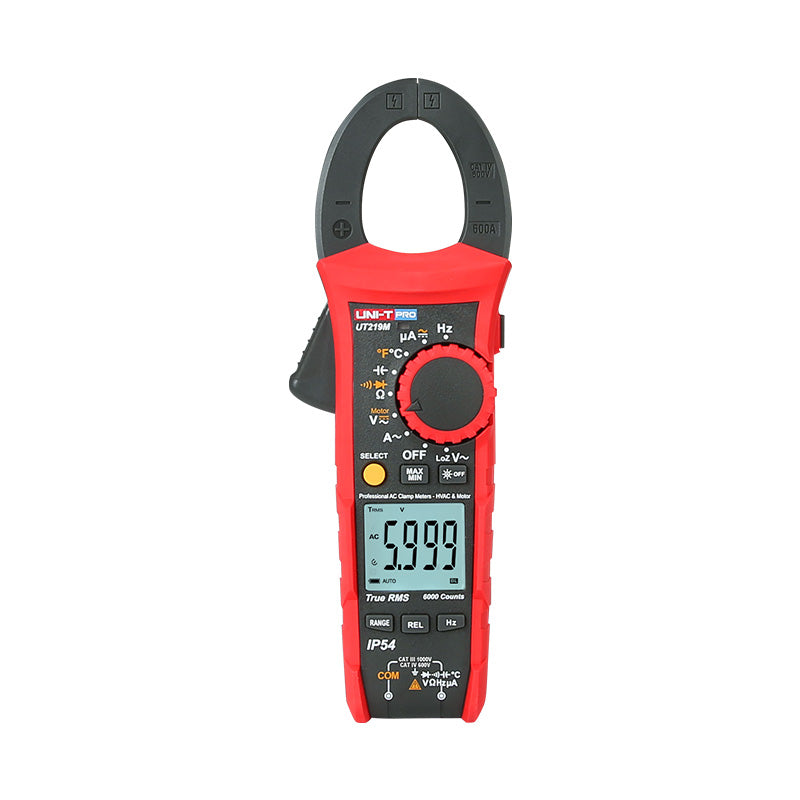

Uni-T Professional Clamp Meter - UT219M
Uni-T Professional Clamp Meter - UT219M
Uni-T Professional Clamp Meter - UT219M
  • SKU: UT219M

Uni-T Professional Clamp Meter - UT219M

$288.19
GST included.
DESCRIPTION

Uni-T Professional Clamp Meter

The UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments.

This series is suitable for professional electricians, HVAC/R and motor service technicians.


FEATURES

  • True RMS
  • Auto/manual range/ZERO mode
  • MAX/MIN
  • IP54/2m drop proof
  • Data hold/relative mode
  • Flashlight/auto backlight
  • Auto power off
  • Low battery indication
  • 3-phase motor sequence test
  • LoZ input for ghost voltage measurement
  • Temperature and μA measurements (flame sensor)


WHAT'S INCLUDED?

  • UT219M Professional Clamp Meter
  • Test Leads
  • Batteries
  • Point Contact Temperature Probe
  • Carrying Case
  • Operating Manual
  • Box


SPECIFICATIONS

UT219M Range Accuracy
AC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (Ω) 60MΩ ±(1%+3)
Capacitance (F) 60mF ±(4%+7)
Frequency (Hz) 600Hz~40MHz ±(0.1%+5)
Temperature (°C) -40~1000°C ±(2%+5°C)
Temperature (°F) -40~1832°F ±(2%+9°F)



General Technical Data
Display count 6000
Jaw opening 33mm
AC current frequency response 40Hz~400Hz
AC voltage frequency response 40Hz~400Hz
3-phase motor sequence test 600V
Diode test 3V
Measurement sampling rate 3 times/s
Display interface (LCD) Single
Certificates CE, UKCA, cETLus, GS
Category Ratings CAT III 1000V, CAT IV 600V
Power 1.5V battery (R03) x 3
Display 35 x 31mm
Dimensions 234.6 x 82 x 47mm
Weight 310g
