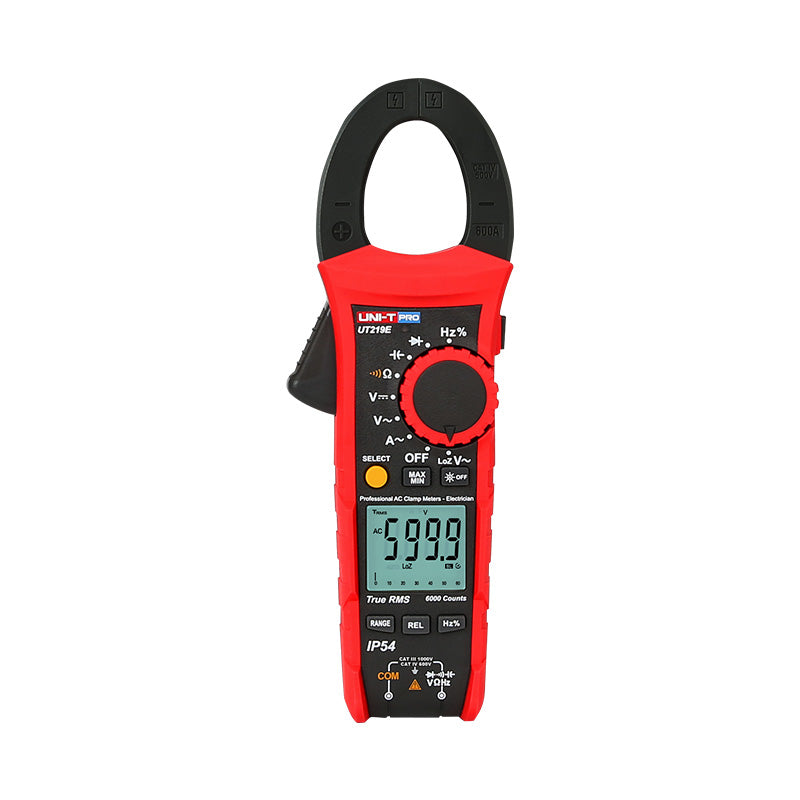

Uni-T Professional Clamp Meter
The UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments.
This series is suitable for professional electricians, HVAC/R and motor service technicians.
| UT219E | Range | Accuracy |
| AC current (A) | 600A | ±(1.8%+6) |
| AC voltage (V) | 1000V | ±(1%+6) |
| DC voltage (V) | 1000V | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) |
| Duty cycle | 0.1%~99.9% | ±(2.6%+7) |
| General Technical Data | |
| Display count | 6000 |
| Jaw opening | 33mm |
| AC current frequency response | 40Hz~400Hz |
| AC voltage frequency response | 40Hz~400Hz |
| Diode test | 12V |
| Measurement sampling rate | 3 times/s |
| Analog bar sampling rate | 10 times/s |
| Analog bar | 31 segment |
| Display interface (LCD) | Single |
| Certificates | CE, UKCA, cETLus, GS |
| Category Ratings | CAT III 1000V, CAT IV 600V |
| Power | 1.5V battery (R03) x 3 |
| Display | 35 x 31mm |
| Dimensions | 234.6 x 82 x 47mm |
| Weight | 310g |
