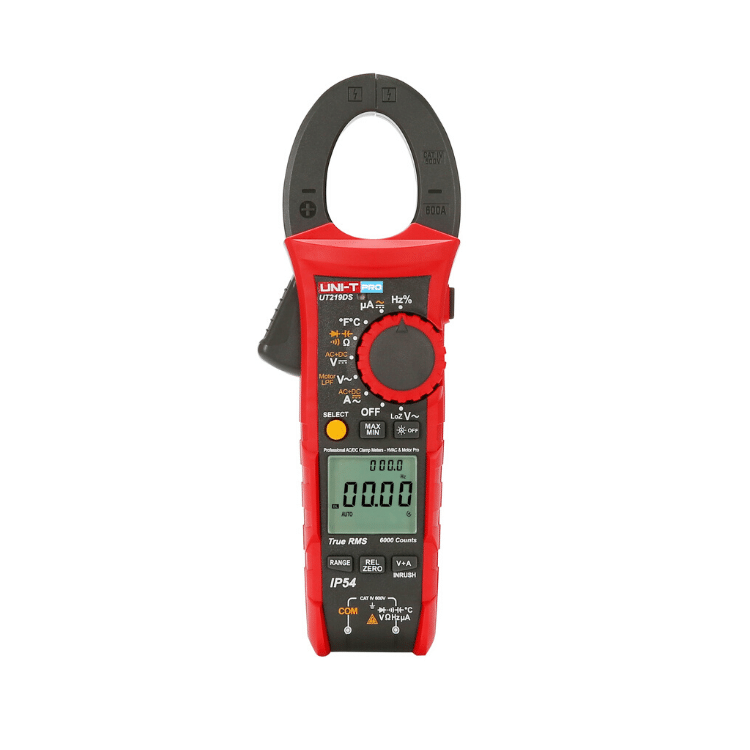

Uni-T Professional Clamp Meter - UT219DS
Uni-T Professional Clamp Meter - UT219DS
Uni-T Professional Clamp Meter - UT219DS
  • SKU: UT219DS

Uni-T Professional Clamp Meter - UT219DS

$345.39
GST included.
DESCRIPTION

Uni-T Professional Clamp Meter

The UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

The UT219DS features 5 times/s sampling rate measurement, dual LCD, and low pass filter.


FEATURES

  • Auto/manual range
  • ZERO mode
  • True RMS
  • Auto power off
  • MAX/MIN
  • IP54
  • 2m drop proof
  • 33mm jaw opening
  • Data hold/relative mode
  • Flashlight and auto backlight
  • Low battery indication
  • 3-phase motor sequence test
  • LoZ input for ghost voltage measurement
  • Temperature and μA measurements (flame sensor)
  • Inrush current/AC+DC voltage/V+A dual display


WHAT'S INCLUDED?

  • UT219DS Professional Clamp Meter
  • Test Leads
  • Batteries
  • Point Contact Temperature Probe
  • Carrying Case
  • Operating Manual
  • Box


SPECIFICATIONS

UT219DS Range Accuracy
AC current (A) 600A ±(1.8%+6)
DC current (A) 600A ±(1.8%+6)
AC voltage (V) 1000V ±(1%+6)
DC voltage (V) 1000V ±(0.6%+3)
LoZ ACV 600V ±(2.5%+6)
Resistance (Ω) 60MΩ ±(1%+3)
Capacitance (F) 60mF ±(4%+7)
Frequency (Hz) 600Hz~40MHz ±(0.1%+6)
Duty cycle 0.1%~99.9% ±(2.6%+7)
Temperature (°C) -40~1000°C ±(2%+5°C)
 Temperature (°F) -40~1832°F ±(2%+9°F)


General Technical Data
Display count 6000
Jaw opening 33mm
AC current frequency response 40Hz~400Hz
3-phase motor sequence test 600V
Low pass filter 1kHz, 3dB attenuation
Diode test 3V
Measurement sampling rate 5 times/s
Analog bar sampling rate 20 times/s
Analog bar 31 segment
Display interface (LCD) Dual
Certificates CE, UKCA, cETLus, GS
Category Ratings CAT III 1000V, CAT IV 600V
Power 1.5V battery (R03) x 3
Display 35 x 31mm
Dimensions 234.6 x 82 x 47mm
Weight 310g
