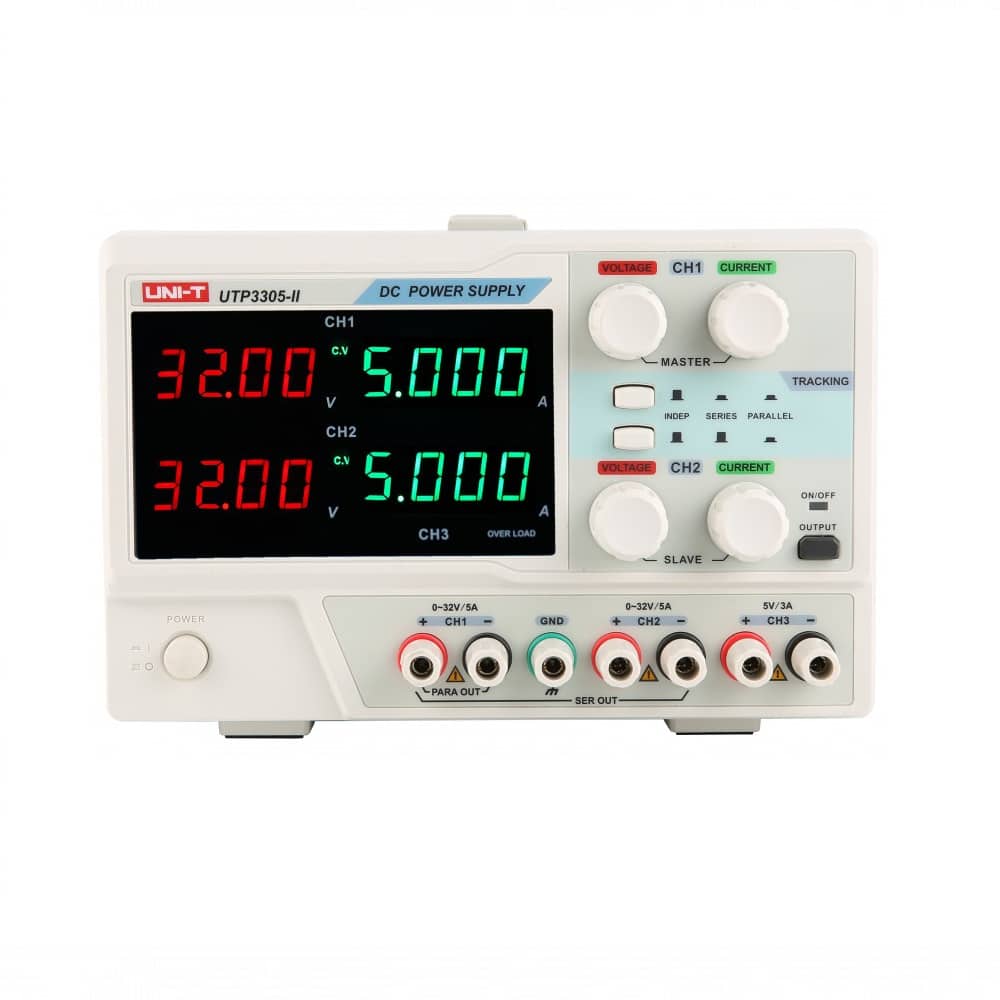

The Uni-T UTP3305-II is a linear high-performance, affordable lab power supply with one fixed channel and two fully adjustable channels. Over the range of 0-32V and 0-5A, the adjustable channels have a total power output of 160W each. The 3rd channel provides a 5V and 3A fixed output. The adjustable channels can be internally connected in series or parallel to produce a maximum voltage of 64V or a maximum current of 10A.
The power supply only has a "coarse" adjustment knob, which presents a disadvantage because it makes it more challenging to set the power supply precisely. Additionally, the 3rd channel is fixed, which means that it is not possible to set a different voltage, for example, 3.3V. The power supply also has one button to switch all channels on or off simultaneously, which makes it impossible to switch individual channels on or off.
|
UTP3305-II |
||
| Output voltage | CH1, CH2 | 0~32V |
| CH3 | 5V | |
| Output current | CH1, CH2 | 0~5A |
| CH3 | 3A | |
| Output power | 335W | |
| Load regulation | CV≤1×10-4 +3mV, CC≤2×10-4 +3mA | |
| Ripple and noise | CV≤1mVrms; CC≤3mArms | |
| Output regulation resolution | CV: 100mV (typical), CC: 10mA (typical) | |
| Tracking bias | 5×10-3 +10mV | |
| Reliability | MTBF(e): ≥2000hrs | |
| Display mode | 3-bit voltage and current dual display | |
| General Characteristics | ||
| Power | Input voltage: 115V AC/230V AC; Frequency: 47Hz~63Hz | |
| Product colour | White and grey | |
| Product net weight | 10kg | |
| Product size | 260mm x 170mm x 315mm | |
| Standard accessories | Power cord, output cables | |
| Standard individual packing | Carton box, English manual | |
