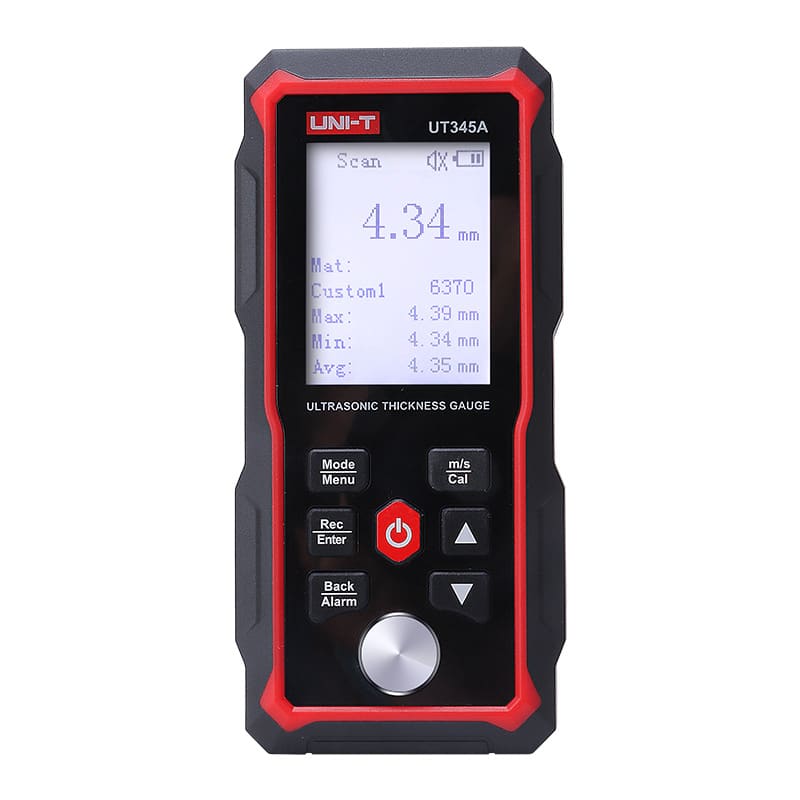

The UT345A Intelligent Ultrasonic Thickness Gauge offers a high-performance microprocessor and low power consumption. Its ultrasonic measurement principles enable it to measure the thickness and sound velocity of metal and other materials.
The UT345A is capable of detecting thinning of pressure vessels and piping due to corrosion, and accurately measuring plates and machined components. This intelligent ultrasonic thickness gauge is suitable for many industries, such as petroleum, chemical, aerospace, metallurgy, shipbuilding, and aviation.
| UT345A | Range |
| Display | 2.4" LCD |
| Measuring range | 1.00~300.00mm |
| Sound Velocity Range | (1000～9999) m/s |
| Accuracy | H<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm |
| Unit | mm/in |
| Lower limit of pipe measurement | Φ20×3mm (steel) |
| Charging Specification |
DC 5V 1A, Type-C interface |
| Operating time (full battery) | About 16hrs |
| Operating Temperature and Humidity |
0℃~40℃ 10%RH~80%RH |
| Storage Temperature and Humidity | -10℃~50℃ 10%RH~70%RH |
| Data Storage | 300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group |
| Main Functions | Single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration |
| General Technical Data | |
| Battery | Built-in lithium battery (3.7V 2000mAh) |
| Standard Accessories |
Type-C charging cable, Probe |
| Standard Individual Packaging | Box, English manual, Cloth case |
| Product Color |
Red and Grey |
| Dimensions | 140mm x 66mm x 28.5mm |
| Weight | 175g |
