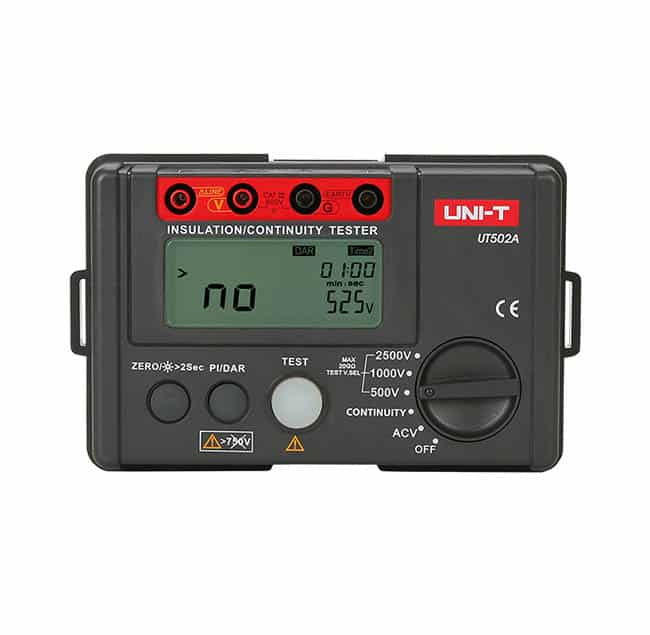

Uni-T Insulation Resistance Tester 2500V UT502A
Uni-T Insulation Resistance Tester 2500V UT502A
Uni-T Insulation Resistance Tester 2500V UT502A
Uni-T Insulation Resistance Tester 2500V UT502A
Uni-T Insulation Resistance Tester 2500V UT502A
Uni-T Insulation Resistance Tester 2500V UT502A
  • SKU: UT502A

Uni-T Insulation Resistance Tester 2500V UT502A

$250.79
GST included.
    DESCRIPTION

    UT502A Uni-T 500V-2500V Insulation Resistance Meter Ground Tester MegOhmmeter with DAR & PI Functions

    DOWNLOAD BROCHURE

    UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground.

    UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters and other electrical equipment can operate in a safe and accurate manner.

    UT502A is an excellent insulation resistance tester used for insulation resistance measurement for insulation materials and various kinds of electric equipment such as transformers, electric machines, cables, switches, and electrical appliances, an ideal tool for electric maintenance, testing, and inspection.

    FEATURES

    • PI and DAR (60s/15s and 60s/30s) measurement
    • Auto resistivity calculation
    • Meets IEC 61557-1:2007; 61557-2:2007; 61557-4:2007
    • 500-2500V
    • AC Voltage Measurement
    • 2000-count LCD display
    • Auto Range
    • Low battery indication
    • LCD backlight
    • Light alarm
    • Buzzer Alarm
    • High Voltage indication
    • Overload indication
    • Auto discharge
    • 10MΩ internal resistance test
    • Test Voltage secondary display
    • Low resistance returning to zero function to improve accuracy


    WHAT'S INCLUDED

    • UT502A Insulation Resistance Tester
    • Battery
    • Test Leads
    • Carry Case
    • Set Alligator clips
    • Gallus
    • Operational Manual
    • Temp Probe
    • 12-month warranty


    SPECIFICATIONS


    Range Insulation Resistance UT502A
    Insulation resistance (Ω) Test voltages 500V/1000V/2500V 0%~10%
    500V
    0MΩ~99.9MΩ ±(3%+5)
    100MΩ~5GΩ ±(5%+5)
    1000V
    0MΩ~99.9MΩ ±(3%+5)
    100MΩ~5GΩ ±(5%+5)
    2500V
    0MΩ~99.9MΩ ±(3%+5)
    100MΩ~9.9GΩ ±(5%+5)
    10GΩ~20GΩ ±(10%+5)
    Load current 50V (R=50kΩ) 1mA 0%~10%
    100V (R=100kΩ) 1mA 0%~10%
    250V (R=250kΩ) 1mA 0%~10%
    500V (R=500kΩ) 1mA 0%~10%
    1000V (R=1MΩ) 1mA 0%~10%
    2500V (R=1MΩ) 1mA 0%~10%
    Short-circuit current <2mA
    Low resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA) ±(2%+3)
    AC voltage (V) 30V~600V ±(2%+3)



    General Characteristics
    Power 1.5V battery (LR6) x 6
    Display 70.6mm x 34mm
    Product colour Red and grey
    Product net weight 500g
    Product size 150mm x 100mm x 71mm
