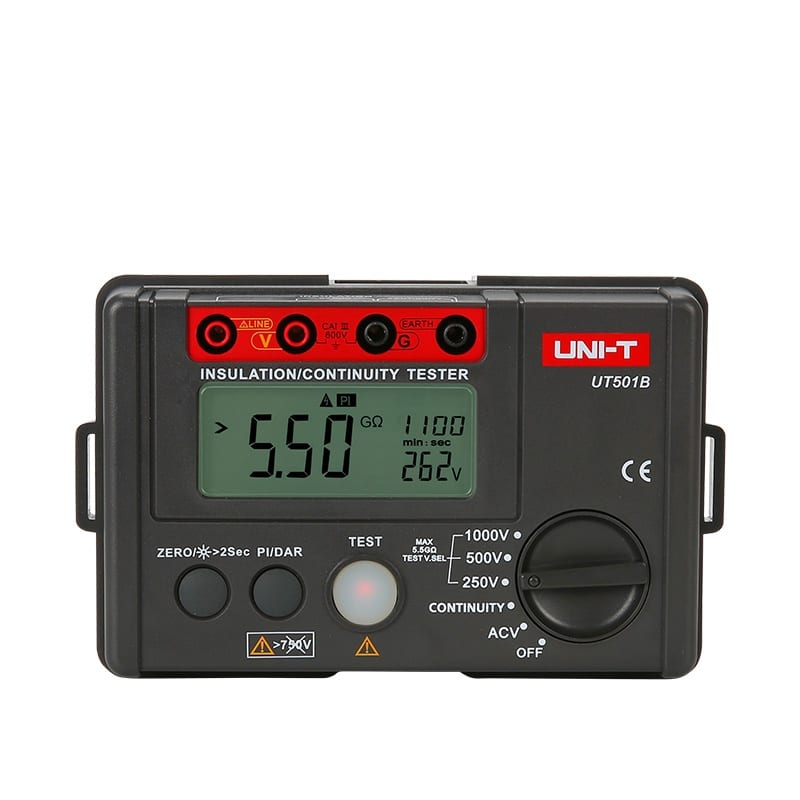

Uni-T Insulation Resistance Tester 1000V UT501B
Uni-T Insulation Resistance Tester 1000V UT501B
Uni-T Insulation Resistance Tester 1000V UT501B
Uni-T Insulation Resistance Tester 1000V UT501B
Uni-T Insulation Resistance Tester 1000V UT501B
Uni-T Insulation Resistance Tester 1000V UT501B
Sold Out
  • SKU: UT501B

Uni-T Insulation Resistance Tester 1000V UT501B

$161.69
GST included.
    DESCRIPTION

    UT501B Uni-T 250V-1000V Insulation Resistance Tester with DAR & PI Functions

    DOWNLOAD BROCHURE

    UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground.

    UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are ideal tools for ensuring transformers, generators, high-voltage motors, capacitors, cables, arresters and other electrical equipment can operate in a safe and accurate manner.

    UT501B is an excellent insulation resistance tester used for insulation resistance measurement for insulation materials and various kinds of electric equipment such as transformers, electric machines, cables, switches, and electrical appliances, an ideal tool for electric maintenance, testing, and inspection.

    FEATURES

    • PI and DAR (60s/15s and 60s/30s) measurement
    • Auto resistivity calculation
    • 250-1000V
    • AC Voltage Measurement
    • 2000-count LCD display
    • Auto Range
    • Low battery indication
    • LCD backlight
    • Light alarm
    • Buzzer Alarm
    • High Voltage indication
    • Overload indication
    • Auto discharge
    • 10MΩ internal resistance test
    • Test Voltage secondary display


    WHAT'S INCLUDED

    • UT501B Insulation Resistance Tester
    • Battery
    • Test Leads
    • Carry Case
    • Set Alligator clips
    • Gallus
    • Operational Manual
    • 12-month warranty



    SPECIFICATIONS


    Range Insulation Resistance UT501B
    Insulation resistance (Ω) Test voltages 250V/500V/1000V 0%~10%
    250V 0MΩ~99.9MΩ ±(3%+5)
    100MΩ~5GΩ ±(5%+5)
    500V 0MΩ~99.9MΩ ±(3%+5)
    100MΩ~5GΩ ±(5%+5)
    1000V 0MΩ~99.9MΩ ±(3%+5)
    100MΩ~5GΩ ±(5%+5)
    Load current 50V (R=50kΩ) 1mA 0%~10%
    100V (R=100kΩ) 1mA 0%~10%
    250V (R=250kΩ) 1mA 0%~10%
    500V (R=500kΩ) 1mA 0%~10%
    1000V (R=1MΩ) 1mA 0%~10%
    Short-circuit current <2mA
    Low resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA) ±(2%+3)
    AC voltage (V) 30V~600V ±(2%+3)



    General Characteristics
    Power 1.5V battery (LR6) x 6
    Display 70.6mm x 34mm
    Product colour Red and grey
    Product net weight 500g
    Product size 150mm x 100mm x 71mm
