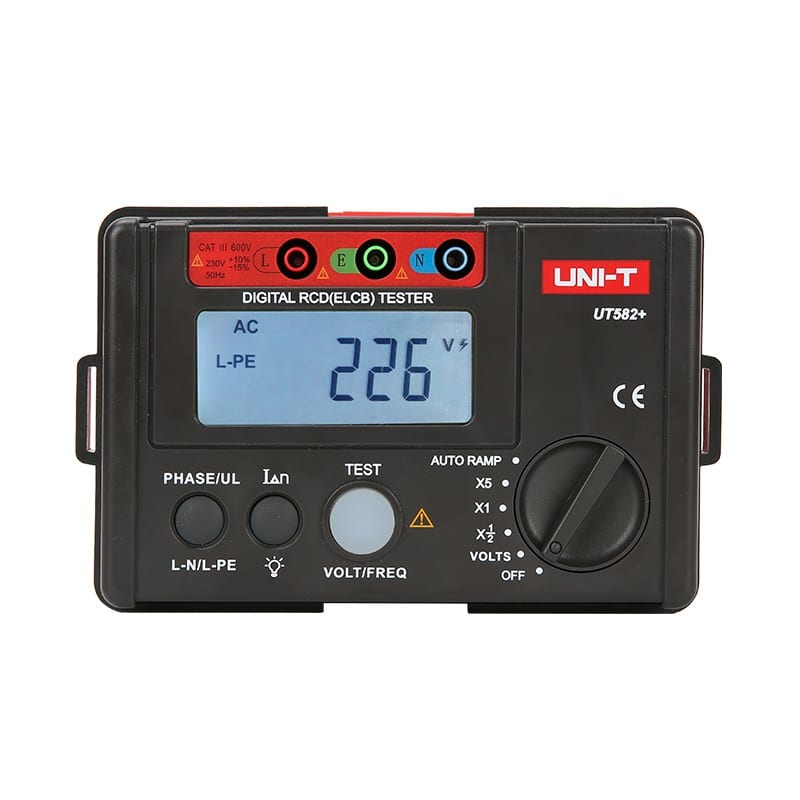

Uni-T Digital RCD Tester UT582+
Uni-T Digital RCD Tester UT582+
Uni-T Digital RCD Tester UT582+
Uni-T Digital RCD Tester UT582+
Sold Out
  • SKU: UT582+

Uni-T Digital RCD Tester UT582+

$225.49
GST included.
    DESCRIPTION

    UT582+ Uni-T Digital RCD Tester

    DOWNLOAD MANUAL

    DOWNLOAD BROCHURE

    UT582+ is mainly operated to detect whether the RCD in the circuit can be activated normally. It is only suitable for single-phase circuits with a supply voltage range of 195V~253V.

    FEATURES

    • Voltage measurement range is 30V~600V, 45Hz~65Hz
    • CATIII 600V
    • Auto Ramp
    • Auto Power off
    • Disconnect buzzer & misoperation buzzer
    • Over-load indicator
    • Simple robust design
    • Continuity to 2000Ω
    • RCD testing at 10mA, 30mA, 100mA, 300mA and 500mA
    • Insulation testing can be performed between 30~600V
    • Clever micro-processing controller to provide high accuracy and reliability

    WHAT'S INCLUDED

    • UT582+
    • Test line
    • Carrying bag
    • Elastic trap
    • Operational Manual
    • 12-month warranty



    SPECIFICATIONS

    UT582+ Range Accuracy
    RCD measurement Range setting Rated operating current Trip time
    x 1/2 10mA/20mA/30mA/100mA/300mA/500mA 2000ms -10%~0%
    x 1
    10mA/20mA/30mA/100mA/300mA 1000ms 0%~10%
    500mA 300ms 0%~10%
    x 5 10mA/20mA/30mA 40ms 0%~10%
    Auto Ramp 10mA/20mA/30mA/100mA/300mA/500mA 300ms -10%~10%
    Trip time accuracy ±(2%+2)
    Operating voltage (Freq.) 195V~253V
    Voltage measurement Voltage range 30~600V
    Frequency 45Hz~65Hz
    Resolution 1V
    Accuracy ±(3%+3)

    General Characteristics
    Power 1.5V battery (LR6) x 6
    Display 71mm x 34mm
    Product colour Red and grey
    Product net weight 400g
    Product size 160mm x 100mm x 71mm
