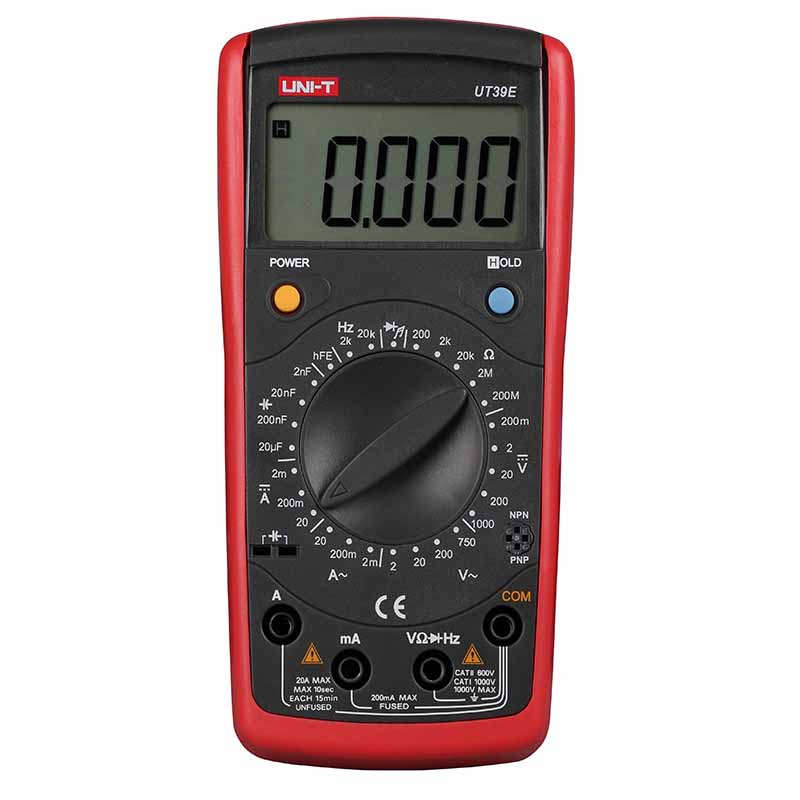

Uni-T Digital Multimeter - UT39E+
Uni-T Digital Multimeter - UT39E+
Uni-T Digital Multimeter - UT39E+
  • SKU: UT39E+

Uni-T Digital Multimeter - UT39E+

$92.39
GST included.
    DESCRIPTION

    Uni-T Digital Multimeter

    UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVAC-R maintenance with its temperature measurement feature.

    Designed according to CAT II 1000V/CAT III 600V safety standards.


    FEATURES

    • 1000V DC voltage measurement
    • 750V AC voltage measurement
    • 10A DC/AC current measurement
    • Resistance/Capacitance
    • Transistor hFE
    • Diode/Continuity test/Relative mode
    • Frequency response: 40Hz~400Hz
    • Conductance 100nS (UT39E+)
    • Data hold
    • Backlight/Auto power of
    • 2m drop test



    WHAT'S INCLUDED

    • UT39E+ Digital Multimeter
    • Test Leads
    • Battery
    • Temperature Probe
    • Rubber Case
    • Operating Manual
    • Box



    SPECIFICATIONS

    UT39E+ Range Accuracy
    DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.05%+3)
    AC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+10)
    DC current (A) 2000uA/20mA/200mA/2A/20A ±(0.5%+5)
    AC current (A) 2000uA/20mA/200mA/2A/20A ±(0.8%+10)
    Resistance (Ω) 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ ±(0.3%+2)
    Capacitance (F) 2000uF ±(4%+20)
    Frequency (Hz) 10Hz~2MHz ±(0.1%+3)
    Temperature°C  -40°C~1000°C ±(1%+5)
    Temperature°F  -40°F~1832°F ±(1.5%+5)
    Conductance (nS) 0.1~100nS ±(1%+3)



    General Technical Data
    Display count 20000
    Category Ratings CAT II 1000V, CAT III 600V
    Power 1.5V battery (R03) x 2
    Display 56.5 x 36mm
    Dimensions 175 x 83 x 53mm
    Weight 330g



    AUTHORISED RETAILER

    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



    SCROLL UP AND "ADD TO CART" TODAY.

    SHIPPING

    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
