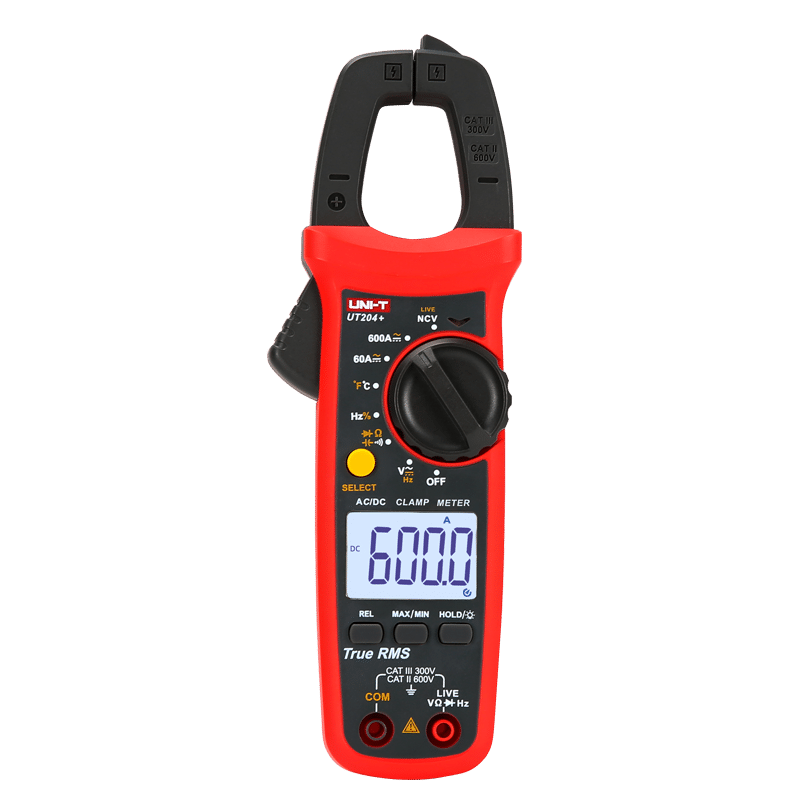

Uni-T Digital Clamp Meter - UT204+
Uni-T Digital Clamp Meter - UT204+
Uni-T Digital Clamp Meter - UT204+
  • SKU: UT204+

Uni-T Digital Clamp Meter - UT204+

$122.09
GST included.
DESCRIPTION

Uni-T 400A/600A Digital Clamp Meter

The UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.

The UT204+ Digital Clamp Meter can be used for Industrial electricity, Residential Electricity, Air conditioning and Automobile.



FEATURES

  • True RMS
  • LCD backlight
  • Large screen and display digits
  • 60mF large capacitance measurement
  • Neutral/live wire test
  • Auto range
  • NCV
  • Continuity test
  • Diode
  • Relative mode
  • Zero mode
  • Data hold
  • MAX/MIN
  • Low battery indication
  • Auto power off


WHAT'S INCLUDED?

  • UT204+ Digital Clamp Meter
  • Test Leads
  • Batteries
  • Thermocouple
  • Operating Manual
  • Box


SPECIFICATIONS

UT204+ Range Accuracy
AC current (A) 600A ±(2.5%+5)
DC current (A) 600A ±(2.5%+5)
AC voltage (V) 600V ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~60kHz ±(0.5%+2)
DC voltage (A) 600V ±(0.5%+2)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature (°C) -40°C~1000°C ±(1.5%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)


General Technical Data
Display count 6000
Jaw opening 28mm
Certificates CE, UKCA, cETLus
Category Ratings CAT II 600V, CAT III 300V
Power 1.5V battery (R03) x 2
Display 37mm x 25mm
Dimensions 215mm x 63mm x 36mm
Weight 235g
