Uni-T Digital Clamp Meter - UT202+
Uni-T Digital Clamp Meter - UT202+
Uni-T Digital Clamp Meter - UT202+
  • SKU: UT202+

Uni-T Digital Clamp Meter - UT202+

$72.59
GST included.
DESCRIPTION

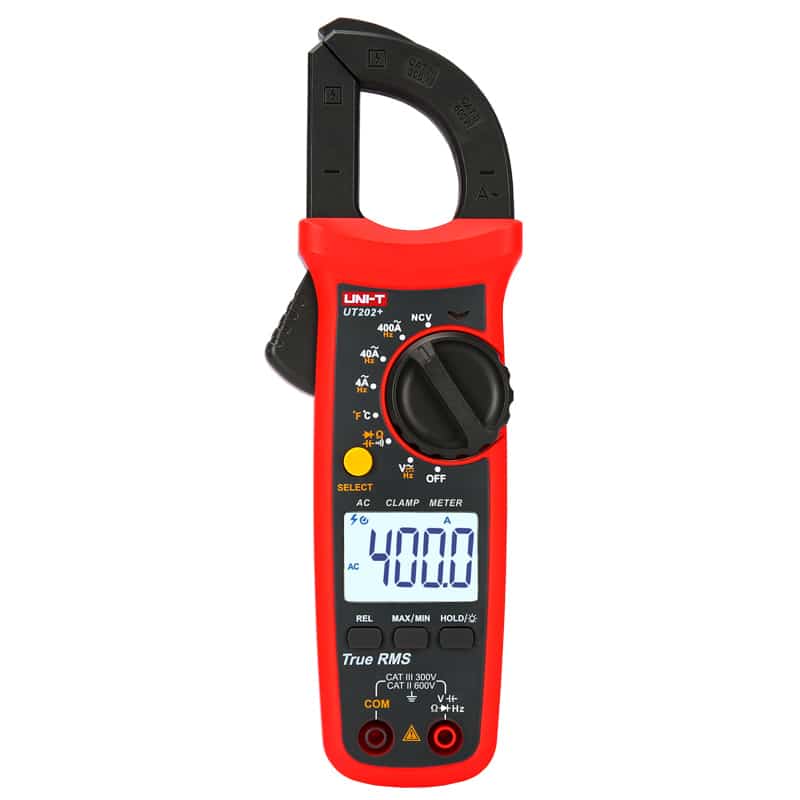

Uni-T Digital Clamp Meter

The UT200+ series digital clamp meters are designed according to EN61010-2010 CAT II 600V/CAT III 300V, featuring overload protection, high reliability, high safety and high accuracy. These meters can be used to measure high-voltage frequency, temperature, AC/DC current, etc.


FEATURES

  • True RMS
  • LCD backlight
  • Large screen and display digits
  • Auto range
  • NCV
  • Continuity test
  • Diode
  • MAX/MIN
  • Relative mode
  • Temperature measurement
  • Resistance and capacitance
  • Data hold
  • Low battery indication
  • Auto power off


WHAT'S INCLUDED?

  • UT202+ Digital Clamp Meter
  • Test Leads
  • Batteries
  • Thermocouple
  • Operating Manual
  • Box


SPECIFICATIONS

 UT202+ Range Accuracy
AC current (A) 400A ±(2%+10)
AC current frequency (Hz) 50Hz~100Hz ±(1%+5)
AC voltage (V) 600V ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~10kHz ±(1%+5)
DC voltage (A) 600V ±(0.5%+2)
Resistance (Ω) 40MΩ ±(0.8%+2)
Capacitance (F) 4mF ±(4%+5)
Temperature (°C) -40°C~1000°C ±(1.5%+5)



General Technical Data
Display count 4000
Jaw opening 28mm
Certificates CE, UKCA, cETLus
Category Ratings CAT II 600V, CAT III 300V
Power 1.5V battery (R03) x 2
Display 37 x 25mm
Dimensions 215 x 63 x 36mm
Weight 248g



AUTHORISED RETAILER

Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.



SCROLL UP AND "ADD TO CART" TODAY.
