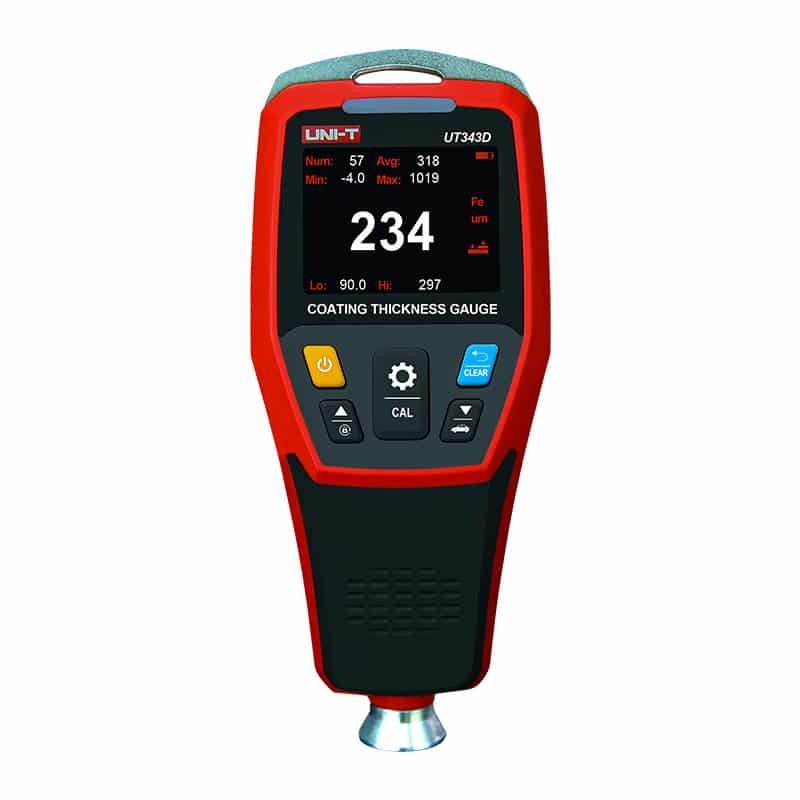

Uni-T Coating Thickness Gauge UT343D
Uni-T Coating Thickness Gauge UT343D
Uni-T Coating Thickness Gauge UT343D
  • SKU: UT343D

Uni-T Coating Thickness Gauge UT343D

$177.09
GST included.
    DESCRIPTION

    UT343D Uni-T Coating Thickness Gauge

    DOWNLOAD MANUAL

    DOWNLOAD BROCHURE

    The UT343D Coating Thickness Gauge can accurately measure coating thickness on both ferrous and non-ferrous materials. This device is built with a special quick test feature that allows users to set thickness ranges and quickly determine whether the coating being tested falls within the preset range using a 3-colour LED and audio alarm, greatly enhancing work efficiency.

    The UT343D display is auto-rotatable. Up to 500 sets of data can be stored on this CE-certified device for later analysis using the included PC analytical software.

    FEATURES

    • Auto rotatable screen
    • LCD brightness control
    • Unit conversion
    • Audio alarm
    • PC analysis software
    • LED alarm
    • Quick test mode
    • Low battery indication
    • USB communication
    • Auto Power Off

    WHAT'S INCLUDED

    • 1 x UT343D Coating Thickness Gauge
    • 12-month warranty

    SPECIFICATIONS

    UT343D Range
    Measuring range 0~1250um
    Accuracy ±(3%H+1)um
    Resolution 0.1um (0~99.9um); 1um (100~1250um)
    Measurement method Single/Continuous
    Measurement mode Max/Min/Avg
    Metal type Ferrous/ non-ferrous


    Features
    Display type 2.0-inches TFT LCD (320 x 240 pixels)
    LCD brightness control
    Auto rotatable screen
    Unit conversion
    Audio alarm
    LED alarm
    PC analysis software
    USB communication
    Quick test mode
    Data storage 500 groups
    Auto power off
    Low battery indication


    General Technical Data
    Display 48mm x 36mm
    Power 3V battery (R03) x 2
    Standard Accessories
    Micro USB interface cable, standard piece, batteries, cloth bag
    Product Color
    Red and Grey
    Dimensions 153.5mm x 64.5mm x 41mm
    Weight 175g
