Uni-T Battery Tester UT3550
Uni-T Battery Tester UT3550
Uni-T Battery Tester UT3550
Sold Out
  • SKU: UT3550

Uni-T Battery Tester UT3550

$2,546.49
GST included.
    DESCRIPTION

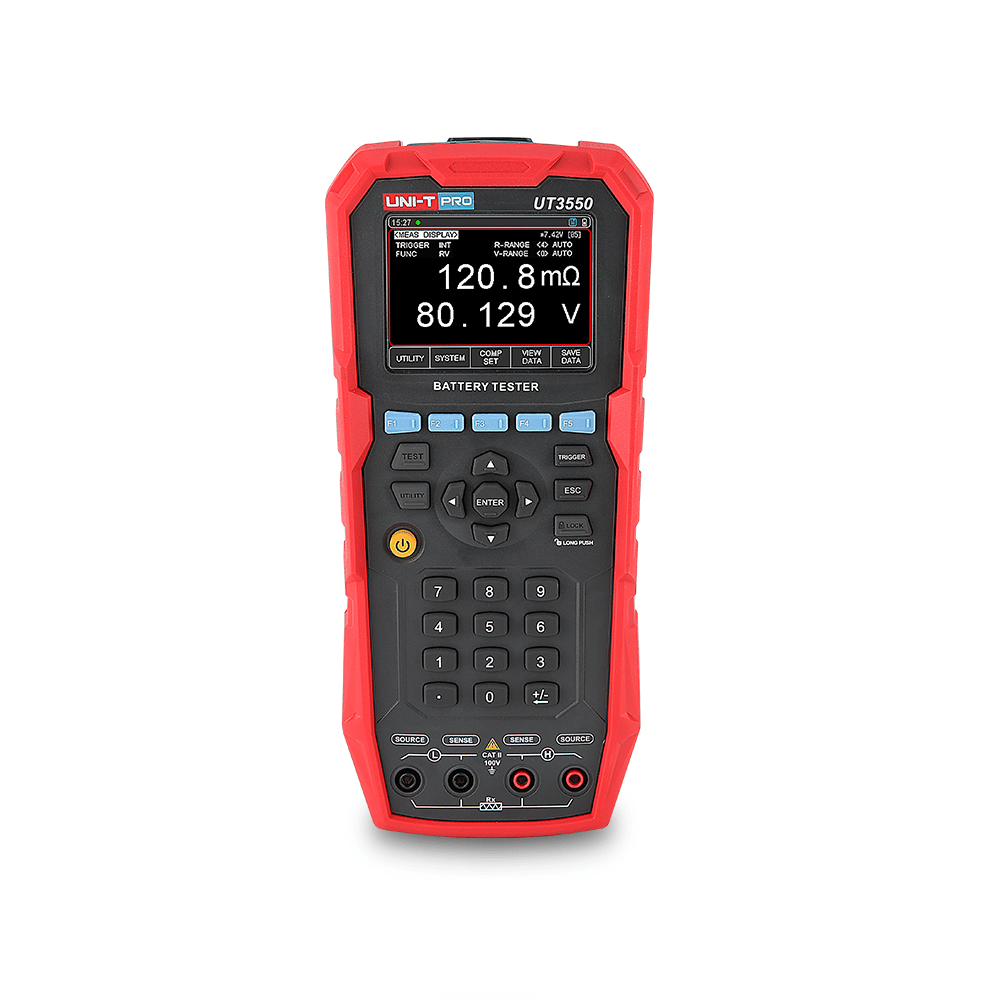

    Uni-T UT3550 Handheld Battery Tester

    DOWNLOAD DATASHEET

    DOWNLOAD MANUAL

    UT3550 is a hand-held battery tester with automatic real-time detection. It has the portability of handheld instruments and the superior performance of Bench instruments. It is a measuring instrument with high accuracy and high resolution. Equipped with USB type C interface for remote control and data acquisition and analysis.

    UT3550 has three comparison modes: direct reading value, percentage and absolute value which help you with quick battery screening.

    FEATURES

    • Mainly used in the quality inspection of various batteries and can measure almost all types of batteries
    • Support SCPI protocol: Protection grade IP65
    • Can set the interval time to automatically record the measurement data
    • Up to 500 sets of data can be saved
    • Exportable CSV format documents to USB flash disk to facilitate data analysis
    • 3.5- inch LCD main display: 0.96-inch auxiliary display screen
    • Lithium battery power supply (2000mAh)
    • UPS can be measured directly online
    • USB data storage and screenshot-saving function



    WHAT'S INCLUDED

    • UT3550
    • Power Adaptor
    • Soft Carrying Pouch
    • USB communication cable Type C
    • Magnetic Strap
    • UT3550 Kelvin Clip wire
    • UT3550 Test pen-crown probe
    • 3-year warranty
    • Operating Manual



    SPECIFICATIONS

    High-accuracy Resistance 0.5%/ voltage 0.057o
    Resistance Range 0.001m Q ~ 30.00 Q
    Voltage Range 0.0001V – 100.000V
    Resolution: Resistance O.OOImQ voltage: 0.1mV
    Comparison mode SEQ, PER, ABS
    Charging Time <5 hour
    Range Mode Auto and Manual (resistance and voltage)
    Connectivity Type C, USB Device
    Size Portable
    Display 3.5” TFTLCD & 0.96” OLED
