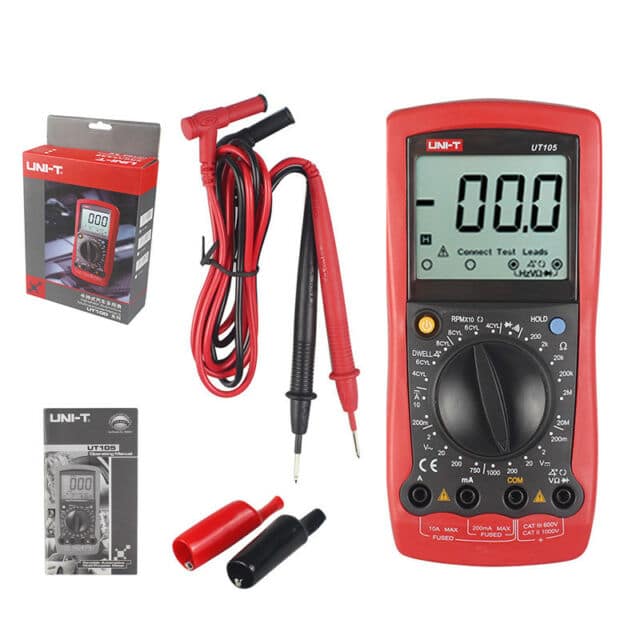

Uni-T Automotive Digital Multimeter
The Uni-T UT105 is specially designed for automotive diagnostic. It combines RPM, DWELL, and other multimeter functions. The series is useful for automobile maintenance personnel to diagnose traditional vehicles and hybrid electric vehicles. Its applications include working on a fuse, switch, solenoid, relay, charging system, fuel system, engine sensing plus many more special functions.
| UT105 | Range | Accuracy |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) |
| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+5) |
| DC current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+5) |
| General Technical Data | |
| Display count | 2000 |
| Input impedance for DCV | Around 10MΩ |
| Category ratings | CAT II 1000V, CAT III 600V |
| Power | 9V battery (6F22) |
| Display | 60 x 54mm |
| Dimensions | 179 x 88 x 39mm |
| Weight | 351g (including holster) |
Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.
