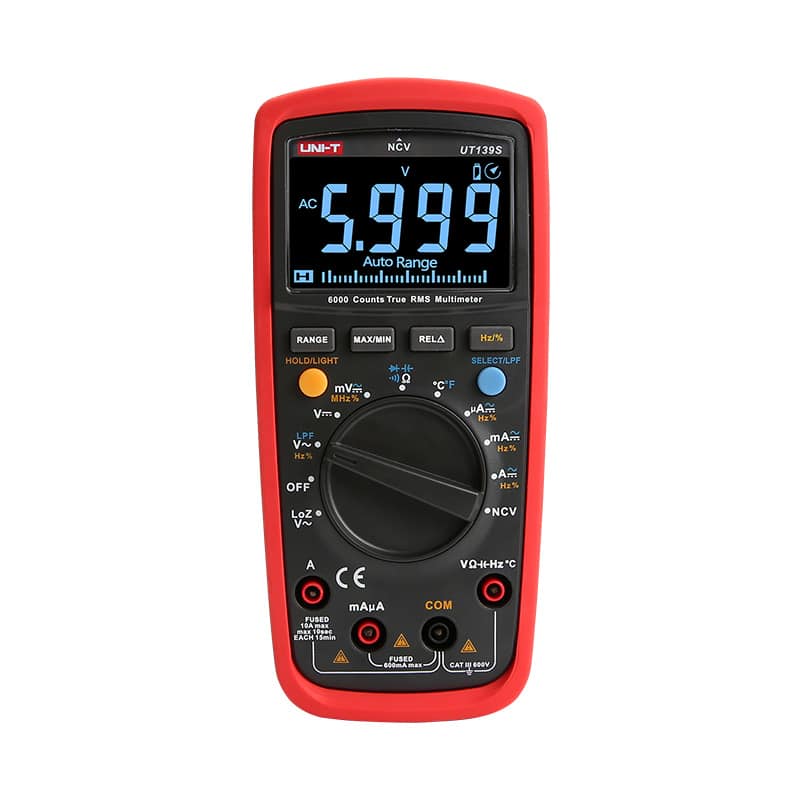

Uni-T 600V True RMS Digital Multimeter UT139S
Uni-T 600V True RMS Digital Multimeter UT139S
Uni-T 600V True RMS Digital Multimeter UT139S
Uni-T 600V True RMS Digital Multimeter UT139S
  • SKU: UT139S

Uni-T 600V True RMS Digital Multimeter UT139S

$126.49
GST included.
    DESCRIPTION

    Uni-T UT139S 600V True RMS Digital Multimeter

    DOWNLOAD MANUAL

    DOWNLOAD BROCHURE

    The new UT139S models include special features such as LoZ (ACV) for measuring ‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with a black EBTN display and it is a perfect meter for working in dark environments.

    UT139S is CAT III 600V digital multimeter specifically designed for electricians and its NCV feature can effectively check the electrical status by measuring EM field intensity.


    FEATURES

    • True RMS
    • Data hold/backlight/auto power off
    • Max/Min/Relative mode
    • USB communication
    • Full Range Protection (600V)
    • Auto/manual ranges selectable
    • NCV (Continuity buzzer)

    APPLICATION

    • Frequency measurement
    • NCV measurement
    • Resistance measurement
    • Voltage measurement


    WHAT'S INCLUDED

    • 1 x UT139S True RMS Digital Multimeter
    • Battery
    • Test Leads
    • Temperature Probe
    • Operating Manual
    • 12-month warranty


    SPECIFICATIONS

    UT139S Range Accuracy
    AC voltage (V) 600V ±(0.8%+3)
    DC voltage (V) 600V ±(0.5%+2)
    AC current (A) 10A
    ±(1%+3)
    DC current (A) 10A ±(0.7%+2)
    Resistance (Ω) 60MΩ ±(0.8%+2)
    Capacitance (F) 99mF ±(4%+5)
    Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
    Duty cycle (%) 0.1%~99.9%
    Temperature °C  -40°C~1000°C ±(1%+4)
    Temperature °F  -40°F~1832°F ±(1.5%+5)


    General Technical Data
    Display count 6000
    Bandwidth (Hz) 45Hz~400Hz
    Analog bar
    Standard Accessories Batteries, Test Leads, Temperature Probe
    Power 1.5V battery (R6) x 2
    Product Colour Red and Grey
    Display
    58mm x 36mm
    Dimensions 170 x 80 x 48mm
    Weight 345g
