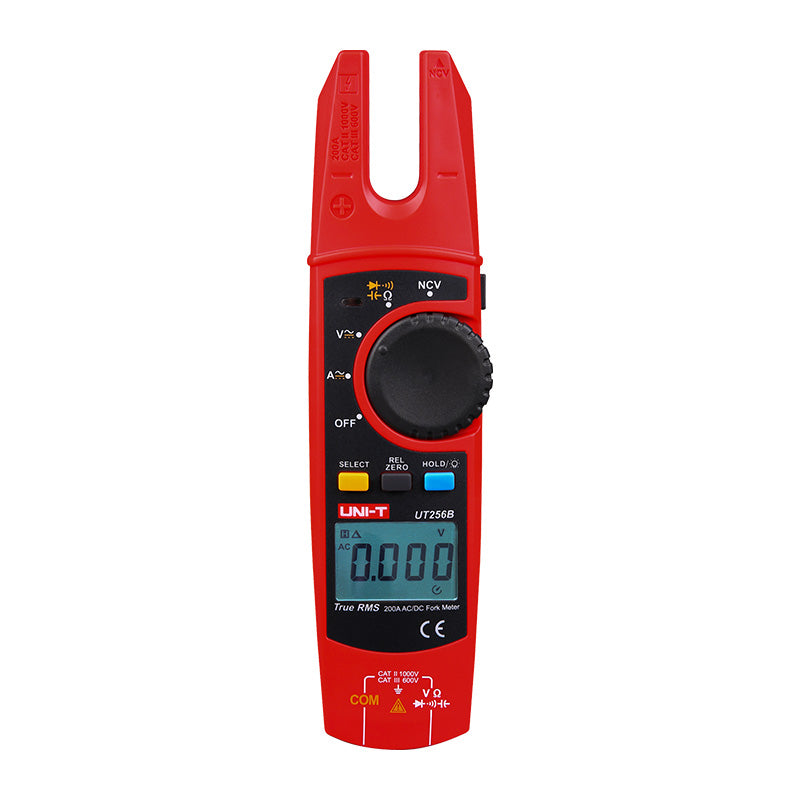

The UT256 series are highly reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire of interest inside the opening of the ‘fork’ to the labelled mark. With no mechanical parts, this meter bares no risk of any type of mechanical failure.
The UT256B is a heavy-duty Fork Meter designed for professional residential, commercial and industrial applications.
UT256B | Range | Accuracy |
AC current (A) | 200A | ±(2.5%+5) |
DC current (A) | 200A | ±(2.5%+5) |
AC voltage (V) | 750V | ±(1.2%+3) |
DC voltage (V) | 1000V | ±(0.8%+3) |
Resistance (Ω) | 60MΩ | ±(1%+2) |
Capacitance (F) | 60mF | ±(4%+20) |
General Technical Data | |
Display count | 6000 |
Diode test | About 3V |
Certificates | CE, UKCA, cETLus |
Category Ratings | CAT II 1000V, CAT III 600V |
Power | 1.5V battery (LR6) x 2 |
Display | 36.5 x 24mm |
Dimensions | 210 x 53 x 35mm |
Weight | 248g |
