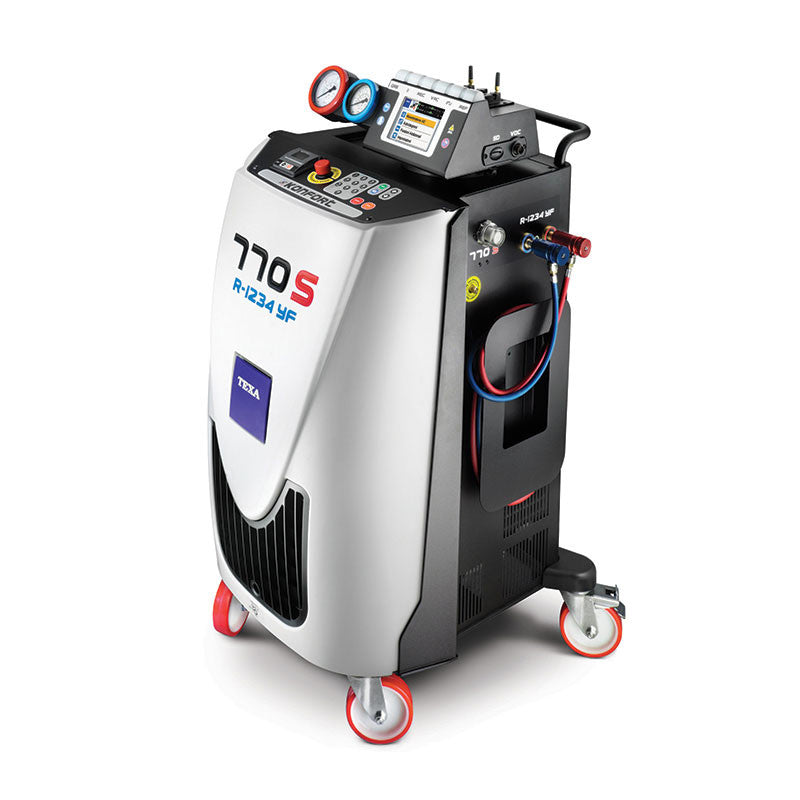

TEXA Konfort 770S Recharging Station R134a and R1234yf

DOWNLOAD BROCHURE

Contact Us Now For Estimated Delivery Time - This item is not always in stock

Cooltools HVAC-R offers a FLAT RATE Australia Wide delivery for orders up to 5KG. Get in touch for a custom shipping quote.

Approved and recommended by german vehicle manufacturers.

FEATURES AND CAPABILITIES

IMPECCABLE PRECISION

The KONFORT 770S implements exclusive technological solutions to adhere to the specific German vehicle manufacturer requirements, with regards to safety and reliability under the European legislation for the new refrigerant.

The KONFORT 770S recharge station has been included in the prestigious ADI Design Index for 2012 as an example of excellent Italian design. The index is published annually by ADI, the Italian Association for Industrial Design.

The KONFORT 770S is equipped with an automatic leak control system combined with EN837 Class 1 certified gauges of impeccable precision.

SPECIFIC SERIES SOLUTIONS

• REFILLABLE HERMETICALLY SEALED OIL BOTTLES - Standard oil bottles are not hermetically sealed, they always contain a percentage of air. The water molecules in the air bind with the oil and contaminate it. TEXA’s solution was
  to create special containers which prevent the oil from becoming contaminated by air and humidity, which have been patented. These special bottles can be re-used thanks to a special system which removes the air from the bottle.
• HYDRAULIC SYSTEM FLUSHING - In order to guarantee safety and efficiency, it is important that each type of oil and refrigerant are not cross contaminated. TEXA have therefore developed a special automatic flushing function to clean the internal circuits of the service station.
• AUTOMATIC BOTTLE IDENTIFICATION - With the introduction of new vehicles, particularly electric and hybrid vehicles, new oils have been introduced for these applications. The correct oil type must be used relating to the air conditioning system to be serviced (eg PAG or POE). It is potentially damaging and dangerous to inject non-compatible oils into the system, so the operator must take care to avoid mistakes. TEXA has developed an automatic oil bottle recognition system which, by comparing the data contained in the vehicles database, signals if the incorrect bottle is in use.
• TILT SENSOR SYSTEM FOR ACCURATE READINGS - The scales used for refrigerant measurement can be inaccurate when used on uneven surfaces. TEXA’s patented TILT SENSOR SYSTEM analyses the scales horizontal positioning and alerts the operator to the fact that the readings may be inaccurate.
• FAN PROTECTION SYSTEM - The new R1234yf refrigerant has been classified as being ‘highly flammable’ and this must be acknowledged by the operator. The KONFORT 700 series adopts a high efficiency redundant fan system to eliminate any possible refrigerant build up within the unit.
• AUTOMATIC LEAK DETECTION MANAGEMENT - The KONFORT 700 range charging stations automatically carry out a double check for possible gas leaks from the tanks. All safety related operations take place automatically in order to eliminate errors.
• THERMAL PRINTER - It is possible to install a very useful thermal printer, to generate at any time an accurate report of all the operations performed.
• REFRIGERANT IDENTIFIER KIT - TEXA’s refrigerant identification system is based on NDIR (Non-Dispersive Infrared) technology and has been developed on the basis of a decade of experience in the production of exhaust gas analysis systems that are recognised as the best the market can offer in terms of accuracy and build quality.

  TEXA is the only European company and the second worldwide to develop and produce a refrigerant identification kit especially for air conditioning recharge stations.

  Special care has been taken to ensure that test results cannot be influenced by the surrounding environment, e.g. by the airborne hydrocarbon vapours and exhaust gases so often present in the garage environment.

  Development of the system took over a year. Particular attention was paid to the algorithms that identify refrigerant types R134a and R1234yf. The TEXA system not only identifies these two refrigerants but ensures their purity too.
• EMERGENCY LOCK BUTTON - As far as safety is concerned, as soon as the service station is opened for inspection; a micro-switch system automatically locks electrical components.

  An emergency stop button has been added to the control panel which turns the machine off stopping all processes in progress. The entire upper console can be turned in order to be viewed, without having to move the whole service station (not-available in the German market).

  The components used such as the innovative recovery group have exceptional features and they guarantee refrigerant recovery of over 95%.

OPERATING SOFTWARE

TEXA operating software conforms to the strictest requirements of accuracy and precision.

Any possible faults or messages are displayed via detailed error messages. TEXA software manages the recovery and recharge processes, in order to guarantee precession that was previously unknown.

In particular, the automatic procedures assist the operator with repairs on highly sophisticated systems, such as those fitted on the new hybrid vehicles. All models have a removable SD card which allows communication with a Windows PC to update vehicle make and model database, check and certify all services and potential software updates.

TECHNICAL SPECIFICATIONS

• R1234yf compatible
• High visibility colour TFT display with interface Graphics
• Rotating CL1-display gauge group (excluding Germany)
• 20 Kg tank
• Dual stage vacuum pump
• High efficiency refrigerant recovery (over 95%)
• Charging accuracy +/- 15gr
• Hermetically sealed oil bottles (patented)
• Automatic high precision oil injection
• Automatic bottle recognition (patented)
• Automatic precise oil measurement check (patented)
• Scale lock system
• Thermal printer
• Automatic service management
• Multi-lingual software coverage
• Service hose length compensation
• Automatic maintenance alarm
• Simplified service
• Automatic non condensable management
• Built-in refrigerant identifier
• Functionality: Customized service/My database

OPTIONAL: Vehicle flushing kit, VDC kit, Climate efficiency kit

WARRANTY

1 Year Manufacturer Warranty

To conform with Warranty requirements, TEXA UV dye must be used with all Konforts.

You will void your warranty if other brands are used as it will damage the machine.
