Testo Velcro Pipe Wrap Temperature Probe TC Type K - 0628 0020

Testo

0628 0020

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

Use this temperature probe with thermocouple (TC) sensor to carry out surface temperature measurements on pipes with a pipe diameter of up to 120 mm. For example, you can use it to determine the surface temperature of heating pipes.

  • Measuring range: -50 to +120 °C
  • TC Type K temperature probe with 1.5 m cable
  • With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm

This Type K, Class 1 thermocouple probe has a standardized accuracy of ±1.5 °C.

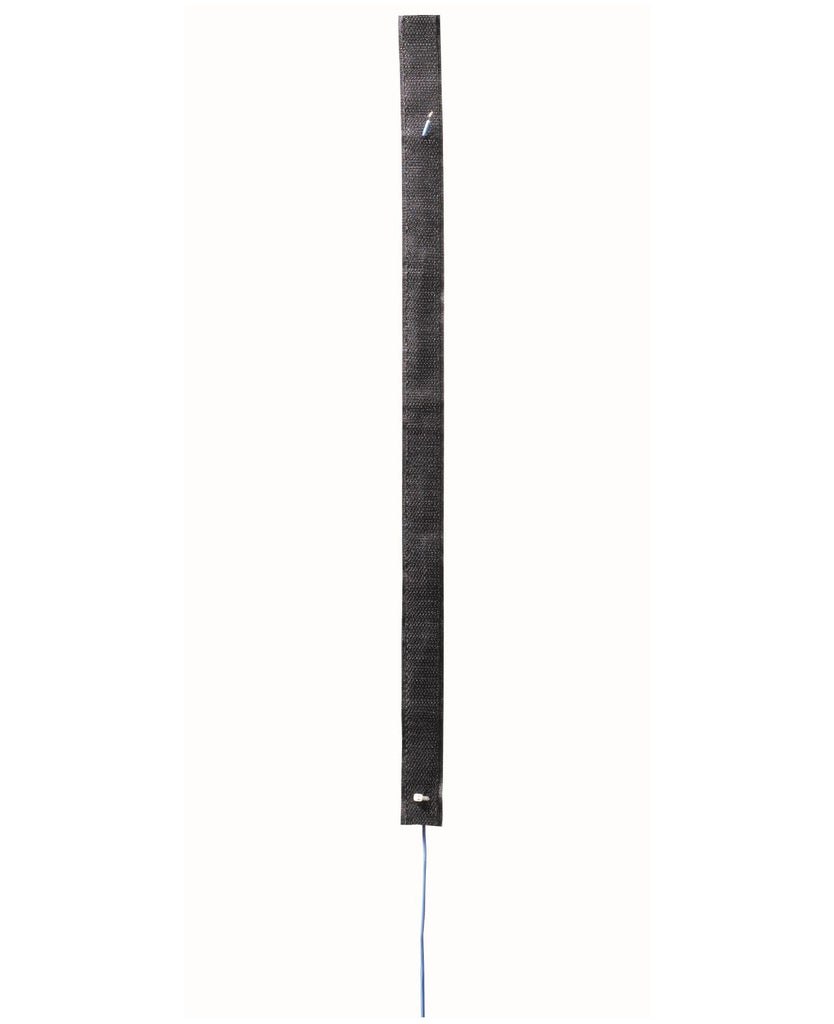

The TC sensor for measuring temperature is attached to a 20 mm wide, 395 mm long strip. The Velcro fastener on this strip enables the surface probe to be attached to the pipe quickly and easily.

For optimum heat transfer between the surface probe and the measurement object, we recommend using our optional silicone thermal conduction paste.

The perfect probe for any application
Don't see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifically according to your personal requirements.

SPECIFICATIONS

  • Measuring range: -50 to +120 °C (max)
  • Accuracy: Class 1 ¹⁾
  • Reaction time: 90 s
  • Interface: plug thermocouple
  • Length probe shaft: 395mm
  • Diameter probe shaft tip: 20 mm

1) According to standard EN 60584-2, the accuracy of Class 1 refers to -40 to +1000 °C (Type K)
