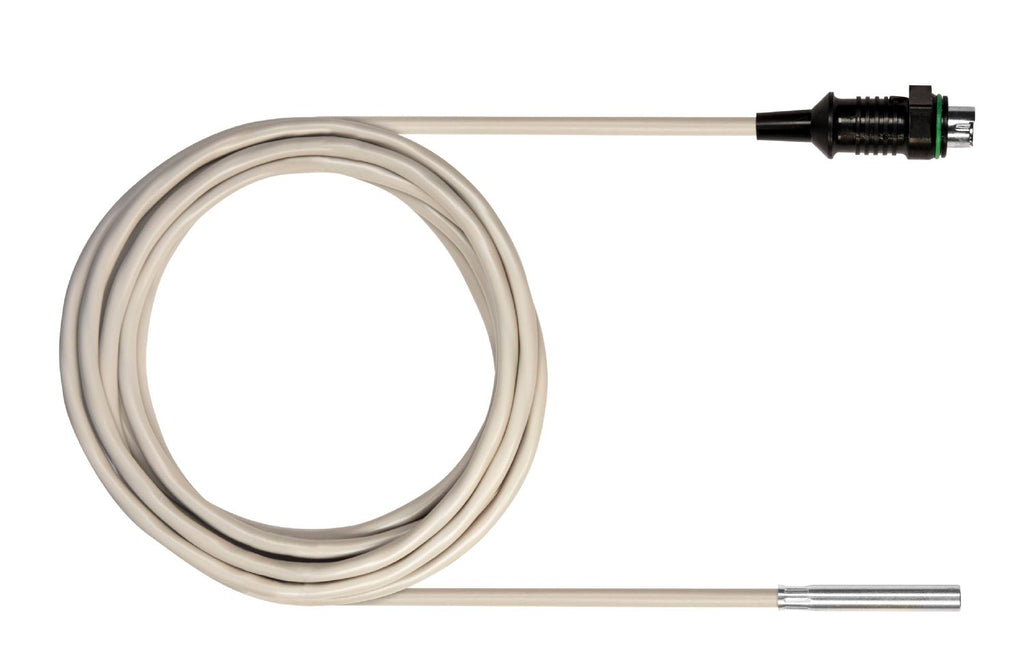

Testo Temperature Probe with Aluminium Sleeve - 0628 7503
  • SKU: 0628 7503

Testo Temperature Probe with Aluminium Sleeve - 0628 7503

$103.49
GST included.
    DESCRIPTION

    The temperature probe with aluminium sleeve and flat tip is suitable for measurements in liquids and pastes as well as for air temperature measurements. Thanks to its NTC sensor element, the probe provides precise temperature measurements with an accuracy of up to ±0.2 °C.

    • Measuring range: -30 to +90 °C
    • NTC temperature probe with 2.4 m cable, can be installed at the measuring location for long-term measurements
    • Temperature measurement in liquids, pastes and in air

    The temperature probe is waterproof in accordance with protection class IP 65. Consequently, measurements can be taken outdoors for example.

    For long-term measurements, you can mount the temperature probe permanently at the measuring location. To do this you only need a clamp or PG gland (not included in delivery).

    This probe's response time t99 (time it takes for the probe to register 99% of the jump in temperature) of 190 seconds refers to measurements in moving water at +60 °C. This response time is extended when, for example, measurements are taken in still liquid, pastes or air.*

    *For air temperature measurements, the response time is about 40 – 60 times higher than the indicated value measured in water. If you should require a rather sluggish temperature probe to measure air temperature, this probe is particularly suitable because it does not take brief temperature peaks into account at all, or only to a very small degree, when measuring temperature. For example, if you are planning to use this probe to measure air temperature in the refrigerator, briefly opening the refrigerator door would not take into account the temperature fluctuation which results from mixing the warm room temperature with the refrigerator temperature.

    Note: If you need an air temperature probe with a fast response time, your best choice would be the exceptionally fast temperature probe 0602 0493 which has a large measuring range.

    SPECIFICATIONS

    • Measuring range: -30 to +90 °C
    • Accuracy:
        • ±0.2 °C (0 to +70 °C)
        • ±0.5 °C (Remaining Range)
    • Reaction time: t₉₀ = 12 s
    • Length probe shaft: 40 mm
    • Fixed cable: Yes
    • Cable length: 2.4 m
    • Diameter probe shaft: 6 mm
    • Protection class: IP65

    AUTHORISED RETAILER

    Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty.

    SCROLL UP AND "ADD TO CART" TODAY.


    SHIPPING

    Australia-wide Flat Rate shipping of $15.00 per order.
    This includes multiple products up to 5kg only.

    Additional cost applies for orders over 5kg. Contact us for quotation.
