Testo Smart Probes Ultimate HVAC/R Set - 0563 0002 31

Testo

0563 0002 31

Estimated Delivery Between and .

American express Apple pay Diners club Discover Google pay Master Paypal Shopify pay Visa

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE
FAQ

This is the ultimate kit for all-round engineers in the field of heating, air conditioning, refrigeration and ventilation enabling the measurement of temperature, humidity, flow and pressure. In conjunction with a smartphone or tablet, the refrigeration kit is ideally suited to servicing and troubleshooting on air conditioning, refrigeration and heating systems, as well as their installation.

  • All Smart Probes for temperature, pressure, humidity and flow in one kit
  • For all measurements involving heating, air-conditioning, refrigeration and ventilation systems
  • Display of measurement data progression as a graph or table
  • Transmission and analysis of measurement data via testo Smart Probes App

All the measuring instruments can be quickly and easily commissioned and attached directly at the pressure connection or the temperature measuring point. They also make it considerably easier to work on measuring points that are a long distance apart, thanks to wireless connection to a smartphone or tablet and a range of up to 100 m (testo 549i, testo 115i, testo 605i).

Automatically calculate numerous parameters such as superheating/subcooling, target superheat, cooling/heating power, differential temperature or mould indication. Measurement data reports can be emailed directly as a PDF or Excel file.

FEATURES AND CAPABILITIES

testo 115i - Clamp thermometer

  • Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
  • Fast identification of temperature changes by graphic progression display
  • Measurement data analyzed and sent via testo Smart Probes App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

testo 549i - High-pressure gauge

  • Measurement of high and low pressure
  • Low refrigerant loss – since no hoses are required for measurements
  • Measurement data displayed in the form of a graph or table, and sent via testo Smart Probes App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

testo 605i - Thermohygrometer

  • Measurement of air humidity and temperature in rooms and ducts
  • Automatic calculation of the dew point and wet bulb temperature via testo Smart Probes App
  • Measurement data analyzed and sent via testo Smart Probes App
  • Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

testo 905 i - thermometer

  • Measuring range -50 to +150 °C
  • Rapid detection of temperature change via graphical progress display
  • Measurement data analyzed and sent via testo Smart Tools App

testo 805 i - infrared thermometer

  • Non-contact infrared measurement of surface temperature
  • Easy selection of emission level via stored materials list
  • Highly visible marking of the measuring spot thanks to 8-point laser
  • Image documentation with readings and measuring spot marking

testo 405 i - thermal anemometer

  • For measuring volume flow, air velocity and temperature
  • Simple configuration of the dimension and geometry of the duct cross-section for determining the volume flow
  • Convenient for working in ventilation ducts thanks to its telescopic tube, which can be extended up to 400 mm
  • Really convenient to operate thanks to the testo Smart Tools App (e.g. easy viewing of readings, measurement data trend, log function)

testo 410 i - vane anemometer

  • Measurement of air velocity, volume flow and temperature
  • Display of the volume flow of multiple outlets in order to adjust systems
  • Easy parametrization of the outlet (dimension and geometry)
  • Convenient viewing of readings on a smartphone/tablet with the testo Smart Tools App

testo 510 i - differential pressure measuring instrument

  • Measurement of gas flow and static pressure
  • Measurement menu for pressure drop test including alerts
  • Simple configuration and determination of volume flow with Pitot tube
  • Magnetic holder for easy attachment

testo HVAC softcase

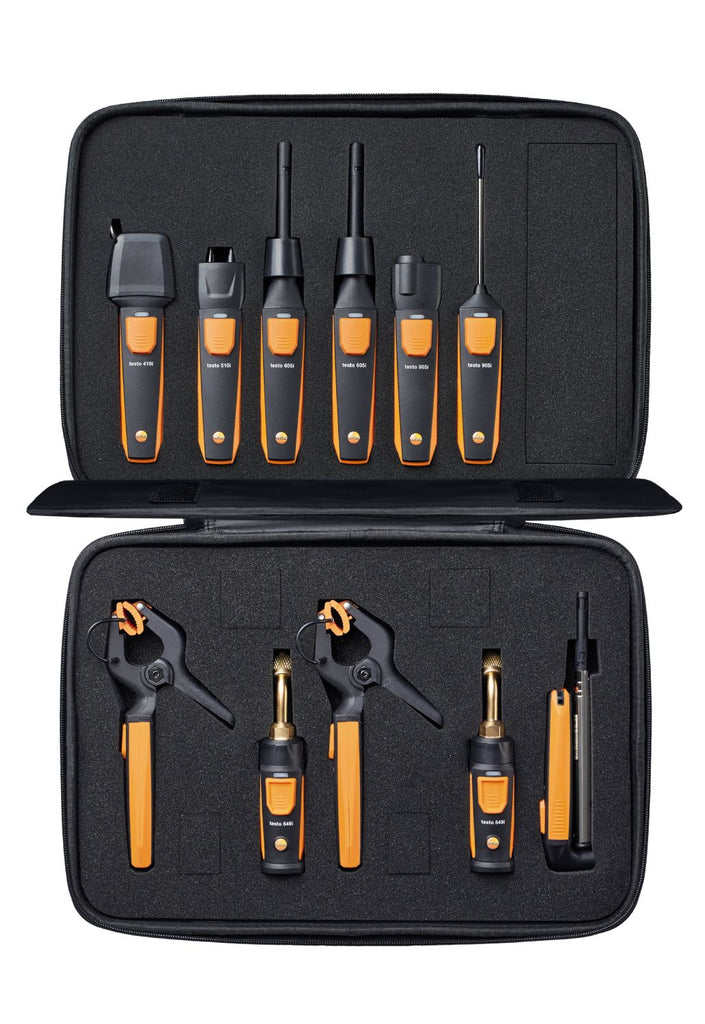

  • Practical storage case for all Smart Probes: testo 115i (2x), testo 405i, testo 410i, testo 510i, testo 549 (2x), testo 605i (2x), testo 805i and testo 905i
  • Outside: impact-resistant, flexible hard shell with zip
  • Inside: protective foam insert with precise-fit compartments for each measuring instrument
  • Compact dimensions: 400 x 290 x 80 mm

System requirements:

  • iOS 8.3 or later
  • Android 4.3 or later
  • Bluetooth 4.0

WHAT'S INCLUDED?

  • 2 x testo 115i clamp thermometers operated via smartphone, including batteries and calibration protocol (0560 2115 02)
  • 2 x testo 549i high-pressure gauges operated via smartphone, including batteries and calibration protocol (0560 2549 02)
  • 2 x testo 605i thermohygrometers operated via smartphone, including batteries and calibration protocol (0560 2605 02)
  • 1 x testo 905i thermometer operated via smartphone, including batteries and calibration protocol (0560 1905)
  • 1 x testo 805i infrared thermometer operated via smartphone, including batteries and calibration protocol (0560 1805)
  • 1 x testo 405i thermal anemometer operated via smartphone, including batteries and calibration protocol (0560 1405)
  • 1 x testo 410i vane anemometer operated via smartphone, including batteries and calibration protocol (0560 1410)
  • 1 x testo 510i differential pressure measuring instrument operated via smartphone, including hose kit (Ø 4 mm and 5 mm) with adapter, batteries and calibration protocol (0560 1510)
  • 1 x testo HVAC softcase, including foam insert (0516 0283)

SPECIFICATIONS

  testo 115i testo 405i testo 410i testo 510i
Sensor type NTC Hot wire / NTC Vane / NTC Pressure
Measuring range -40 to +150 °C 0 to 30 m/s
-20 to +60 °C
0.4 to 30 m/s
-20 to +60 °C
-150 to 150 hPa
Accuracy ±1 digit ±1.3 °C
(-20 to +85 °C)
±(0.1 m/s + 5% of m.v.) (0 to 2 m/s)
±(0.3 m/s + 5% of m.v.) (2 to 15 m/s)
±0.5 °C
±(0.2 m/s + 2% of m.v.)
(0.4 to 20 m/s)
±0.5 °C
±0.05 hPa (0 to 1 hPa)
±(0.2 hPa + 1.5% of m.v.)
(1 to 150 hPa)
Resolution 0.1 °C 0.01 m/s / 0.1 °C 0.1 m/s / 0.1 °C 0.01 hPa
Compatibility requires iOS 8.3 or newer, Android 4.3 or newer, requires mobile terminal device with Bluetooth® 4.0
Bluetooth® range up to 100 m up to 15 m up to 15 m up to 15 m
Dimensions 183 x 90 x 30 mm 200 x 30 x 41 mm 154 x 43 x 21 mm 148 x 36 x 23 mm
  testo 549i testo 605i testo 805i testo 905i
Sensor type Pressure Humidity – capacitive / NTC Infrared Type K (NiCr-Ni)
Measuring range -1 to 60 bar 0 to 100 %RH
-20 to +60 °C
-30 to +250 °C -50 to +150 °C
Accuracy ±1 digit 0.5% of full scale value ±3.0 %RH (10 to 35 %RH)
±2.0 %RH (35 to 65 %RH)
±3.0 %RH (65 to 90 %RH)
±5 %RH (< 10 %RH or > 90 %RH)
±0.8 °C (-20 to 0 °C)
±0.5 °C (0 to +60 °C
±1.5 °C or ±1.5% of m.v.
(0 to +250 °C)
±2.0 °C (-20 to -0.1 °C)
±2.5 °C (-30 to -20.1 °C
±1 °C
Resolution 0.01 bar 0.1 %RH / 0.1 °C 0.1 °C 0.1 °C
Compatibility requires iOS 8.3 or newer, Android 4.3 or newer, requires mobile terminal device with Bluetooth® 4.0
Bluetooth® range up to 100 m up to 100 m up to 15 m up to 15 m
Dimensions 150 x 32 x 31 mm 218 x 30 x 25 mm 140 x 36 x 25 mm 222 x 30 x 24 mm
