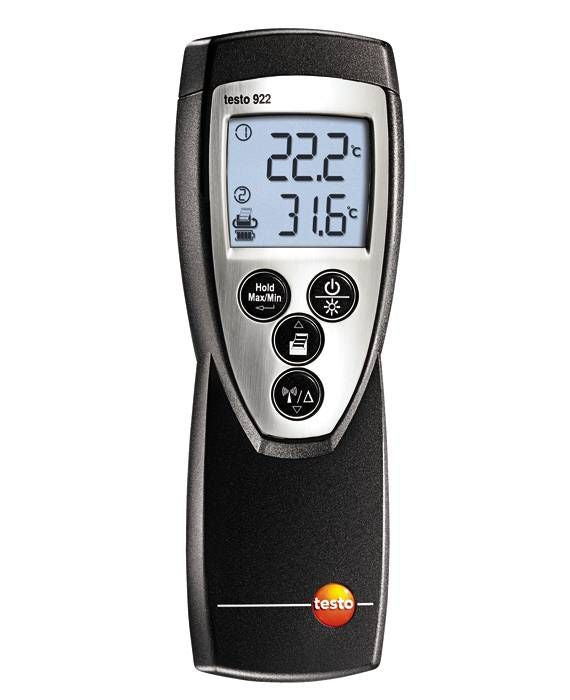

Testo 922 Two Channel Type K Thermometer - 0560 9221
Testo 922 Two Channel Type K Thermometer - 0560 9221
Testo 922 Two Channel Type K Thermometer - 0560 9221
  • SKU: 0560 9221

Testo 922 Two Channel Type K Thermometer - 0560 9221

$281.35
GST included.
DESCRIPTION

PRODUCT DESCRIPTION

DOWNLOAD BROCHURE

Testo 922 is a temperature measuring instrument which is especially suited to applications in the HVAC field. The measuring instrument records the temperature values of two connected thermocouple probes, and shows these simultaneously together with the differential temperature in the display.

  • Wide measuring range from -50 °C to 1 000 °C
  • Temperature measurements and temperature difference display
  • Connecting points for two type K temperature sensors; wireless connectivity for a third temperature sensor
  • Wide range of optional sensors

Temperature measurements; measurements with up to three temperature sensors; direct display of temperature differences: the Testo 922 digital temperature meter is ideal for professional use in the fields of heating, plumbing and air conditioning.

With the TopSafe, and the probe plugged in, the measuring instrument has protection class IP65.



FEATURES AND CAPABILITIES

  • Ideally suited for applications in the HVAC field
  • 2-channel temperature measuring instrument with optional wireless probes
  • Display of differential temperature
  • TopSafe, the indestructible protective cover, protects from dirt and impact
  • Continuous display of min./max. values
  • Hold-button for freezing measurement values



APPLICATION

Flow and return temperature measurement on heating systems

To ensure the heating system is set correctly and efficiently, the flow and return temperatures must be measured. If it is not set correctly, either the requisite heat will not be provided or too much energy will be injected into an overly high flow temperature, i.e. the output from the energy is poor.

Testo 922 advantages:

  • Quick and easy measurement of the differential temperature with pipe wrap probes
  • Also optionally available with radio probes for wireless measurement
  • Display of minimum and maximum measuring values
  • Immediate printing of measuring values via optional wireless printer



WHAT'S INCLUDED?

  • Testo 922 digital temperature meter
  • Protocol certificate
  • Batteries

Note: This meter uses a sensor to start up. Check the Brochure for available probes and accessories.



SPECIFICATIONS

Temperature - TC Type K (NiCr-Ni)
Measuring range -50 to +1000 °C
Accuracy ±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)
±(0.7 °C + 0.5 % of mv) (Remaining Range)
Resolution 0.1 °C (-50 to +199.9 °C)
1 °C (Remaining Range)



General technical data
Operating temperature -20 to +50 °C
Storage temperature -40 to +70 °C
Product-/housing material ABS
Number of channels 2-channel
Battery type 9V block battery, 6F22
Battery life 200 h (connected probe, backlight off);
45 h (radio mode, backlight off);
68 h (connected probe, backlight always on);
33 h (radio mode, backlight always on)
Dimensions 182 x 64 x 40 mm
Weight 171 g



AUTHORISED RETAILER

Buy with 100% confidence knowing your purchase is backed by the full Manufacturer's Warranty. Please register your product with provided warranty card.

SCROLL UP AND "ADD TO CART" TODAY.
